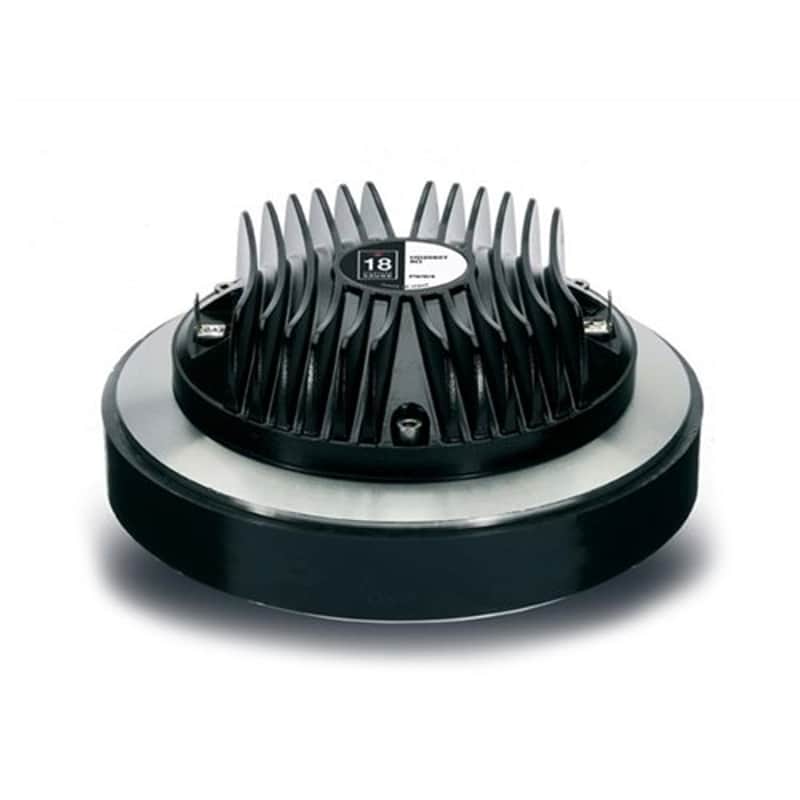

18 Sound ND2080-8 2" Neodymium High Frequency 200 Watt Compression Driver

Overview

The 18 Sound ND2080-8 is a state-of-the-art 2" neodymium high frequency compression driver, designed to deliver superior sound quality and performance for professional audio applications. Featuring a pure titanium diaphragm and a robust neodymium magnet, this driver is engineered for high quality sound systems, including concert, theater, and sound reinforcement setups. Its exceptional thermal exchange capabilities and advanced design ensure reliability and outstanding audio fidelity across a broad frequency range.

Features

• High sensitivity of 110 dB for efficient sound projection
• Broad frequency response from 500 Hz to 20 kHz for detailed sound reproduction
• 100W AES power rating, with the ability to handle up to 200W on a continuous program basis
• 8 ohms impedance, making it compatible with a wide range of audio systems
• Lightweight neodymium magnet for efficient performance
• Pure titanium diaphragm assembly for superior sound quality

Specifications

• Throat Diameter: 50 mm (2.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 8.0 Ω at 3500 Hz
• Power Handling: 100 W (AES); 200 W (Continuous Program)
• Sensitivity: 110 dB
• Frequency Range: 500 Hz – 20 kHz
• Recommended Crossover: 800 Hz, 12 dB/Oct. or higher slope high-pass filter
• Voice Coil Diameter: 75 mm (3.0 in)
• Winding Material: Aluminum
• Diaphragm Material: Titanium
• Flux Density: 2.2 T
• Magnet Material: Neodymium
• Overall Diameter: 131 mm (5.16 in)
• Depth: 99 mm (3.9 in)
• Net Weight: 3.4 kg (7.5 lb)
• Shipping Weight: 3.5 kg (7.72 lb)
