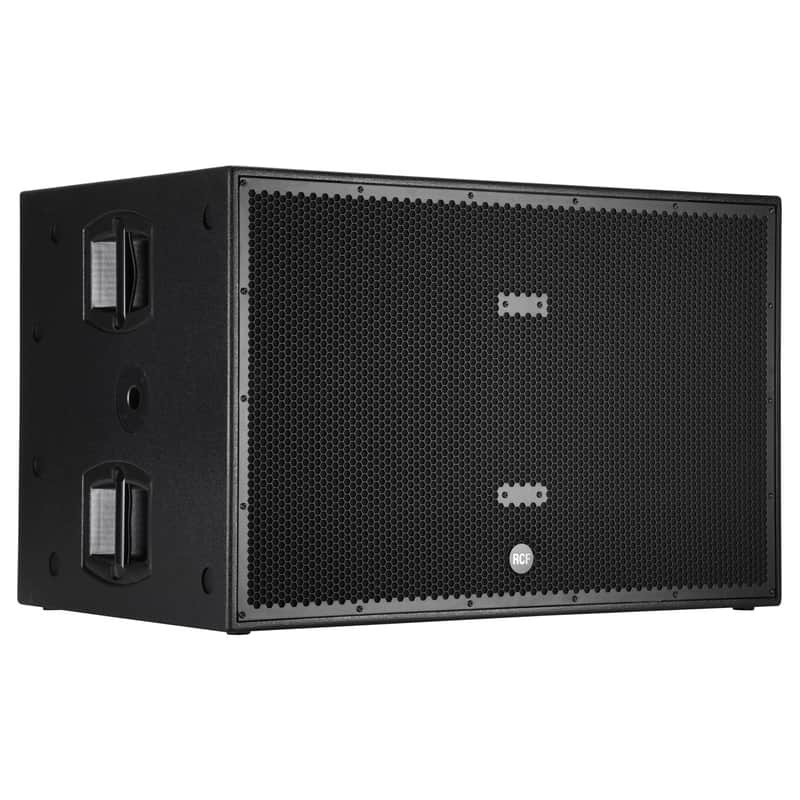

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

RCF SUB 8006-AS Features

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

  Acoustic
• • Frequency Response: 30 Hz ÷ 120 Hz
  • Max SPL @ 1m: 137 dB
• TransducersWoofer:2 x 18'', 4.0'' v.c
• Input/Output
• • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
• Processor
• • Hi-Pass Frequencies: 100 Hz
  • Low-Pass Frequencies: 80 Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioid
• Power
• • Total Power: 5000 W Peak, 2500 W RMS
  • Low frequencies: 5000 W Peak, 2500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
• Standard ComplianceCE marking: Yes
• Cabinet/Case MaterialBaltic birch plywood
• HardwareMounting points
• Handles4 side
• GrilleSteel
• ColorBlack
