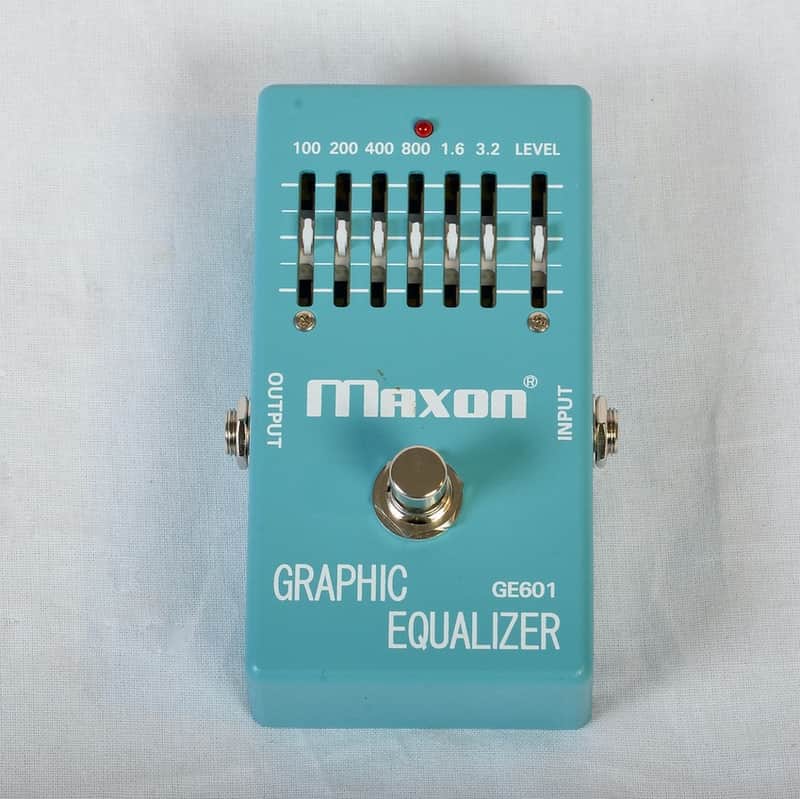

We have a complete collection of Maxon pedals that were released in early 2010's that all have serial numbers ending in 001. They were never opened or used. We are breaking up the collection and now selling them off individually. This pedal was removed from its box and plastic today to be photographed, it is in brand new condition Includes original box and paperwork.

• 6-Band Graphic EQ
• 12 dB of boost/cut per band
• 12 dB of output level boost
• Create mid-boosted, wah-like solo tones

EQ’s may not be as sexy as overdrives, but when used properly they can add a wide variety of useful new colors to your existing guitar rig.

The GE601 Graphic Equalizer covers six carefully selected frequency bands over a five octave range with 12 dB of Boost/Cut per band (100, 200, 400 & 800 Hz, 1.6 & 3.2 KHz respectively).  There’s also a Master Level control with 12 dB of overall Boost/Cut.

Pickup Simulator (Humbucker to single coil) – To turn a Humbucker into a Single Coil, cut 200, 400, & 800 Hz and Boost 100 Hz & 1.6 KHz.

Pickup Simulator (passive Bass to active Bass) – Cut 200 Hz and Boost 100 Hz & 1.6 KHz to give a passive Bass the clarity and punch of an active instrument.

Pickup Simulator (single coil to piezo) –Cut 200, 400, & 800 Hz and Boost 100 Hz, 1.6 & 3.2 KHz to make a single coil electric simulate the bright, chiming sound of an acoustic guitar with piezo pickup.

Half-cocked Wah – Boost at 800 Hz to emulate the tone of a wah pedal with the treadle set half-way forward.  This setting is also ideal for solo boosts (Adjust Level control to taste).

Clean Booster – Leave all frequency bands flat and boost the Level control to use as a clean booster for solos or to overdrive an amplifier’s input.  For more output, set all frequency bands to maximum boost.
