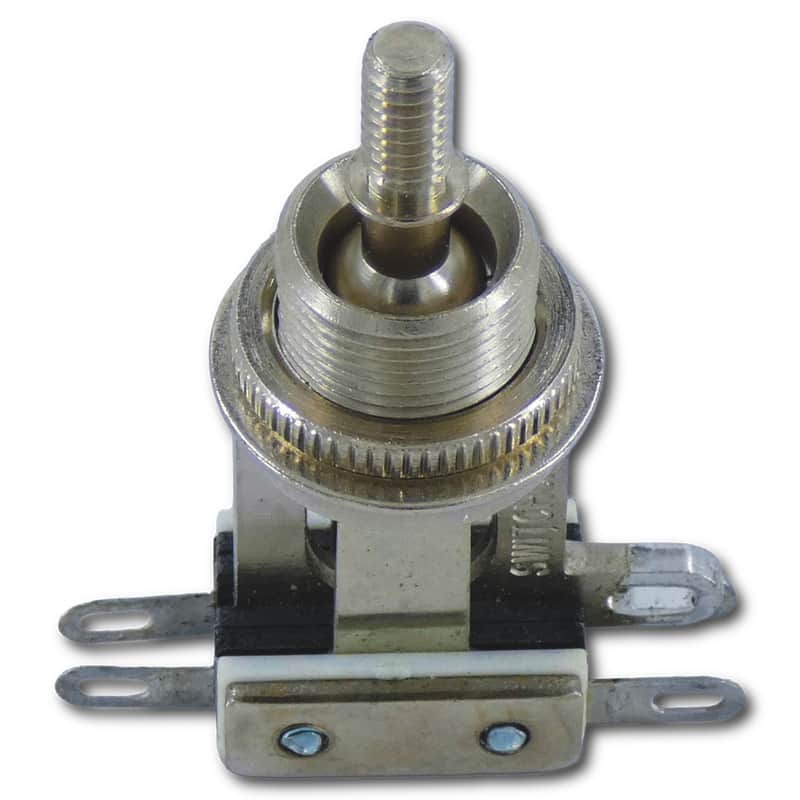

Switchcraft SC3TSSN 3-Way Short Toggle Switch for Gibson® Les Paul® & SG® Guitars
This seller has not set a shipping cost for Austria. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Designed specifically for thinner-bodied guitars where installation depth is limited. Featuring a more compact overall profile, it provides reliable pickup selection without requiring the deeper control cavities found in thicker instruments. This switch delivers dependable performance while ensuring proper fit and clearance.
Individual Switchcraft® short 3-way toggle switch for bass and electric guitar. Includes mounting hardware. Does not include switch tip. RoHS compliant. Fits Gibson® Les Paul® & SG® guitars.
* Carved-top guitars may require an Advanced Plating® or Norlin® deep toggle switch nut.
Specs
- Country of Manufacture: Made in USA
- Lugs: Pre-Tinned for Easy Soldering
- Minimum Cavity Depth: 0.875"
- Mounting Hole Requirement: 0.5"
- Thread Height: 0.34”
- Thread Pattern for Switch Tip: #8-32
- Compatible with .875” Control Cavity Depth
Configuration
- Number of Conductors: 5
- Mounting Type: Panel
- Mounting Feature: Short Frame
- Termination Style: Solder Cup
- Contact Plating: Tin
- Number of Positions: 3
Electrical
- Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
- Leakage Resistance: 1,000 MW or Greater
- Dielectric Strength: 250 VDC
- Circuit-Schematic: SPST
Material
- Frame: Plated Steel
- Bushing & Shaft: Plated Copper Alloy
- Springs: Copper Alloy
- Mounting Hardware: Copper Alloy
- Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end.
