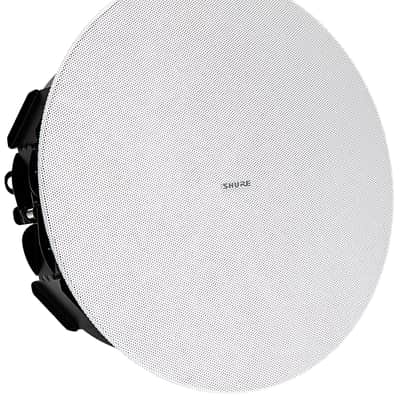

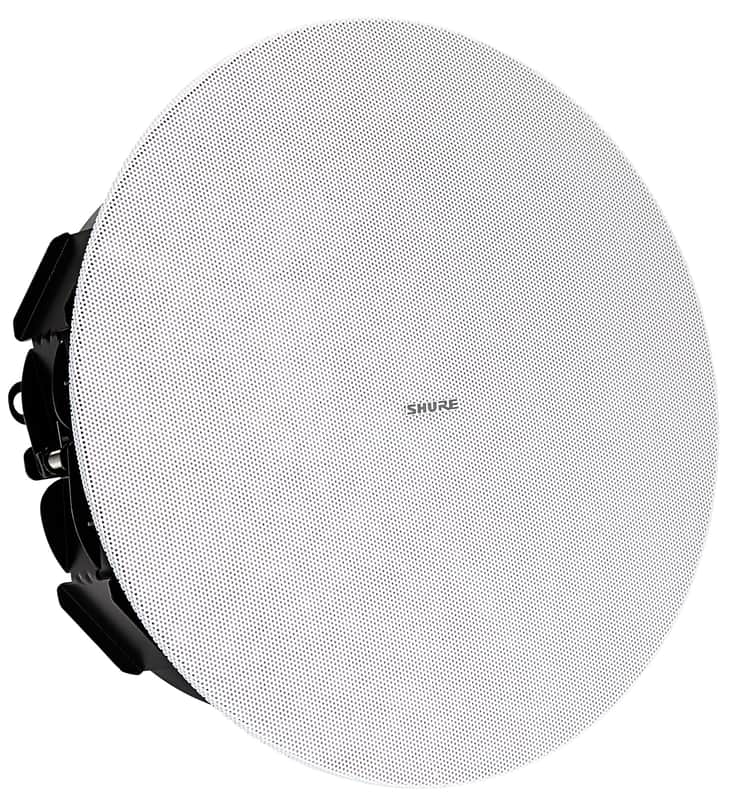

Shure MXN5W-C 5.25 Ceiling Dante Loudspeaker, White

Enjoy legenday Shure audio quality in small to mid-size conference rooms with the MXN5W-C networked ceiling speaker. This PoE-enabled loudspeaker features a pre-tuned frequency response that optimizes voice intelligibility for articulate voice reproduction. The enclosure's 2-way coaxial design fetures a 5.25 woofer and delivers full, natural, time aligned audio that's always secure thanks to Shure Audio Encryption. With integrated Shure signal processing, Dante I/O, and software-based configuration and control, the MXN5W-C is the perfect solution for modern AV conferencing applications. The speaker installs easily in drop ceiling configurations, is fully software controlled, and requires no external amplifier or outboard DSP. Its low-profile aesthetic design blends seamlessly with drop ceiling environments, while tile bridge or New Construction Bracket accessory options make mounting it where you need it a breeze. Elevate your conferencing experience today with the Microflex™ MXN5W-C Networked Ceiling Loudspeaker.

Shure MXN5W-C Includes:

• Loudspeaker
• Magnetic grille with removable Shure logo
• Flexible conduit clamp
• Cover plate

Shure MXN5W-C Features:

• Design and deploy every device in your audio chain with Shure Designer System Configuration software
• SystemOn Audio Asset Management software for remote management and troubleshooting
• Shure Audio Encryption
• Dante Domain Manager compatible
• AES67 compatible
• Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
• Low-profile, shallow-can design compatible with most drop ceiling installations

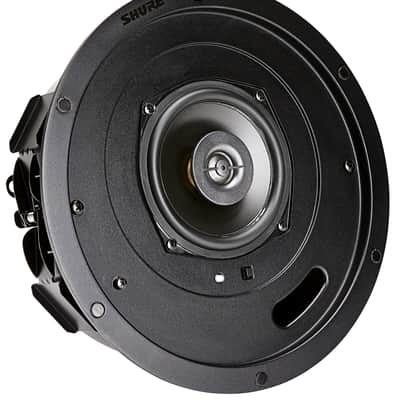

• 2-way driver system with 5.25 in (13.3cm) woofer
• PoE/PoE+ enabled, eliminating the need for an outboard amplifier
• Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
• 2 Dante inputs and 1 Dante output
• Aesthetic design subtly blends into drop ceiling environments
• Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
• Removable magnetic Shure logo
• UL 2043 plenum rated
• Tile bridge or New Construction Bracket accessory options for quick and easy mounting
• Compatible devices
  • MXA920
  • MXA910
  • MXA710
  • MXA310
  • P300
  • IntelliMix® Room
  • ANIUSB-MATRIX
  • MXN5-C
  • MXA Network Mute Button

Shure MXN5W-C Specifications:

• Connector Type: RJ45
• Power Requirements
  • Power over Ethernet (PoE): Class 0 or PoE Plus Class 4
• Power Consumption
  • Power over Ethernet (PoE): 12 W maximum (11 W typical)
  • PoE Plus: 24 W maximum (23 W typical)
• Weight: 6.5 lbs (2.95 kg)
• Product Dimensions: 12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm) H x W x D
• Control Software: Shure Designer
• Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
• Frequency Response (-3 dB): 120 Hz to 20 kHz
• Maximum Output Level At 1 meter
  • Power over Ethernet (PoE): 92 dB SPL
  • PoE Plus: 98 dB SPL
• Coverage Angle Average of 1 octave band centered on 4 kHz: 94°
• Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
• Latency Not including Dante latency: 1.5 ms
