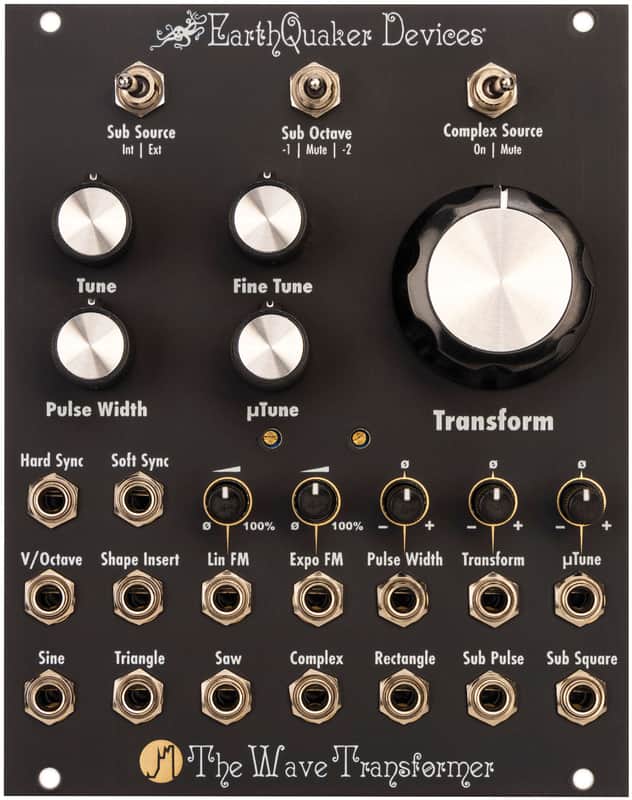

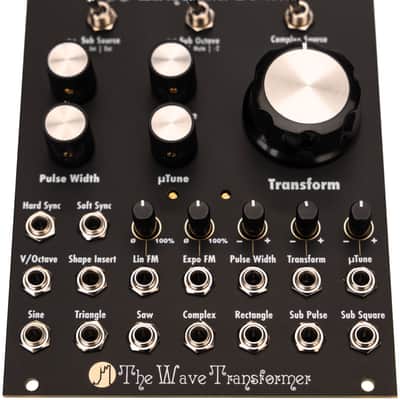

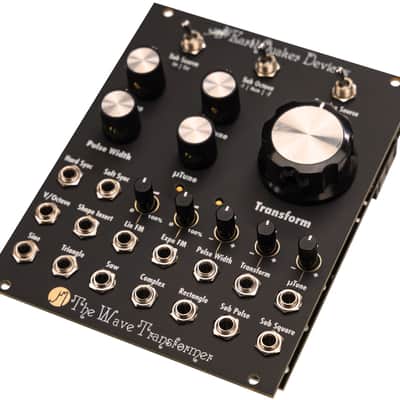

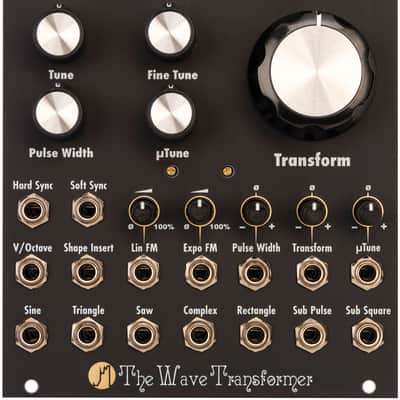

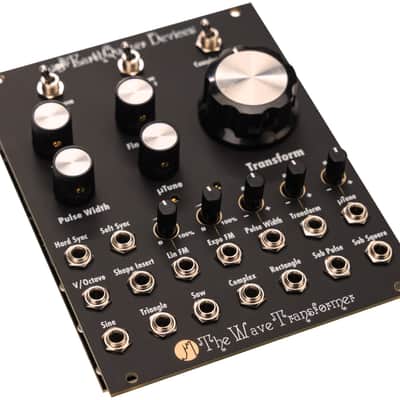

EarthQuaker Devices The Wave Transformer Transfiguration Oscillator
This seller has not set a shipping cost for Poland. Please contact them to ask about shipping.
Our users rate Reverb
The Wave Transformer is an exceptional analog, vintage-voiced voltage-controlled oscillator boasting unparalleled 8+ octaves of pitch accuracy. This innovative device features 7 simultaneous wave outputs, including the standout Complex output, revolutionizing audio creation. The transformative Transform control seamlessly shifts from basic waveforms to complex, intricate audio mutations at the Complex output, offering a spectrum of sonic possibilities.
Explore endless variations with the Wave Transformer's integration of Hard Sync, Soft Sync, Linear FM, and Exponential FM. This versatile oscillator also serves as a harmonic gate/VCA when muting the source waveform, transforming it into a unique voice. Additionally, the innovative Shape Insert feature redefines external oscillations and modular-level audio sources, expanding your creative horizons.
Ideal for musicians of any level, The Wave Transformer is an incredible tool for creating unique sounds and enhancing musical compositions.
Tech Specs
- 100% analog circuit
- Over 8 octaves of pitch tracking starting from A -1 (13.75 Hz), covering more than the full range of a traditional piano keyboard
- 7 simultaneous waveform outputs
- Dedicated attenuators / attenuverters for each CV output
- Exponential and Linear Frequency Modulation inputs
- Hard and soft sync inputs
- Pulse width control between 0%–100%
- Fixed -1 octave 25% duty cycle sub octave pulse output
- Sub Square output switchable between 1 and 2 octaves down
- Complex Source mute switch allows simultaneous control of volume and timbre up to audio rates via the Transform CV output
- Dimensions: 20HP / Max Depth: 1 inch (25.4 mm)
- Current draw: 90 mA max from the +12v rail, 90 mA max from the -12v rail
- Standard 10-pin Eurorack power connector with a marking to notate the negative pins
- Reverse Voltage protection
- Over-current protection on all outputs
- Skiff friendly - protrudes less than 1 inch (25.4 mm) behind the panel with the power header installed
- Lifetime warranty
