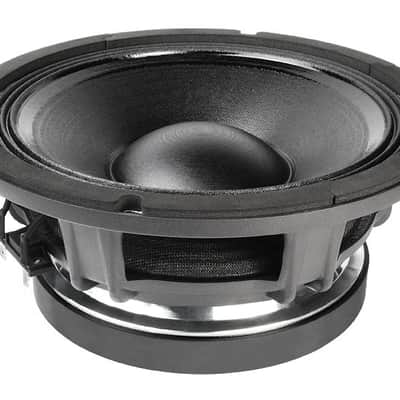

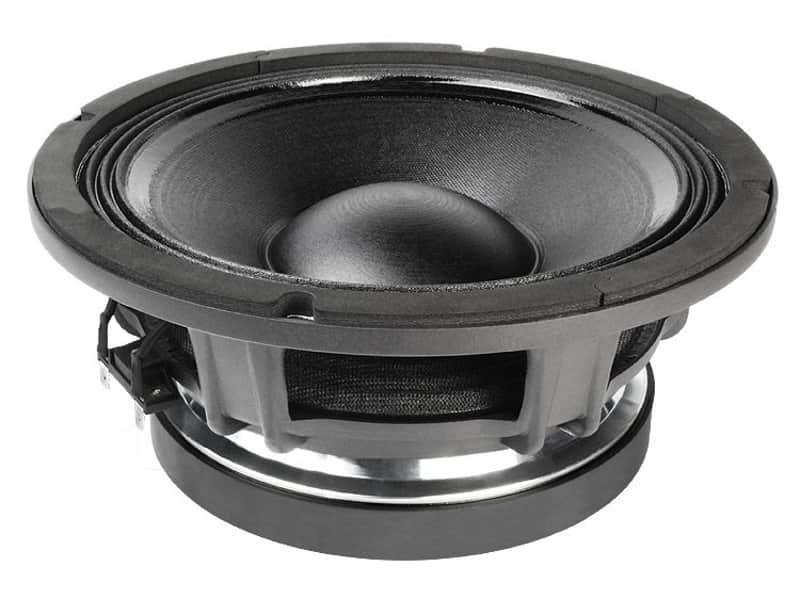

Faital PRO 10FH530 10" 1000 Watts Midbass Woofer 8-Ohm Bass Guitar Speaker

Faital PRO 10FH530 10" 1000 Watts Midbass Woofer 8-Ohm Bass Guitar Speaker

Nominal Specifications

Nominal Diameter

• 250 mm (10 in)

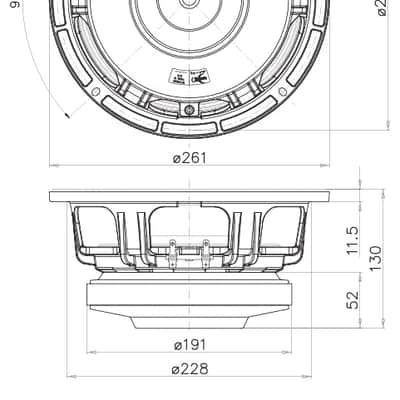

Overall Diameter

• 261 mm (10.28 in)

Bolt Circle Diameter

• 246 mm (9.69 in)

Baffle Cutout Diameter

• 230 mm (9.06 in)

Depth

• 130 mm (5.12 in)

Flange and Gasket Thickness

• 11.5 mm (0.45 in)

Net Weight

• 7.5 kg (16.5 lb)

Shipping Box
(Single Carton Box)

• 294 x 290 x 203 mm
  (11.6 x 11.4 x 8.0 in)

Shipping Weight

• 8 kg (17.6 lb)

Technical Parameters Nominal Impedance

• 8 Ohm

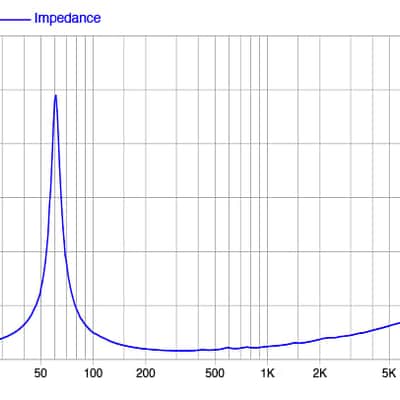

Minimum Impedance

• 6.4 Ohm

AES Power Handling (1)

• 500 W

Maximum Power Handling (2)

• 1000 W

Sensitivity (1W/1m)

• 97 dB

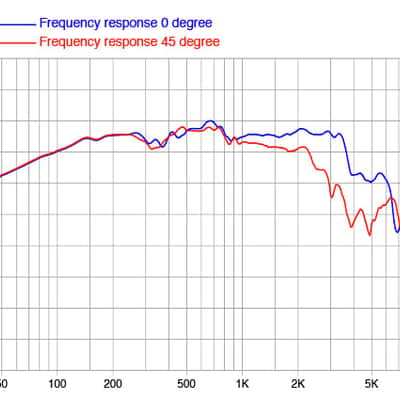

Frequency Range

• 60÷4000 Hz

Voice Coil Diameter

• 77 mm (3 in)

Winding Material

• Al

Former Material

• Glass Fiber

Winding Depth

• 18.5 mm (0.73 in)

Magnetic Gap Depth

• 10.5 mm (0.41 in)

Flux Density

• 1.2 T

Magnet

• Ferrite Ring

Basket Material

• Aluminum

Demodulation

• Aluminum Ring

Cone Surround (3)

• Triple Roll

NET Air Volume filled by Loudspeaker

• 2 dm^3 (0.071 ft^3)

Spider Profile

• 1x variable height waves

Thiele and small parameters Fs

• 60 Hz

Re

• 5.1 Ohm

Qes

• 0.25

Qms

• 12.4

Qts

• 0.25

Vas

• 23.5 dm^3 (0.83 ft^3)

Sd

• 347 cm^2 (53.79 in^2)

Xmax (4)

• 7.50 mm

Xdamage (5)

• 18.8 mm

Mms

• 50.3 g

Bl

• 19.5 N/A

Le

• 0.8 mH

Mmd

• 43.0 g

Cms

• 0.14 mm/N

Rms

• 1.5 kg/s

Eta Zero

• 1.94 %

EBP

• 240 Hz

PART NUMBER (P/N) Faston Terminals - 8 Ohm Version

• 02504149
