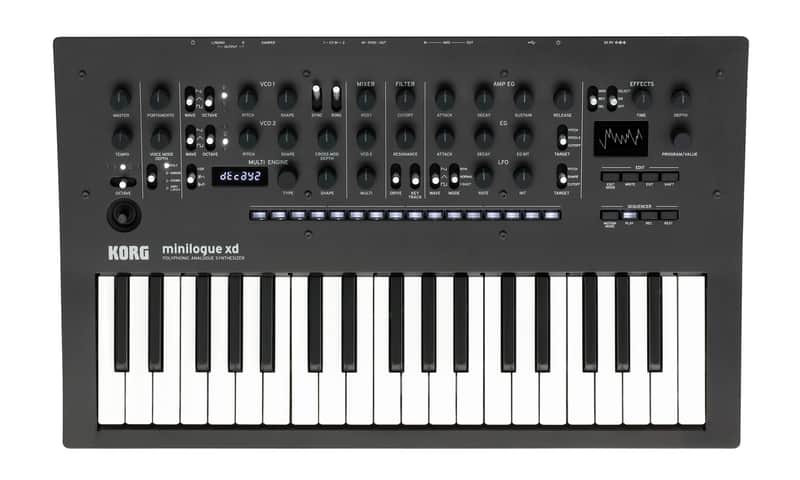

Since 1973, Korg has been making premium analog synthesizers. This tradition has continued into the modern era, with the Korg "-logue" Series, including the single note Monologue and the product you see today, the 4 note Minilogue XD. A polyphonic, 4 note analog synthesizer with a 37 key keyboard, the Minilogue XD has 200 preset sounds, as well as 300 blank spots to save your favorite patches. It doesnt miss with the luxury features either, containing a oscilliloscope to physically see the wave you're playing, a sequencer, MIDI connectivity, and a sync I/O to control your tempo of all of your Korg analog devices. The XD variant also comes packaged with many more features than its little brother, including a multi-engine for each sound, additional effects, a larger screen, and a multidirectional pitch/mod stick, to name a few.

Keyboard 37-keys (Slim-key, velocity sensitive) Sound Generation Analogue sound generator + Multi digital sound generator (Noise, VPM, User) Maximum Polyphony 4 voices Programs 500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in. Voice Mode 4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode. Sequencer 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters Main Synthesis Parameters VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE MODULATION SYNC, RING, CROSS MOD DEPTH MULTI ENGINE NOISE/VPM/USER, TYPE、SHAPE MIXER VCO1, VCO2, MULTI VCF CUTOFF, RESONANCE, DRIVE, KEYTRACK AMP EG ATTACK, DECAY, SUSTAIN, RELEASE EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF) LFO WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF) Main effect Parameters EFFECT TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH MULTI ENGINE Noise Generator 4 types VPM oscillator 16 types User oscillator 16 slots MOD EFFECTS CHORUS 8 types ENSEMBLE 3 types PHASER 8 types FLANGER 8 types USER 8 types DELAY DELAY 12 types USER 8 slots REVERB REVERB 10 types USER 8 slots Controls Joy stick that can modify different parameters for each program, PORTAMENTO knob Display Main Real-time OLED oscilloscope provides visual feedback of parameter changes MULTI ENGINE section 7 segments x 6 digit LED display Input/Output connectors Headphone jack (Stereo phone jack) OUTPUT L/MONO, R jacks (monaural phone jack unbalanced) CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode) SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V) SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V) MIDI IN jack MIDI OUT jack USB B jack DAMPER jack (half damper is not supported) Power Supply AC adapter (DC9 V) Power Consumption 8 W Dimensions (W x D x H) 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35" Weight 2.8 kg / 6.17 lbs.

---
