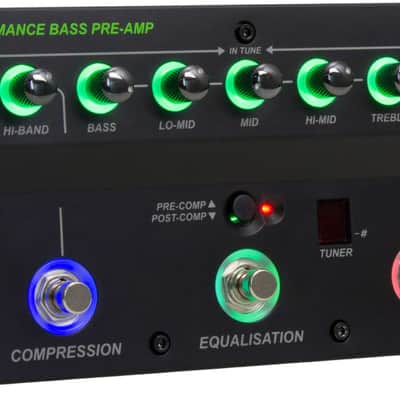

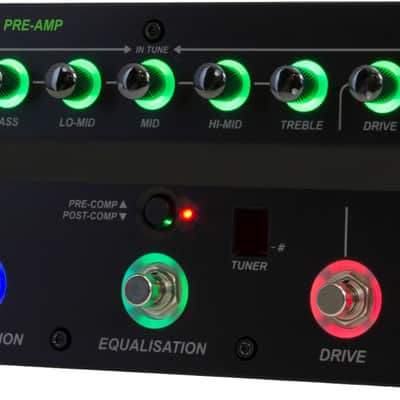

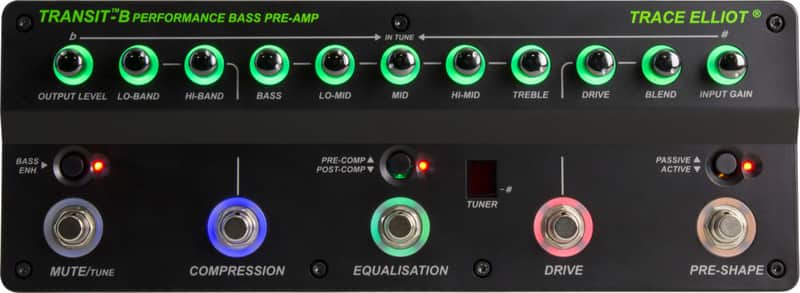

The Trace ElliotTransit B pedal is a professional grade preamp for the discerning bassist. Built-in tools for tone shaping like Pre-shape, 5 band EQ and dual band Compressor are easy to use and easy to tweak on the fly. Features like Drive with blend control and built-in bass enhancement add to the tonal options available. The back-lit control panel becomes the chromatic tuner for accurate tuning. Built-in Pre and Post XLR balanced output, dry output and headphone output give the user the ins and outs they need.

Product Features

• Color coordinated backlit controls
• Passive/Active switch
• Pre-shape switch for the classic Trace Elliot EQ curve
• Drive control with blend knob, footswitchable
• 5 band EQ with defeat switch
• Dual band compressor with defeat switch
• Mute/Tune switch
• Built-in chromatic tuner
• Input Gain and Output Level controls
• Line level, instrument level and dry outputs
• Pre and Post balanced XLR outputs with Ground Lift
• Aux input
• Phones output

Attributes

• Color: Black

Technical Specifications

• Features: Case Included, Power Supply Included
• Dimensions: 2.3" H x 12.3" W x 4.5" D
• Weight: 2.6 lbs
• EQ: 5-Band EQ
• Inputs: 1 x 1/4" (Input), 2 x 1/8" (Aux In, Phones)
• Outputs: 3 x 1/4" (Dry Out, Line, Instrument), 2 x XLR (DI Pre, DI Post)
• Power Source: 9V DC power supply (included)
• Effects: Preamp, EQ, DI, Compressor, Overdrive
• Processing Type: Analog
• Power Usage: 900mA
