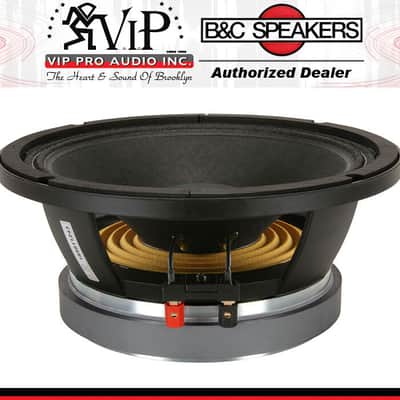

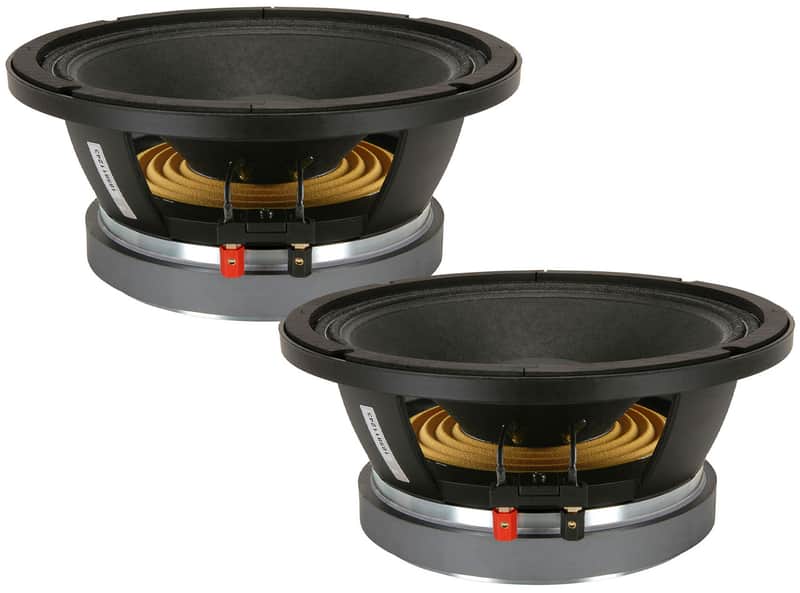

B&C 10MD26 10-Inch Midrange Speaker 700W 8-Ohm (PAIR)

B&C 10MD26 Hi-Quality 10" Midbass Speaker 10" Car Audio Midrange Woofer

Key Features

• 700 W continuous program power capacity
• 76 mm (3 in) aluminium voice coil
• 80 - 4000 Hz response
• 100 dB sensitivity

Specification

• Nominal Diameter 250 mm (10.0 in)
• Nominal Impedance 8 Ohm

• Minimum Impedance 7.2 Ohm

• Nominal Power Handling 350 W
• Continuous Power Handling 700 W
• Sensitivity 100.0 dB
• Frequency Range 80 - 4000 Hz
• Voice Coil Diameter 76 mm (3.0 in)
• Winding Material Aluminium
• Former Material Glass Fibre
• Winding Depth 11.0 mm (0.43 in)
• Magnetic Gap Depth 8.0 mm (0.31 in)
• Flux Density 1.45 T

Parameters

• Resonance Frequency 76 Hz
• Re 5.8

• Qes 0.22
• Qms 4.8
• Qts 0.21
• Vas 20.0 dm3 (0.71 ft3)
• Sd 320.0 cm2 (49.1 in2)
• 3.9 %
• Xmax 1.5 mm
• Xvar 4.5 mm
• Mms 31.0 g
• Bl 19.6 Txm
• Le 1.2 mH
• EBP 345 Hz

Mounting And Shipping Info

• Overall Diameter 262 mm (10.3 in)
• Bolt Circle Diameter 245 mm (9.6 in)
• Baffle Cutout Diameter 230.0 mm (8.8 in)
• Depth 124 mm (4.9 in)
• Flange and Gasket Thickness 14 mm (0.55 in)
• Air Volume Occupied by Driver 2.6 dm3 (0.09 ft3)
• Net Weight 7.3 kg (16.1 lb)
• Shipping Units 1
• Shipping Weight 7.9 kg (17.4 lb)
• Shipping Box 295x314x175 mm (11.61x12.36x6.89 in)

Service Kit

• RCK010MD268
