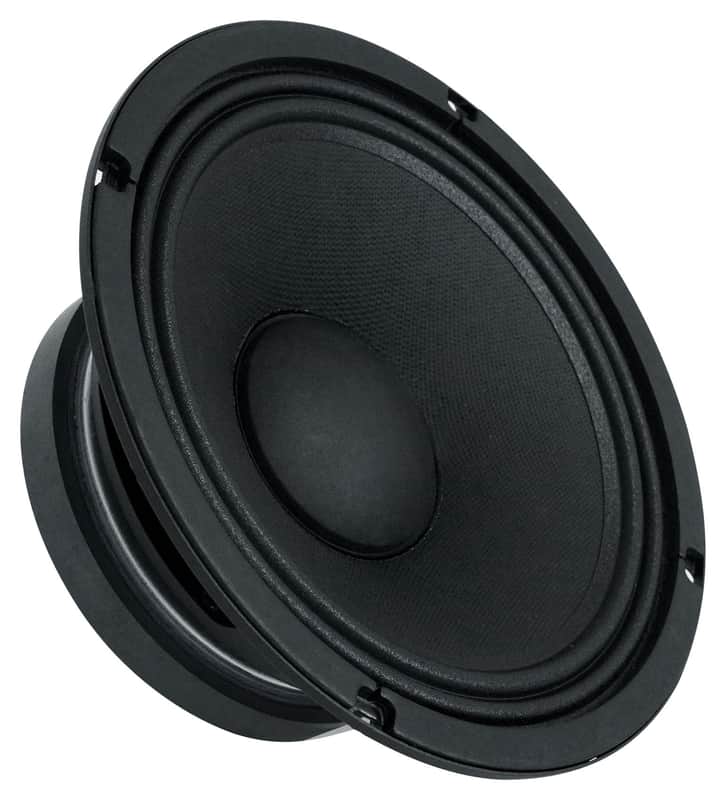

Celestion TF0818 200W 8" Pro Audio PA Woofer 8 Ohm Mid/Bass Driver
Price$66.95
Free Shipping
Free Shipping
from Inwood, NY
Listed:2 years ago
Views:310
Saves:7
Inwood, NY, United States
Our users rate Reverb
Features:
- 8in low frequency driver providing 94dB sensitivity and 100Wrms
Specifications:
- Nominal diameter: 203mm / 8in
- Power rating: 100W
- Continuous power rating: 200W
- EIA power rating: 150W
- Rated impedance: 8O
- Sensitivity: 94dB
- Frequency range: 70-6000Hz
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 0.88kg / 31oz
- Voice coil diameter: 44mm / 1.75in
- Voice coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Gap height (Hg): 6mm / 0.24in
- VC winding height (Hvc): 13mm / 0.51in
- Additional impedances: 4O, 16O
Parameters
- Sd: 226.98cm2 / 35.18in2
- Fs: 100.00Hz
- Mms: 19.57g / 0.69oz
- Qms: 3.311
- Qes: 0.493
- Qts: 0.429
- Re: 6.72O
- Vas: 9.44l / 0.33ft3
- BI: 12.95Tm
- Cms: 0.13mm/N
- Rms: 3.72kg/s
- Le (at 1kHz): 0.75mH
- Xmax: 5mm / 0.2in
Mounting Information
- Overall diameter: 208mm / 8.19in
- Overall depth: 99mm / 3.9in
- Cut-out diameter: 183mm / 7.2in
- Mounting hole dimensions: 9.5x5.5mm / 0.37x0.22in
- Number of mounting holes: 4
- Mounting hole PCD: 195-199mm / 7.68-7.83in
- Unit weight: 2.3kg / 5.1lb
Packed Dimensions & Weight
- Single pack size W x D x H: 230mm x 230mm x 110mm / 9.1in x 9.1in x 4.3in
- Single pack weight: 2.8kg / 6.2lb
- Multi pack qty: 140
- Multi pack size W x D x H: 42.1in x 33.5in x 33.9in
- Multi pack weight: 350kg / 770lb
