Description:

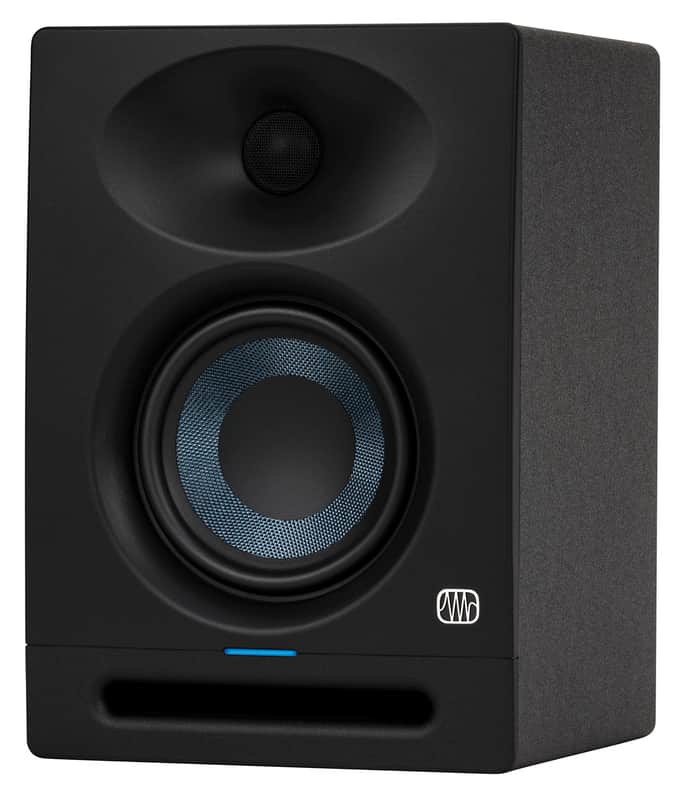

The Eris Studio 5 is a substantial update that builds on the reputation of its predecessors by offering deep lows and a wider, more controlled sweet spot so you’ll hear every transient, detail, and breath in your recordings.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk and a silk-dome tweeter ensures snappy, accurate transient reproduction.

The woven composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz. That's 10 Hz below previous models—with no subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Features:

• 5.25-inch woven composite low-frequency driver

• 1-inch, ultra-low mass, silk-dome, high frequency driver

• Crossover Frequency, 3.5 kHz

• 100˚ x 60˚ EBM waveguide provides a sweet spot

• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing

• 80W, Class AB dual amplification

• 48 Hz to 20 kHz frequency response

• 102 dB Peak SPL (@ 1 meter)

Acoustic Tuning Controls:

• Acoustic Space (Flat, -2 dB, -4 dB)

• High Frequency (±6 dB, center 10 kHz, continuously variable)

• Mid Frequency (±6 dB, center 1 kHz, continuously variable)

• Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

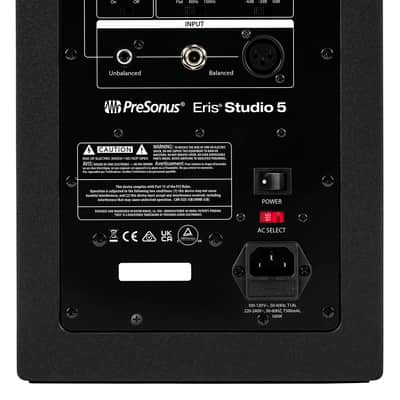

Inputs:

• XLR and 1/4-inch TRS balanced rear-panel inputs

• RCA unbalanced rear-panel inputs

Protection:

• RF interference

• Output-current limiting

• Over-temperature

• Turn-on/off transient

• Subsonic filter

• Power Saver mode (engages after 40 minutes)
