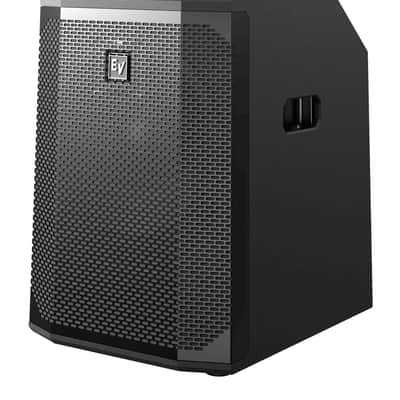

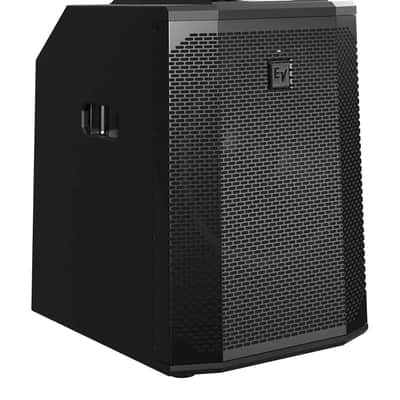

The Electro-Voice EVOLVE50-SB-US, Portable 1000W Bluetooth-Enabled Subwoofer - Black is a three-component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

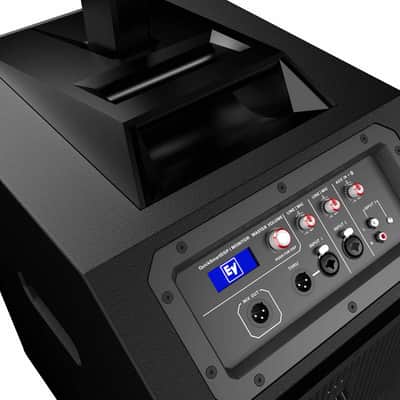

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Product Specifications:

Configuration: Active Subwoofer

Total Power Capacity: 1000 W

Frequency Range: 37 Hz to 20 kHz -10 dB

Wireless Connectivity: Bluetooth

Color: Black

Total Power Capacity: 1000 W

Frequency Range: 37 Hz to 20 kHz -10 dB

Frequency Response: 43 Hz to 20 kHz -3 dB

Maximum SPL: 127 dB

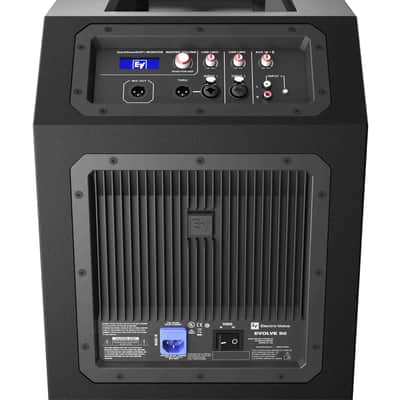

Audio I/O

2 x Combo XLR-1/4" TRS Input

1 x 1/8" / 3.5 mm TRS Input

1 x Stereo RCA Input

1 x XLR 3-Pin Thru/Output

1 x XLR 3-Pin Mix Output

Wireless Connectivity: Bluetooth

Yes, Required: Android & iOS

App Name: Quick Smart

Functionality: Adjust Settings, Remote Control

Crossover: 200 Hz

Color: Black

Construction Material: Metal Grille, Plywood

Dimensions: 20.9 x 13.6 x 18.5" / 53.1 x 34.5 x 47 cm (Base)

Weight: 44.7 lb / 20.3 kg

Shipping Weight: 52 lbs

Shipping Dimensions (LxWxH): 24 x 22 x 16.5"
