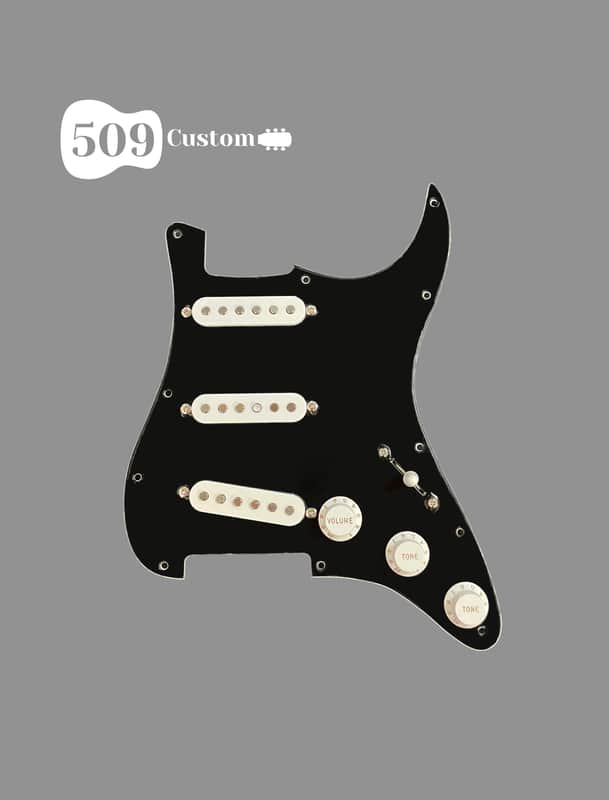

509 Custom Stratocaster Loaded Pickguard - Black

509 Custom Stratocaster Loaded Pickguard that includes-

Kent Armstrong® Vintage Series Tweedtone Single Coil Pickup.

This is a warmer more full-sounding variation of the vintage Strat® bridge pickup with a hotter output and string definition. Enhanced mid-range frequencies

Pickup Specifications-

STV4B = 7.5K (for bridge)
STV4M = 7.2K (for middle position - reverse wound / reverse polarity
STV4N = 6.4K (for neck position).

Magnet Type = Alnico 5

• DC Resistance = 7.5K Ohms
• Magnet Dimensions - 5mm W X 17mm L
• Standard 2 core wiring
• Staggered Pole Pieces

3- Bourns 250k split shaft potentiometers, an Orange Drop treble bleed mod, an Orange Drop 716p high performance 0.047uF capacitor, an Oak Grigsby 5-way blade switch, and a Switchcraft output jack.

This 11 hole loaded Stratocaster pickguard includes the bridge tone mod. The bridge tone mod allows the rear tone control to be utilized when placed in the 5th (bridge) position.

Wired with Gavitt 22 gauge vintage style, cloth covered wire. All handwired and assembled in Red Wing, Minnesota.
