We loved the original and this one is a great way to drive your amp with 3 different flavors or use with FRFR cab with IR loaded.

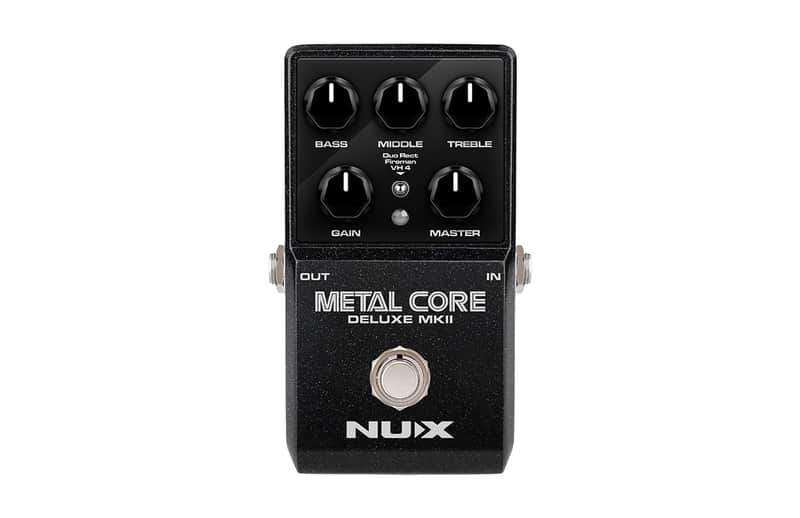

The NUX METAL CORE DELUXE MKII is a high gain preamp pedal with 3 distinctive high gain amp models including the Duo Rect, Fireman, and VH 4. You can select these models via the 3-way toggle switch.
Features

Amp in a box.

  • 3 high gain Amp Models in a compact enclosure.
  • Duo Rect: Based on Mesa Boogie Dual Rectifier.
  • Fireman: Based on Friedman BE-100.
  • VH4: Based on Diezel VH4.
  • IR out for amp-less application. (512 samples resolution)
  • True-bypass.
  • Parameters auto saving into 3 models.
  • Low power consumption. (less than 120mA)
  • TSAC-HD modeling offers realistic playability and response.

Specifications

  • Input Impedance: 1MΩ
  • Output Impedance: 1kΩ
  • Dynamic Range: 104 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC (Negative tip, Optional ACD-006A adapter)
  • Current Draw: less than 120mA
  • Dimensions: 122(L) X 72(W) X 47(H)mm
  • Weight: 270g

The USB-C port is for firmware updates and connecting to the MetalCore editing software (see below). To update the pedal, connect a USB cable to your PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can perform firmware updates using DFU updater software.


ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Metal Core Deluxe MKII
Finish
  • Black
Categories
Year
  • 2023
Made In
  • China
Pedal Format
  • Standard
Color Family
  • Black
