The first wah pedal designed by bass players for bass players. The 105Q incorporates a proprietary potentiometer and custom EQ circuitry specifically optimized for bass frequencies. The Cry Baby Bass Wah applies the wah effect to the mids and highs only, leaving a strong fundamental to hold down the bottom so you can take solos or throw in fills without ever disturbing your low end.

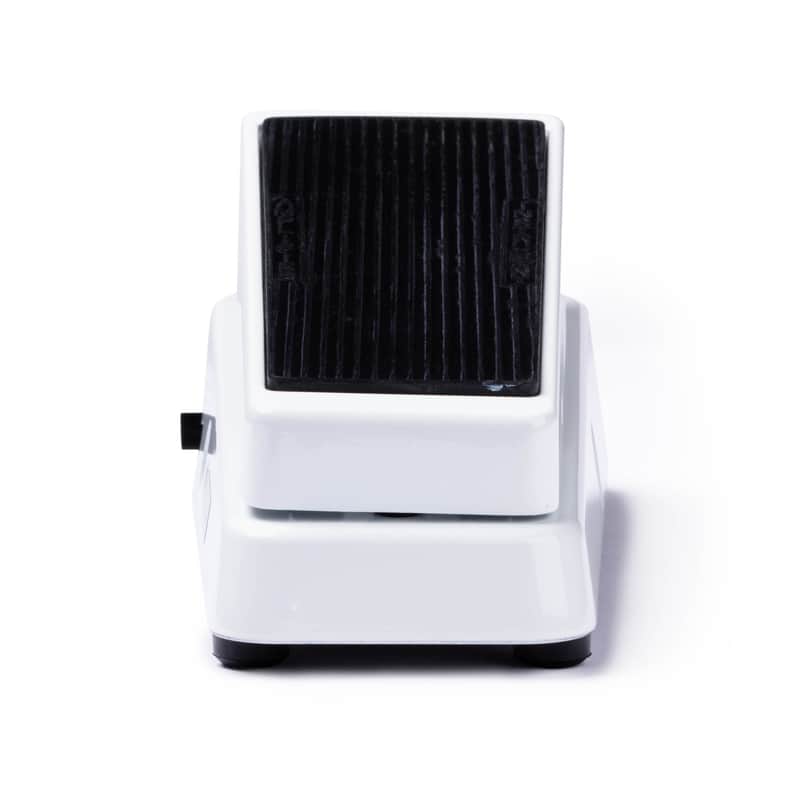

CRY BABY® BASS WAH105Q

This Cry Baby Wah combines convenient auto-return switching with circuitry specifically optimized to keep your low end fundamental intact.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

POWER

The 105Q Cry Baby Bass Wah Wah is

powered by one 9-volt battery (accessed

via the bottom of the pedal), an AC adapter

such as the Dunlop ECB003/ ECB003E, or

a DC Brick

™ power supply.

CONTROLS

• VOLUME knob controls amount of gain

added by BOOST switch, up to 20dB

• VARIABLE

Q knob adjusts frequency

range of wah wah effect

• BOOST switch increases output

as set by VOLUME knob

• Silent “auto-off” switching puts

pedal into bypass mode when

you take your foot off rocker

SETUP INSTRUCTIONS • Run an instrument cable from your

guitar to the 105Q’s INSTRUMENT

jack and another instrument cable

from the 105Q’s AMPLIFIER jack

into your amplifier’s input.

• The 105Q is bypassed (off) whenever

your foot is off the pedal. To turn it on,

simply press the toe of the pedal down

with your foot.

• Set both the VOLUME control

and the VARIABLE

Q control

fully counterclockwise.

• Rock your foot back and forth on the

pedal to hear the vocal, expressive

tones that the Cry Baby Wah Wah is

famous for.

• Rotate the VARIABLE

Q knob

clockwise for

a narrower frequency

range to emphasize higher end

harmonics or counterclockwise for a

wider frequency range that emphasizes

lower end harmonics.

• To increase the 105Q’s output, engage

the BOOST switch and rotate the

VOLUME control clockwise to increase

the amount of gain, up to +20dB, or

counterclockwise to decrease it.

ADJUSTABLE VOLUME control

sets level of preset gain

boost of up to +20dB

Silent “AUTO-OFF” switching

puts the pedal in BYPASS mode

when you lift your foot

VARIABLE Q control lets you

adjust the frequency width

of the effect

DUNLOP MANUFACTURING, INC.

P.O. BOX 846 BENICIA, CA 94510 U.S.A.

TEL: 1-707-745-2722 FAX: 1-707-745-2658

SPECIFICATIONS

Impedance

Input

1

M

Ω

Output

1

k

Ω

Filter Center Frequency

Heel Down 180 Hz

Toe Down 1800 Hz

Gain at Center Frequency

Heel Down +25 dB

Toe Down +32 dB

Bypass Buffered

Current Draw 3.5 mA

Power Supply

9 volts DC
