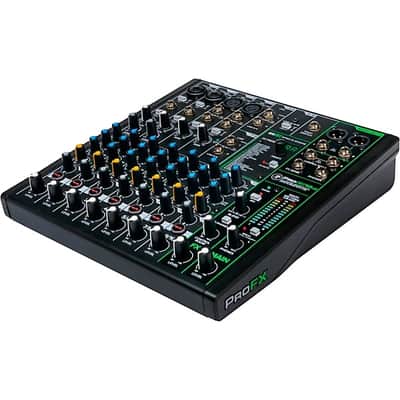

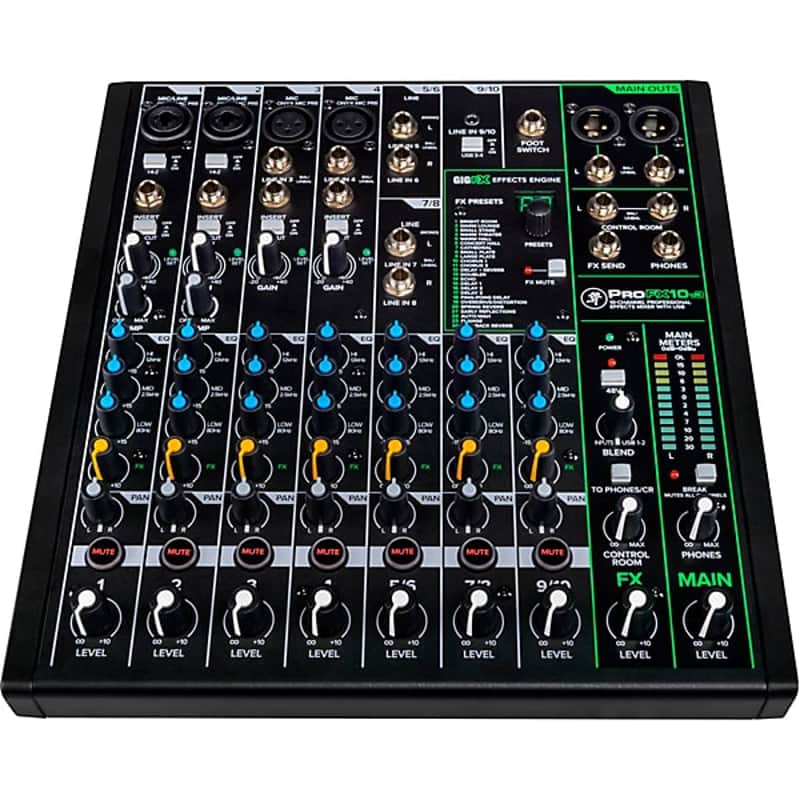

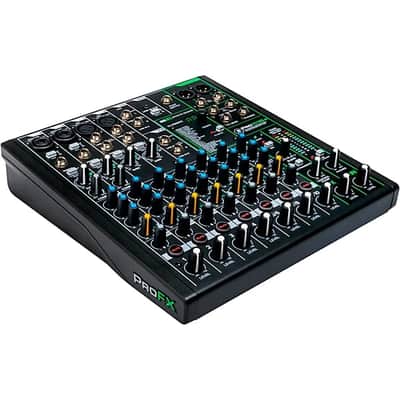

Mackie ProFX10v3 10-Channel Effects Mixer

Description

Mackie's ProFX10v3 is a 10-channel professional mixer equipped with high-quality components to capture your best takes. Mackie's renowned Onyx mic preamps offer an incredible 60dB of gain to amplify even the most subtle sounds. The ProFX10v3's GigFX effects engine provides 24 built-in FX like reverb, delay and chorus to add texture and depth.

Capture Every Nuance

The Onyx preamps are renowned for their pristine clarity, wide dynamic range and musical tone. With 60dB of gain, they have enough headroom for gain-hungry condenser mics, dynamic mics and everything in between. The ProFX10v3's effects engine offers reverbs, delays, mod effects and more to enhance your tracks during recording or live performance.

Record and Mix with Ease

The ProFX10v3 features a USB interface for recording in stunning 24-bit/192kHz quality. Its 2x4 USB I/O provides two inputs and four outputs so you can overdub and mix with ease. Zero-latency hardware monitoring eliminates distracting delay while recording and the included Pro Tools First and Waveform recording software provide an intuitive platform for crafting mixes.

A Mixer for All Occasions

Whether you're recording a podcast, live streaming, capturing a live band or producing an album, the ProFX10v3 handles it all. With 10 inputs, flexible routing options and a 3-band EQ on each channel, you have full control over your mix. The ProFX10v3's rugged design and all-metal chassis ensure years of reliable performance on the road or in the studio. Order the Mackie ProFX10v3 10-channel professional mixer today at Guitar Center and unleash your creativity.

Key Features

• 4 Mic/Line Inputs (Comp 1-2)
• 2 Mono/Stereo Line Inputs + 1/8" Input
• 2-In / 4-Out USB (24-Bit, 192 kHz)
• GigFX Effects Engine (24 FX Presets)
• Main XLR & 1/4" + Control Room Output
• 4 Onyx Mic Preamps with 48V Phantom
• 3-Band EQ, FX Send, Pan, Mute, Level
• Footswitch, FX Send, Headphone Output
• Includes Power Supply

The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.

Channels 1-2 offer combo XLR-1/4" mic/line connections and feature single-knob compression and Hi-Z (for guitar and bass), while channels 3-4 offer XLR or 1/4" inputs. Channels 1-4 include inserts, low-cut filters (100 Hz), and gain controls. Channels 5/6 and 7/8 offer two 1/4" inputs, while channel 9/10 use a 3.5mm stereo input. All channels offer 3-band EQ, dedicated FX send, pan, mute, and level controls. Engaging channel 9/10's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include a pair of control room outputs with level control, an input USB 1/2 blend control, a dedicated FX output, an FX level control, and an FX mute, which can also be controlled via the 1/4" footswitch input.

• Professional Sound Quality
• • Equipped with 4 Onyx Mic Pres offering up to 60 dB of gain and ultralow noise performance
  • All-new GigFX Effects Engine with 24 different FX options, from reverbs to delays and more
• Essential Mixing Tools
• • 3-band EQ on all channels
  • Hi-Z switches allows direct connection of guitars, basses, and other instruments
  • 100 Hz low-cut filter and 48V phantom power on all mic channels
  • Stereo 1/8" input on channel 9/10
  • Headphone output with separate level and blend control
  • Insert jack on channels 1–4
  • Footswitch input for FX Mute
  • Single-knob compression helps keep your input levels in check
• 24-Bit / 192 kHz 2x4 USB Recording Interface
• • 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer
  • Perfect for live performance recording, music playback, live streaming, and more
• Latency-Free Monitoring
• • Easily blend between monitoring your computer’s output and a direct feed from the mixer
• Professional Production Content
• • Pro Tools | First and Waveform OEM professional software and plugin packages included
  • The DAW Essentials Bundle for Waveform OEM includes 16 powerful plug-ins like Equalizer, Compressor, Reverber8, and Limiter
• Signature Rugged Design
• • Mackie built-like-a-tank design
  • Solid steel chassis protects your investment
  • Tough ABS side protection

Mackie PROFX10V3 SpecsMixerNumber of Analog Input Channels10Number of Mic Preamps4Analog Output Channels2 x Stereo Master Output
1 x Stereo Control Room/Monitor Output
1 x Mono FX Send Output
1 x Stereo Headphone OutputMetersMain Meter:
2 x 12-Segment LEDMeter RangeMain Meter:
-30 dB to +15 dB Plus Peak/ClipSignal ProcessingEQ ParametersLow: ±15 dB at 80 Hz
Mid: ±15 dB at 2.5 kHz
High: ±15 dB at 12 kHzFiltersHigh-Pass: 100 Hz, 18 dB/OctaveBuilt-In Effects24 x Preset (Factory)Digital AudioBit Depth24-BitPerformanceFrequency ResponseMic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)Max Input Level+22 dBOutput LevelMain Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max GainI/O ImpedanceMic Input:
3.3 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)CrosstalkAdjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHzCMRR70 dB at Max Gain (1 kHz, Mic In to Main Out)EIN-126 dBu at Max Gain (150-Ohm Input)Noise FloorAll Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)THD+NMic Input to Main Output:
< 0.03% (+4 dBu)ConnectivityPhantom Power+48 V, Selectable On/Off (Applied to All Inputs)USB1 x USB-B 2.0()USB I/O Capacity2 x Input / 4 x OutputPowerAC Input PowerUniversal:
100 to 240 VAC, 50 / 60 HzPower Supply Output12 VDC at 2 APhysicalRack MountableNoDimensions3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cmWeight4.9 lb / 2.2 kgPackaging InfoPackage Weight6.635 lbBox Dimensions (LxWxH)15.1 x 12.8 x 4.3"
