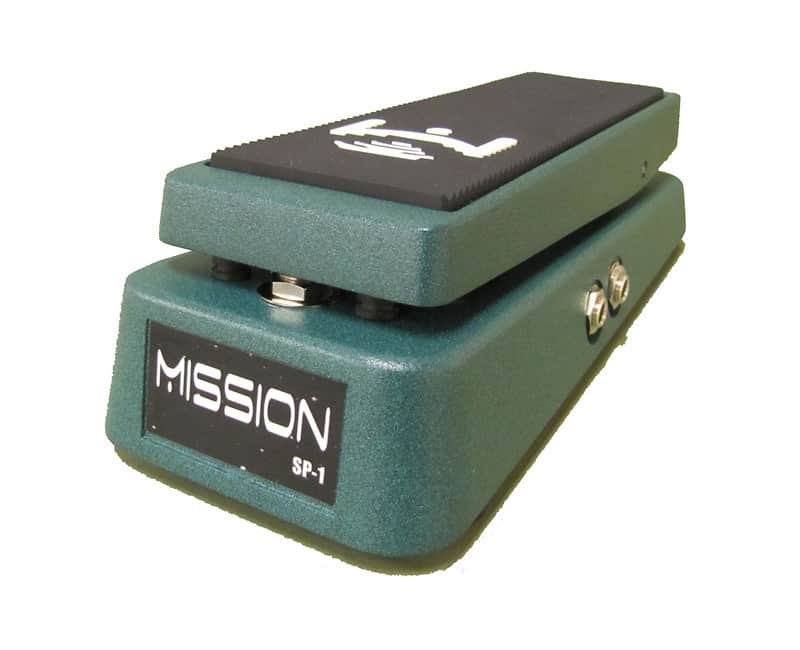

Mission Engineering SP-1 Expression Pedal - black

FREE shipping in the USA!

The first Mission Pedal, the SP-1 is our unique switching expression pedal. There are two 1/4” output jacks, one for the expression pedal and one for the switch. The switch is operated by pushing down on the front with your foot in the same way as a traditional wah pedal. This is used to turn a pedal driven effect such as a wah or vibrato on an off at the pedal itself. The SP-1 is compatible with most MIDI controllers and processors with two or more pedal jacks. The SP1-R option adds a polarity reversal capability. This is a mini toggle switch that reverses the polarity of the potentiometer for compatibility with devices that require a reversed polarity. See the support page for more information.

The SP-1 and SP1-R can be fitted with an optional LED to indicate latched and unlatched state. This can be used as an effect on/off indicator. The SP-1 is a passive device; no battery or external power is required unless the LED option is added. The LED is powered by an internal 9v battery (included), accessible via a base mounted battery door.

Mission Engineering SP-1 Expression Pedal Specifications

Potentiometer: Mission 10K Linear
Switch: Latching
Output: 2 x TRS 1/4″ instrument jack
Weight: approximately 3.14lbs
