conditions

- Brandnew Build (built under professional conditions)

- Tested

- Calibrated

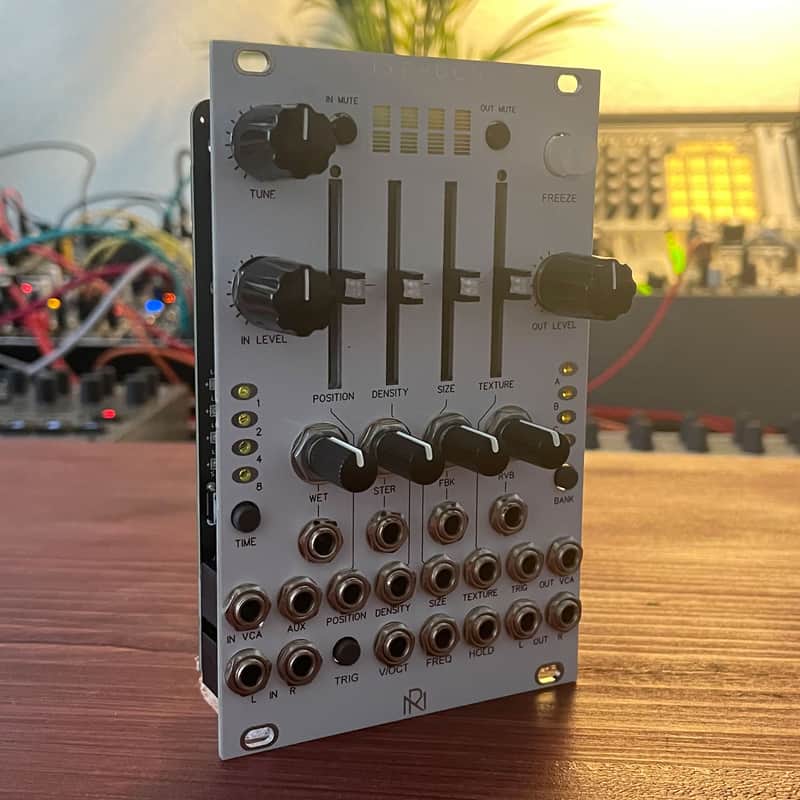

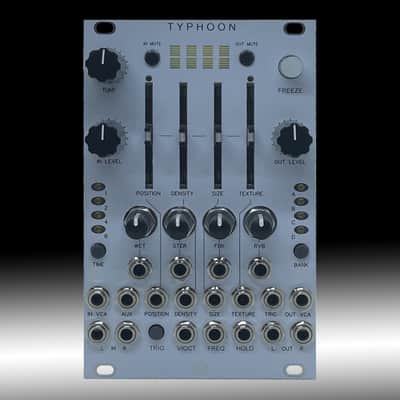

Typhoon is a more compact Version of Mutable Instruments Clouds and combines Stock, Parasites und Kammerl Firmware.

four sliders for the main controls with bipolar leds (green and red) to give visual feedback of the cv amount. Additional four pots for the cv inputs for the different effect parameters (wet/dry – stereo width – feedback – reverb amount) that were only accessible with repeated button pushes on the original.

It also features VCAs and mute switches on the input and output (pre reverb) and an additional +6 dB of gain on the output to compensate for low output levels.

The Aux input sends CV to all controls if no cable is connected at the CV-Jack.

The VU meters are for input (top) and for output (bottom).
Pitch is now controlled by two separate inputs: the V/Oct input is exponential and the Pitch input is linear. When both inputs are used, their voltages are summed.

A manual Trig switch (for capturing individual grains) has been added, in addition to the Trig input that was present on Clouds.

The module includes all the stock and alternate firmwares without the need for re-programming.

Mode 1 [●○○○]: Granular Clouds (Parasites)

Mode 2 [○●○○]: Pitch Shift / Time Stretch (Parasites)

Mode 3 [○○●○]: Looping Delay (Parasites)

Mode 4 [○○○●]: Spectral Processor (Parasites)

Mode 5 [○●●●]: Oliverb (Parasites)

Mode 6 [●○●●]: Resonestor (Parasites)

Mode 7 [●●○●]: Beat Repeat (Kammerl)

Mode 8 [●●●○]: Spectral Clouds (Kammerl)

Size: 16HP Eurorack Format

delivery includes:

- ribbon cable

- screws incl. protection washers

Shipping is tracked and insured

OPEN SOURCE HARDWARE

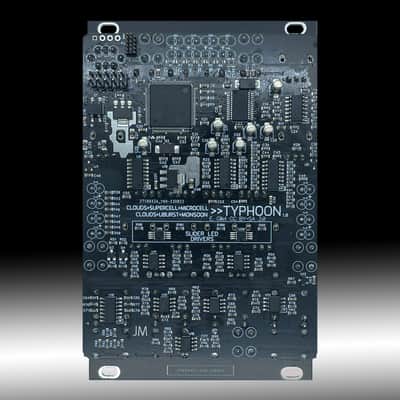

PCB & Schematic provided by Jakplugg under creative commons CC-BY-SA-3.0 license.

Original CAD file, PCB & Schematic and original design elements provided by

Mutable Instruments (Émilie Gillet) under creative commons CC-BY-SA-3.0 license
