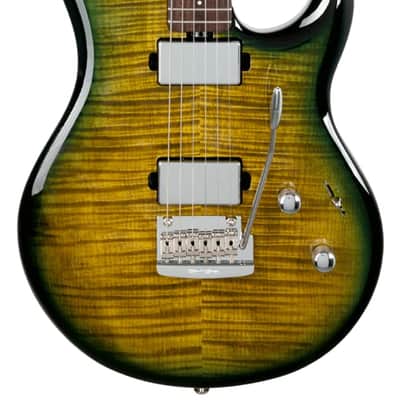

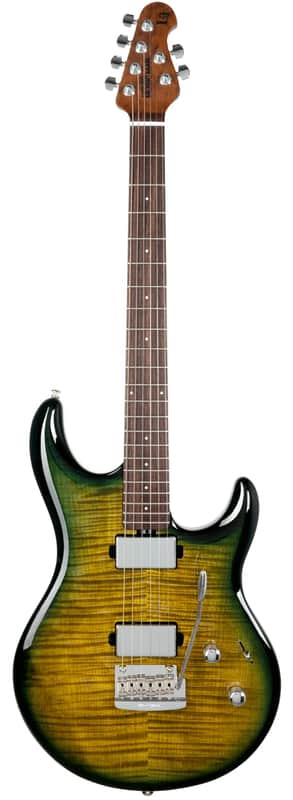

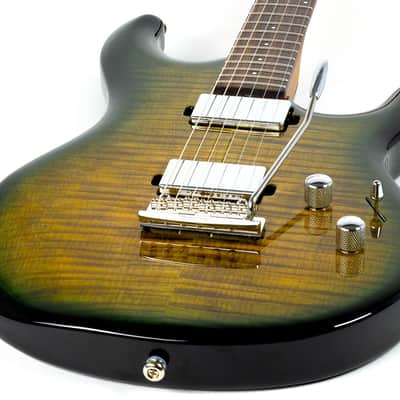

Luke 4 HH Maple Top

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather, the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 HH maple top signature guitar. This fourth installment in the Lukather signature line of instruments features a lightweight Okoume body, a premium figured maple top with a figured roasted maple neck, and a rosewood fingerboard. The Luke 4 maple top is outfitted with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels. The Luke 4 HH shares many of the standard specifications of the original Luke guitars, including a double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable 12db boost, a Music Man vintage floating tremolo and ships in a Mono case.

LUKE 4 HH HIGHLIGHTS

LIGHTWEIGHT OKOUME BODY AND MAPLE TOP WITH POLYESTER FINISH

CRAFTED WITH A ROASTED MAPLE NECK, ROSEWOOD FINGERBOARD, AND 22 NICKEL FRETS

EQUIPPED WITH AN ADJUSTABLE 12DB BOOST AND 5-WAY SWITCH FOR MORE TONAL DIVERSITY

HT HUMBUCKING BRIDGE PICKUP

The Luke 4 HT bridge pickup outperforms regular spec pickups with ultra-high output, more dynamic range, and excellent touch sensitivity. The pickup garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

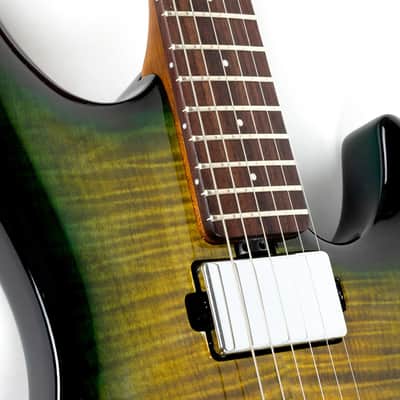

HUMBUCKING NECK PICKUP

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Luke 4’s bridge pickup.

PUSH PUSH BOOST CIRCUIT

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

DESIGNED TO PERFECTION

The Luke 4's double-cutaway design features a balanced, resonant Okoume body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

SCHALLER LOCKING TUNERS

The Luke 4 features Schaller M6-IND locking tuners in Chrome.

Specifications: Luke 4 HH Maple Top

Model Luke 4 HH Maple Top

Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)

Body Wood Okoume with Flame Maple Top

Body Finish High gloss polyester

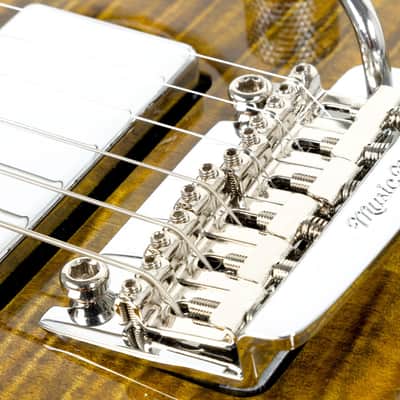

Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles

Scale Length 25.5"

Neck Radius 12"

Frets 22 - Low profile, wide - Nickel

Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.

Neck Wood Figured Roasted Maple

Fingerboard Rosewood

Fret Markers White Corian 1/8" Dots

Neck Finish Gunstock oil and hand-rubbed special wax blend

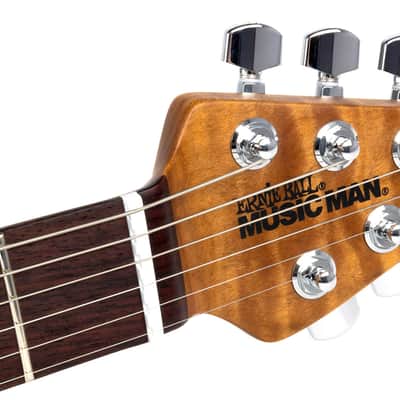

Tuning Machines Schaller M6-IND locking

Truss Rod Adjustable - no component or string removal

Neck Attachment 5-bolt, sculpted neck joint

Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover

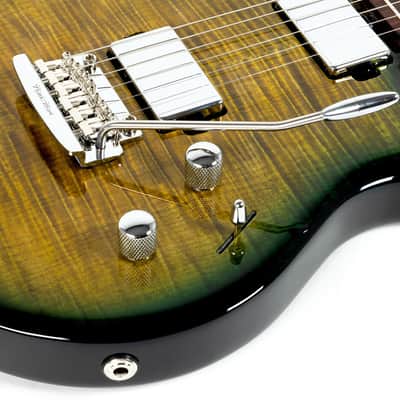

Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch

Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.

Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker

Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

Pictures may vary slightly from actual product.
