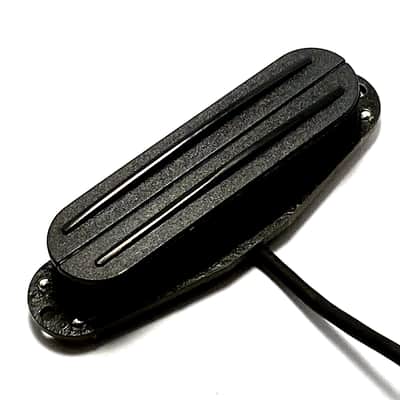

Dragonfire AR5 Strat Sized Humbucker, 1 Qty Position Interchangeable AlNiCo V 4-Wire Rail Pickup ~ Black with Black Rails

Dragonfire AR5 Position Interchangeable Strat Sized Humbucker ~ 1 Quantity Pickup ~ Passive AlNiCo 5 Performance ~ Black with Dual Black Blade Rails

Humbucking Performance in Strat Single Coil Size ~ Your Choice of Bridge, Middle, or Neck Play ~ Great for Steady Dynamic, Enhanced Presentation, Dominating Execution & Impressive Results

Amp up your tone with these hot wound Dragonfire AR5s designed with dual blade rails on a full-encompassing bobbin for a modern presentation. The A5 rails featured in these pickups help you avoid definition loss and provide strong string response in a variety of playing styles for a more consistent execution. These are position interchangeable AlNiCo humbuckers in the size of a Strat single coil. This means you don’t have to mod your body to get the humbucking features and performance you want in any Strat slot.

These 4-wire AR5 pickups provide humbucking character and the ability to coil-split for even more control and functionality. Check out our extensive selection of custom wiring harnesses, including classic options, incorporation, wiring performance upgrades and solderless options, if you’d like us to do the wiring work for you.

AR5s are some of the hottest passive pickups out there for a Strat slot and can be used in any standard single coil space. These are on the beefy side for Strat sizing and might provide a tight fit for import guards. Check the measurements provided; some light filing and careful installation or handling may be required depending on your guard.

This pickup style is available in other colors as well as set quantities for savings and convenience. See our Reverb store for additional options or contact us with any questions.

~~Product Highlights~~

*6 String Passive Strat-Sized Humbucker Pickup

*Humbucking Performance in Strat Single Coil Size

*Dual Blade Rails ~ Full Coverage Playing Response

*AlNiCo 5 (A5 / AV) Bar Magnet Type

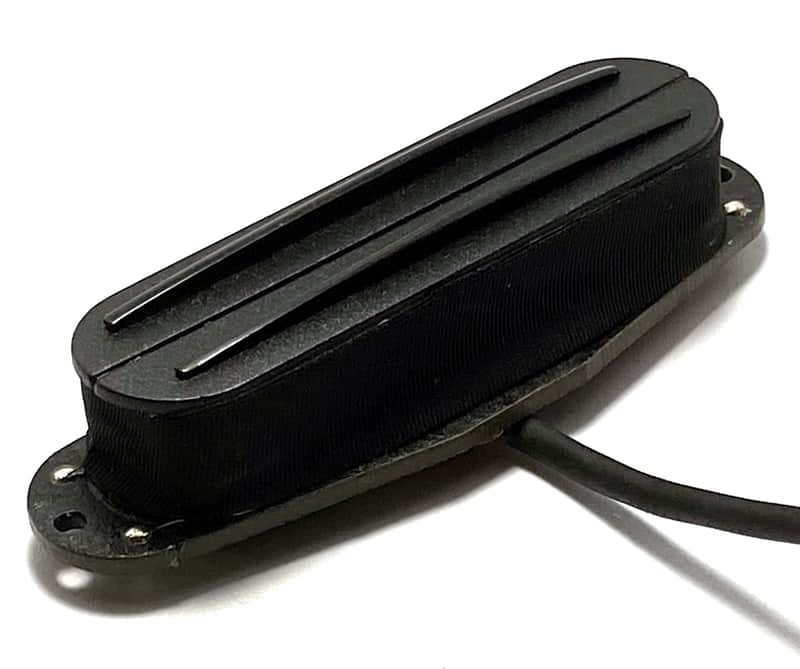

*Full Encompassing Bobbin ~ Tighter Fit Slot Style

*Hot Wound Steady Dynamic & Excellent Execution

*4 Conductor Wiring (4 Wire Pickup Design)

*Coil Split Capable

*Wax Potted for Squeal Reduction / Avoidance

*Position Interchangeable ~ Flexible Installation Options

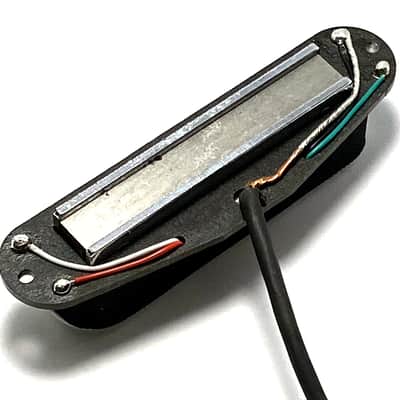

*Upgraded Fiber Baseplate

*Larger Strat-Sized Slot Fit ~ May Require Slight Pickguard Modification Depending on Existing Slot Style (Not Tele-Sized!)

*Standard Insulated Lead Wire (Modern Stranded Style)

*Pickup Mounting Screws & Springs Included (Screw Color Matches Rail Color Unless Otherwise Requested)

*500K Pots & 0.047 Tone Caps Recommended (Available Separately)

~~Approximate Measurements~~

*Output: Wound to ~11.8K

*Rail Length: 59mm

*Pickup Length: 70mm (83mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 19mm (22mm including rail)

*Mounting Screw Spacing: 76mm

Measurements provided are approximations; variability is to be expected. Please check your measurements and available spacing carefully as these pickups are slightly fuller than non-encompassing styles. Depending on your set-up, you may have to make adjustments to ensure proper fit.

~~Installation Information~~

The included pickup wire color codes will let you know the hot, ground, and coil split wire colors for these four-wire Dragonfire pickups. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use the basic wire color code information we provide to match up with any diagram or instructions you choose to use.

Please note that different manufacturers and pickup styles use different wire color code systems. It is important to use the Dragonfire wire color codes provided with your order. If you incorporate one of our strat-sized humbuckers into an existing system or in a set with a different brand of pickup, optimal system performance may require phasing adjustment. Let us know if you have any questions prior to purchase.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

These humbuckers allow coil-splitting functionality for expanded wiring and playing options (pickup wire color codes provided, instructions not included). If you’d like to update your wiring and have us create a new wiring system for you, check out our Wiring Harnesses.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice.
