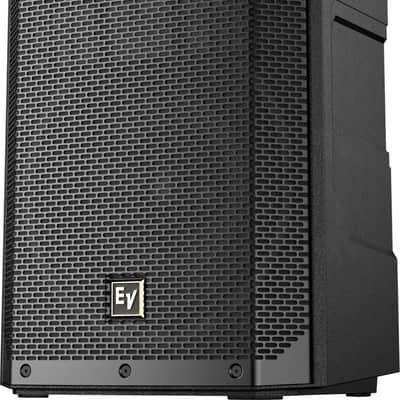

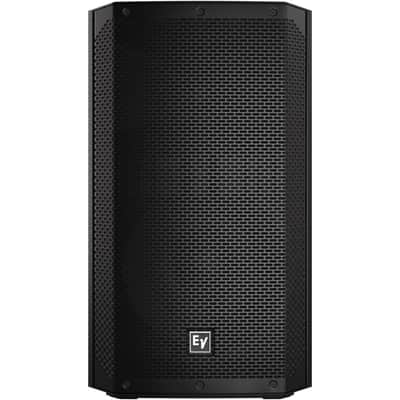

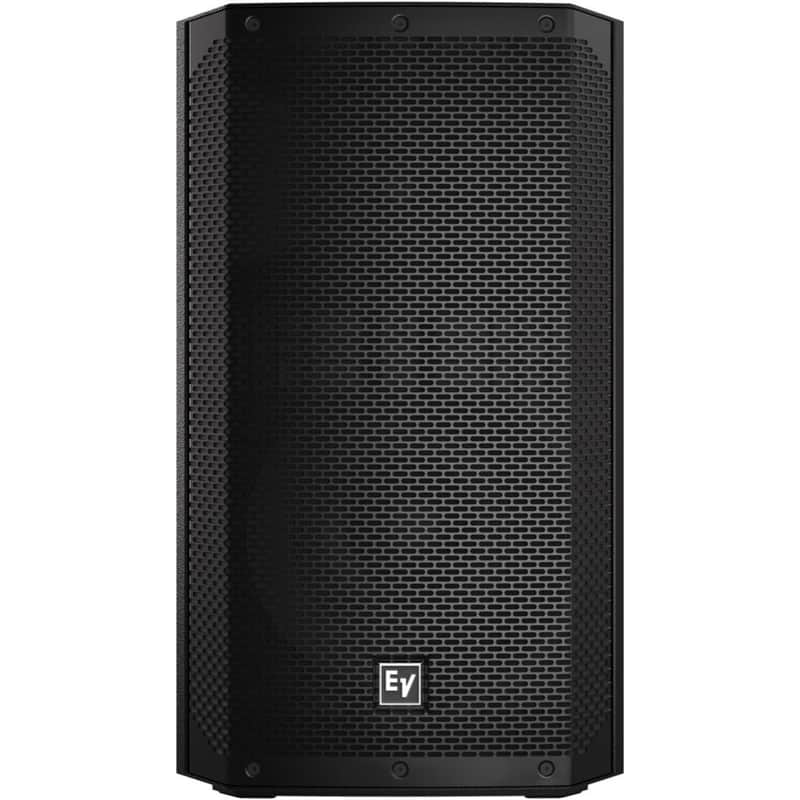

Part of the ELX series, the Electro-Voice ELX200-12 passive PA speaker is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components -- tested to levels far exceeding the industry norm -- make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole -- the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness -- both acoustically and physically; maximum efficiency with maximum toughness.

Unpowered. Requires separate power amplifier.

Features:

- 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.

- 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.

- High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.

- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

Specs:

- Coverage (Nominal -6 dB) V: 60*

- Crossover Frequency: 1700Hz

- Depth: 344mm (13.54")

- Enclosure Material: Polypropylene Composite

- Family: ELX200

- Frequency Range (-10 dB): 51 Hz - 20 kHz

- Frequency Response (-3 dB): 57 Hz - 16 kHz

- Grill: 18 AWG steel with powdercoat

- Height: 629mm (24.76")

- HF Transducer: DH-1C 1-inch titanium compression driver

- LF Transducer: EVS-12M 300 mm (12 in)

- Max. SPL/1m: (calc) 130dB

- Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A

- Power Rating: 1200W

- Powered or Passive: Passive

- Shipping Weight: 17.7kg (39.02 lbs)

- Speaker Type: Full-Range

- Suspension: (3) M10 suspension points

- Weight Net: 15.6kg (34.39 lbs)

- Width: 363mm (14.29")

- Woofer Size: 12inch

Open Box (Like New):

• Open Box (Like New) gear is typically a customer return.
• This inventory includes all parts, components, manuals (hard copy or downloadable).
• However, the packaging may be slightly compromised and thus not in absolutely perfect, unused condition like our new inventory.
• The images in this listing are of a brand new version of this model.
• This inventory is a great value.
