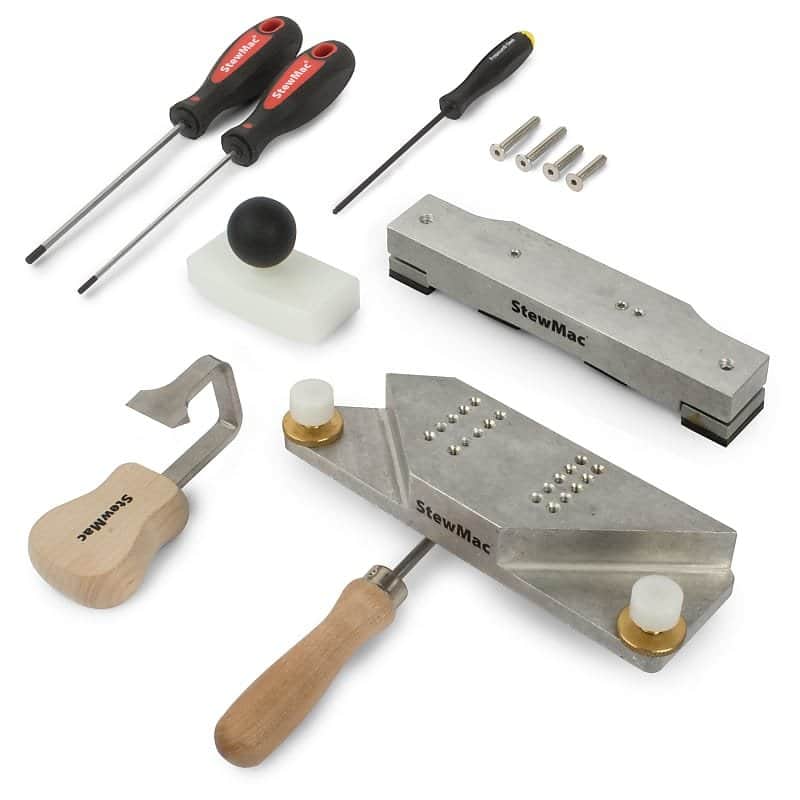

StewMac Acoustic Bridge Tools, Complete Set

Pro tools for better bridge repairs!

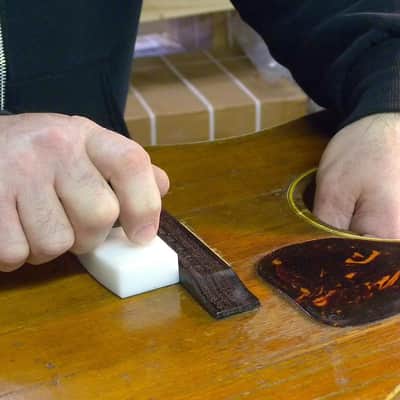

Heat out an old bridge plate: Heat the 3-in-1 Caul to soften the glue holding the bridge plate. The caul fits over the plate, between the guitar's x-braces. Machine screws through the bridge pin holes keep it in position while the heat releases the glue. Work the bridge plate out using the Bridge Plate Chisel backed up by the Top Support Dolly.

Install a new bridge plate: The 3-in-1 Caul is perfectly shaped for gluing a new bridge plate. It covers the plate with a strong, uniform pressure. Machine screws through the bridge pin holes draw the caul firmly up against plate — no clamp needed.

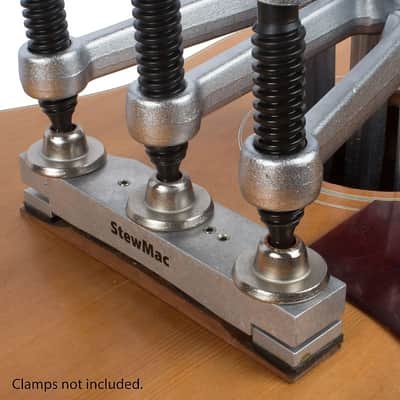

Glue an acoustic bridge: The Bridge Clamping Caul evenly distributes clamping pressure across the bridge, working with one clamp or multiple clamps. The caul's shaped, padded underside conforms to the contours of most bridges. Add extra pressure at the bridge ends with the caul's built-in wing clamps. The 3-in-1 caul distributes the clamping pressure inside the guitar, and adjustable thumbwheels provide support at the ends of the bridge.

3-in-1 Caul Specs

• Size: 6.5" x 2" (165mm x 50mm)
• Shaped to fit X-braces; works on other bracing patterns too
• Machine screws and adjustment wrench included
• Drilled and tapped for a wide variety of bridge placements
• Removable handle for handling while heated

Bridge Clamping Caul Specs

• Size: 5-7/8" x 1-1/4" (149mm x 32mm)
• Solid aluminum
• Rubber pads are non-reactive with instrument finishes
• Two hex wrenches included for wing clamps and index screws

Bridge Plate Chisel and Top Support Dolly Specs

• 1" wide hardened steel chisel
• 3" wide non-scratch polyethylene dolly
• Comfortable grips on both tools

Product instructions are included.
