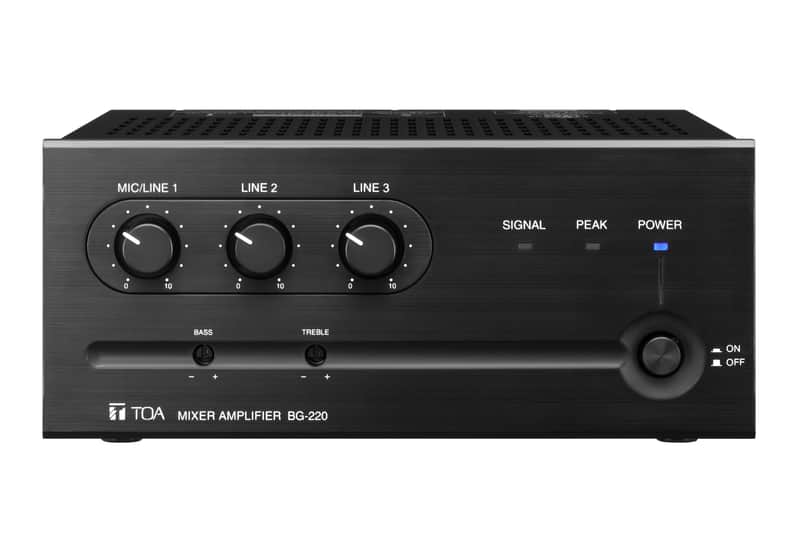

Toa-Electronics BG-220 CU - BLACK

Toa Electronics BG-220 Amplifier & Mixer

Key Features

• For Installed Sound Applications
• 20 Watts
• 4 Ohm, 25V & 70V
• Line / Mic Input
• 2x Line Inputs with RCA Inputs
• Terminal Block Connectors
• Recessed Bass & Treble Control

Toa Electronics BG-220 Overview

The TOA BG-220 Amplifier provides 20 watts of power to 4 ohm, 25 & 70V speakers in installed sound applications. The amplifier features a line / mic switchable input, and 2 line inputs with individual volume control and recessed treble & bass controls. Amplify background music in restaurants, commercial retail spaces, bars and more. The TOA BG-220 features removable terminal block connectors and is ideal for amplifying audio in a specific zone, or as the main amplifier in any commercial sound / paging audio system.

Massive Power supply for high-quality, reliable sound All inputs and outputs on removable Euro-block connections for easier installation3x Inputs: Mic/Line 1 w/ Balanced phoenix input and Manual Mute Trigger; Line 2 w/ phoenix & RCA summing connector; Line 3 w/ phoenix & RCA summing connector Input 1 selectable between Mic/Line input level MOH/Zone2 balanced line output assignable via rear-panel dip switches. Selects any or all three input channels-no muting. Can be used for Music on Hold or 2nd Zone Mute receive assignable for channels 2 & 3 on rear-panel dip switches. Mute can be activated via "VOX" or "Contact In" signal Mute Sensitivity and MOH/Zone 2 are both level adjustable Power outputs available at 4 Ohm, 25V & 70V for more system flexibility Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones Input Signal present, Peak & Power On indicators on front panel Supplied security cap (YA-920 x1) for volume knob to prevent unauthorized adjustment Thermal and overload protection Optional Rack-mount kits for single unit (MB-25B-BK), or dual (MB-25B-J)UL/CUL Approved

BG-220 Amplifier & Mixer SPEC

Toa Electronics BG-220 Specs Amplifier Form Factor/Type Table top Number of Channels3Power Rating20 W Load Impedance / Voltage4 Ohms
25 / 70 VPerformanceFrequency Response50 Hz to 20 kHzI/O ImpedanceMOH Output:
600 Ohms (Balanced)
Line Output:
600 Ohms (Unbalanced)Input Level Mic:
-60 dB
Line:
-10 dBSNR≥ 60 dB Signal ProcessingEQ2-BandConnectivityAudio I/O1 x Block 3-Pin Balanced MOH Output (Detachable)
1 x Block 2-Pin Line Output (Detachable)Speaker Outputs1 x Block 4-Pin Balanced 4-Ohm/25 V/70 V (Detachable)PowerAC Input Power120 VAC, 60 HzPhysicalDimensions8.3 x 3.7 x 10.4" / 210.0 x 94.3 x 265.0 mmWeight7.7 lb / 3.5 kgPackaging InfoPackage Weight9.02 lbBox Dimensions (LxWxH)13.65 x 11.1 x 4.8"
