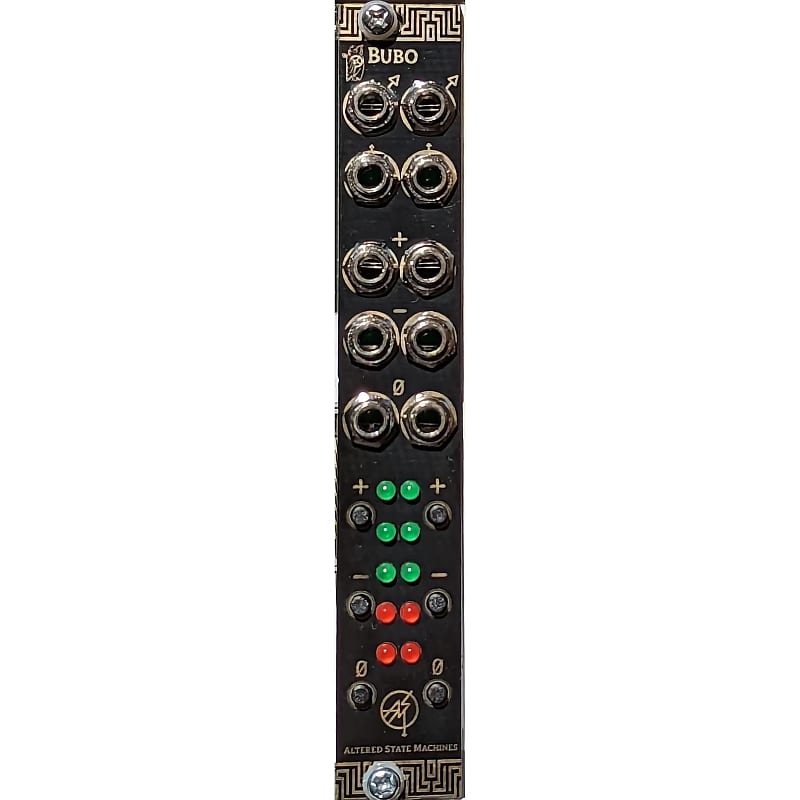

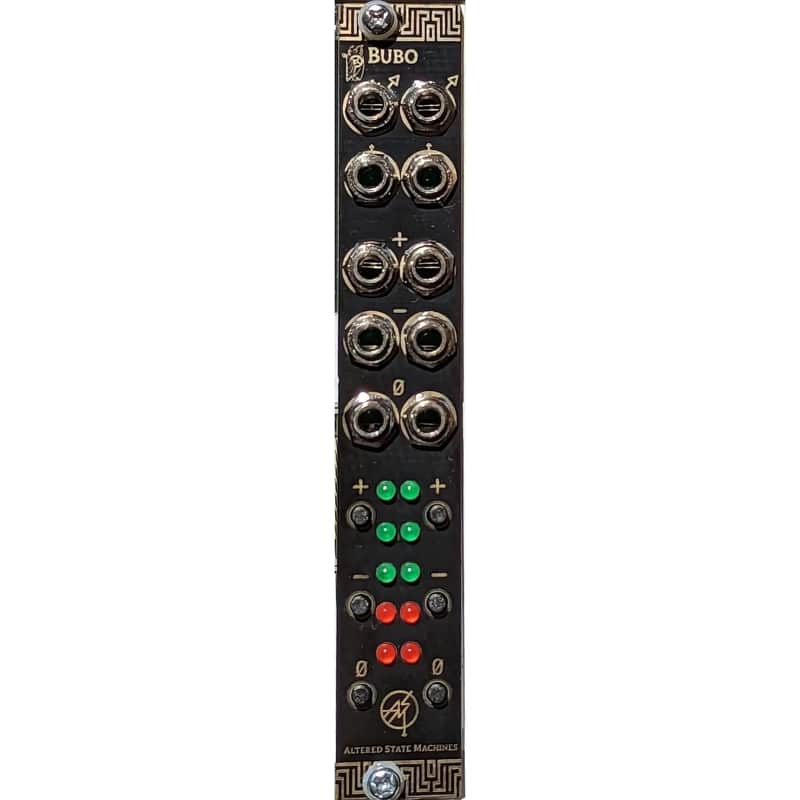

Altered State Machines Bubo 2023 - black and gold

Altered State Machines Bubo is a dual channel octave switcher for the Eurorack modular format capable of providing accurate voltage offsets in intervals of +/- 1V.

Each of the two channels has individual tactile switch controls to increment or decrement the offset as well as a button to return to zero offset. Each channel also has signal inputs that respond to triggers and rising edges of gates, which can be used to automate these functions.

Bubo can add an offset of up to +/- 2V to whatever input signal is passed through it and has a full swing input range of +5V to -5V, and resulting output range of +7V to -7V.

Features:

- 2 inputs.
- 2 outputs.
- Dedicated up and down buttons for each channel.
- Dedicated return to zero offset buttons for each channel.
- Individual trigger inputs for each function. Return to zero for channel A is normalled to channel B for ease of use.

Bubo is 4hp and has a depth of 42mm.

Please see our website at AlteredStateMachines.net/bubo for links to ModularGrid.
