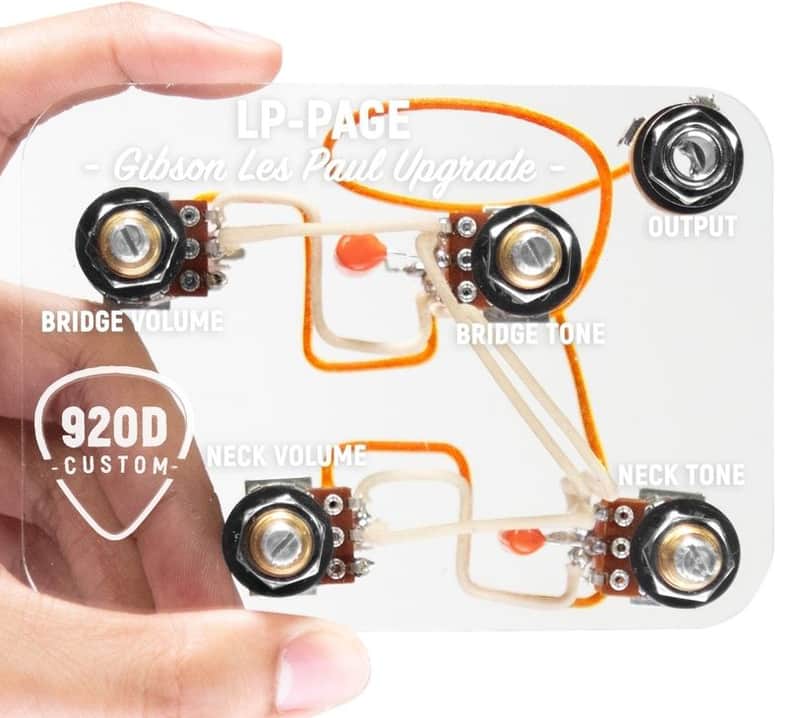

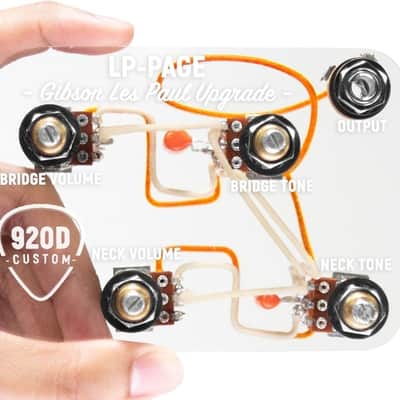

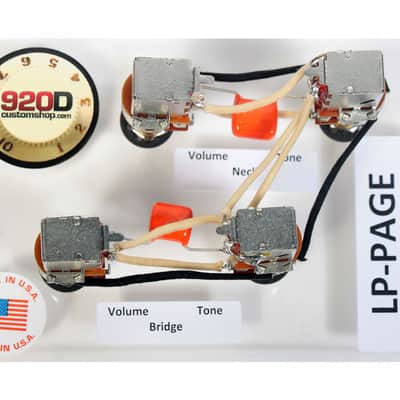

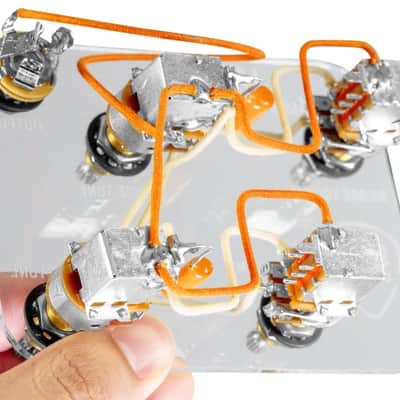

920D Custom LP-JP Les Paul Wiring Harness

Revolutionize your Les Paul with this upgraded LP-JP wiring harness. This is a Jimmy Page style setup that provides several new tonal configurations to help you dial in your tone. The Bourns Push/Pull pots allow you to split your humbuckers into single coil pickups, allows both pickups to be put out of phase, and can put both pickups in series as well. With 21 tonal variations, this upgraded wiring harness will give you and your Les Paul a library of tones to choose from.

Components

• 4 - Bourns Push/Pull 500K Pots
• 1 - .015µF Orange Drop Capacitor by Sprague Electric (Neck)
• 1 - .022µF Orange Drop Capacitor by Sprague Electric (Bridge)
• 1 - Pure Tone Output Jack
• 920D Custom Signature Wiring by Gavitt Wire

920D Custom Signature Wiring

All 920D Custom products are highlighted with our signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture our signature cloth covered pushback wire, and we believe it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.

920D Custom 450G Series Potentiometers

920D Custom potentiometers are used in this build. Our pots are manufactured by CTS to our exact specifications and are metered for accuracy before being used in any 920D Custom gear.

We specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep.

We hold potentiometer tolerances to ±10%. The industry standard is ±20%. Tightening potentiometer tolerances will help you accurately shape your tone.

Pure Tone 1/4” Output Jack

We exclusively use Pure Tone output jacks in all builds. Why? Because they’re unquestionably better than the old, industry standard. Period.

We’ve all heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded ¼” plug. Pure Tone has completely changed that.

Pure Tone’s multi-contact ¼” output jack has 4 rounded contact points that hold the ¼” plug firmly in place. With 4 times the contact points, all of the dreaded cracks, snaps, and pops are gone for good. Trust us, the second you plug into this jack, you’ll never want to go back.

Hand-Built In The U.S.A.
