XODES MLB

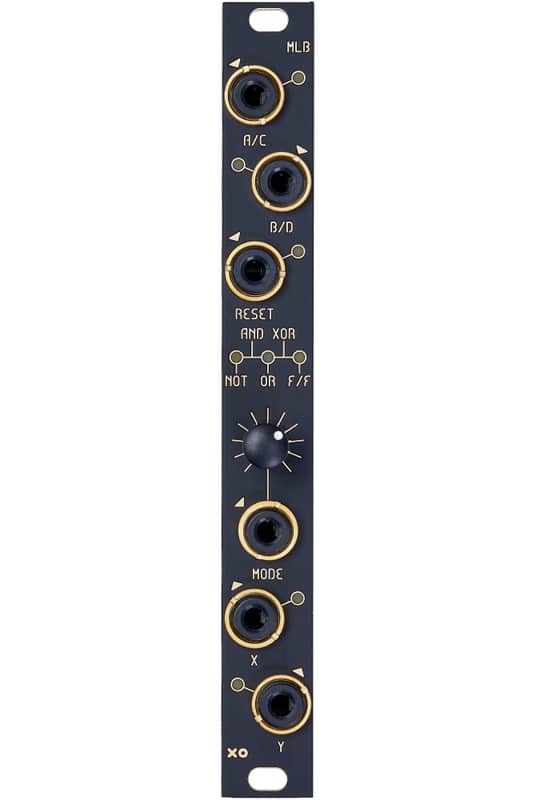

MLB is a boolean logic module, similar to the bigger LB5 – but instead of simultaneous outputs for the different functions the MLB only has one output for which you select the mode.

What seems to be a limitation in the first place, actually is pretty interesting when you realize that the mode selection is CV-able. The potentiometer selects between the different modes and acts as an attenuator when a signal is fed to the MODE input.

Functions are:

• dual inverters


• AND / NAND


• OR / NOR


• XOR / XNOR


• D-type flip-flop







HE: 3 TE: 3 Depth: 35 Power consumption +12V: 40
