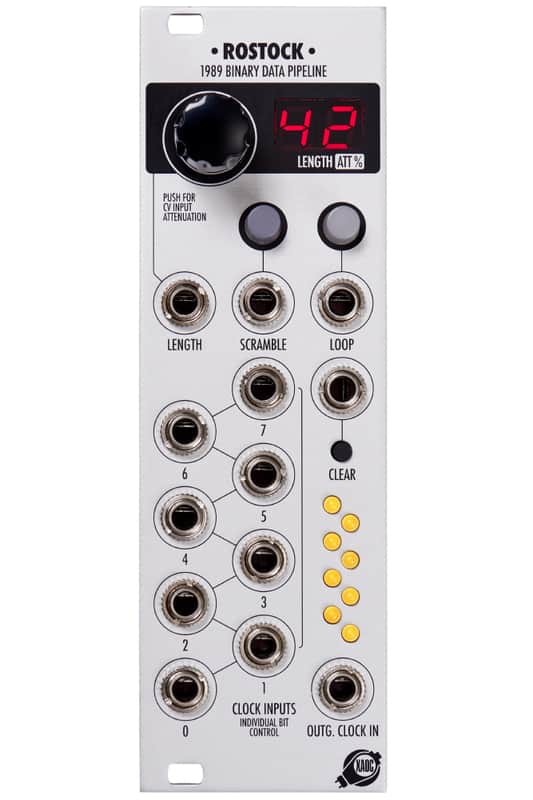

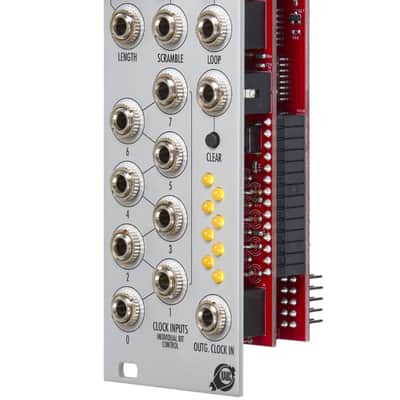

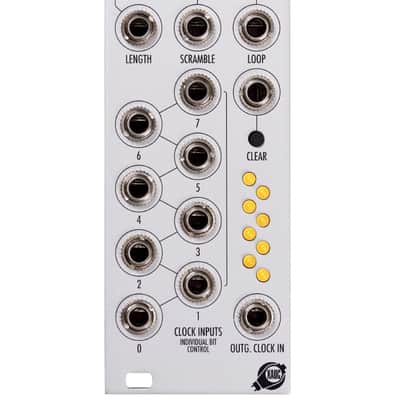

XAOC Devices ROSTOCK

Xaoc Devices give the ultra Nerds Rostock - a FIFO shift register with variable length (1-64 stages).



Important: Rostock is a part of the Leibniz Binary Subsystem. It MUST be connected to another module of this series (ideally: Drezno (II)). You may have seen the modus operandi of a shift register before. BBD Delays or Analog Shift Registers work in a similar manner. With each clock tick, data is passed on to the next stage - until it falls out the back and is "forgotten". In the case of the Rostock these are ones and zeros, which can represent rhythms, CVs, audio-rate signals or even video signals depending on the integration. The module is easily clockable up to 2Mhz. In principle it is a very short delay or a very small memory, but it can also be looped or fed back. With creative patching techniques you can build chaos/random generators, sequence automations etc. out of it. Especially since each of the bit lines has its own clock input. Mighty, but also mighty abstract.

MAIN FEATURES

• Leibniz Binary Subsystem component


• Shift register / delay memory of up to 64 stages


• Voltage controlled length


• Via Feedback: Looping and scrambling


• Optional individual clock input to each bit line

HE: 3 TE: 8 Power consumption +12V: 70 Power consumption -12V: 40
