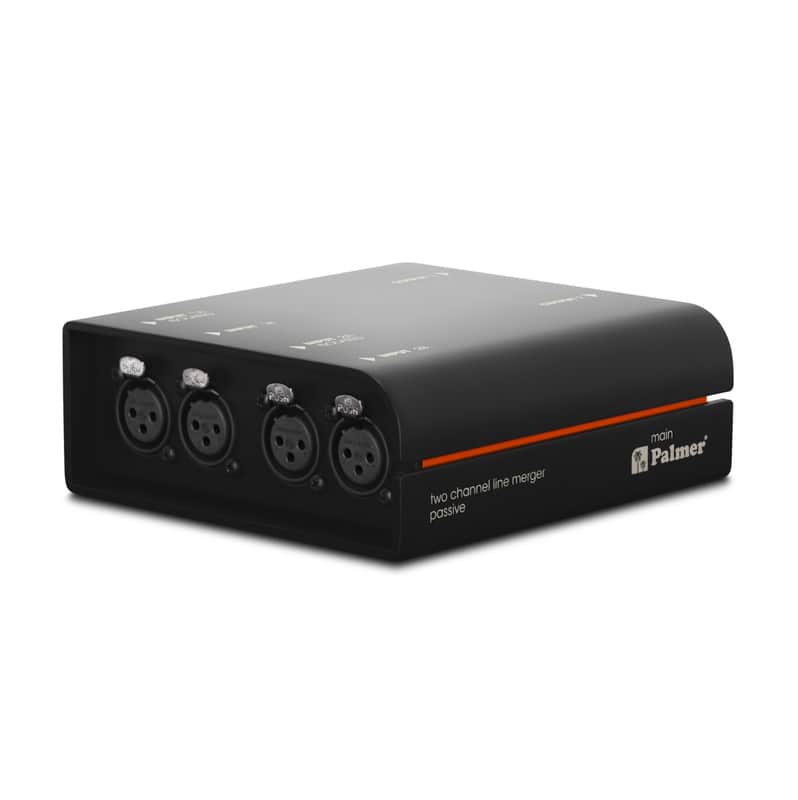

Palmer RIVER main Passive 2-Channel Line Merger

RIVER main Passive 2-Channel Line Merger
Merge two stereo signals on one output pair

Allows the combination of two devices, e.g. two mixers to a PA System

Galvanic transformer isolation of outputs

Switchable ground lift to isolate ground loop hum

Neutral soundHigh headroom (+20 dBu max. input level)

Passive construction, no power supply required

Extremely fail-safeSolid casing made of aluminium and steel

Engineered in Germany

Description

Sometimes it is necessary to send two stereo signals to one device, for example, when two mixing consoles have to drive a stereo power amplifier. In practice, this is rarely possible without ground loops occurring. The Palmer main solves this type of problem. It mixes two stereo input signals via a resistor matrix, whereby the input pair A is galvanically isolated by a transformer in order to avoid ground loops.

The Palmer main works purely passively. The result is a particularly low noise floor and a neutral sound. Thanks to large transformers, it can handle high-level signals up to +20 dBu without distortion. The transformers also make it possible to assign the input pair A unbalanced while the output signal remains balanced.

The passive mode of operation without a power supply makes the Palmer mainparticularly reliable and failure-proof. The aluminium/steel housing and XLR sockets are also best suited to the rough everyday life on stage. The Palmer mainmerge box solves typical sound reinforcement problems in the simplest way with uncompromised sound quality.
