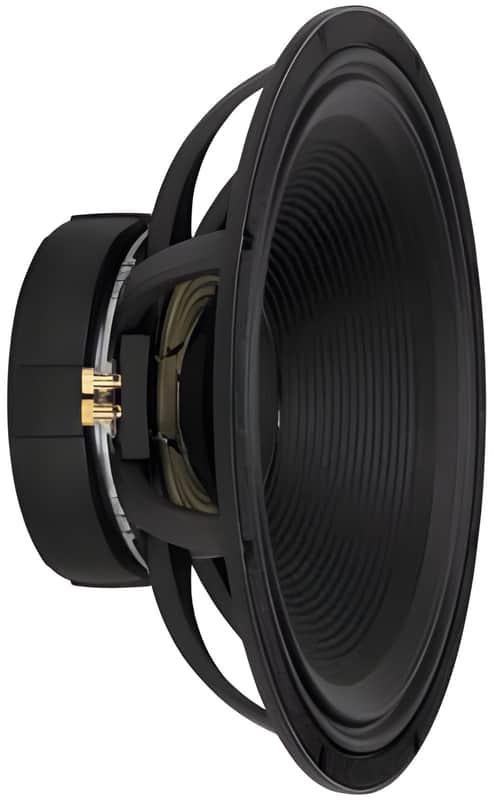

Peavey 15" Low Rider 3200 Watt Peak 8 Ohm Subwoofer Speaker

Overview

The Peavey 15" Low Rider Subwoofer offers impressive performance and specifications for audio enthusiasts. With an impedance of 8 Ohms, it can handle substantial power loads: 3200 W Peak, 1600 W Program, and 800 W Continuous. The sensitivity of 93.6 dB ensures a powerful output.

The subwoofer's usable frequency range spans from 30 Hz to 1 kHz, making it suitable for deep bass reproduction. It features a Kevlar® impregnated cellulose cone and a 4.0" / 100 mm voice coil diameter. The voice coil is made from Polyimide coated copper ribbon wire, with a Polyimide-impregnated fiberglass former and a Nomex® stiffener. Solderless diffusion welded OFHC copper leads contribute to its durability and performance. This subwoofer is designed to deliver robust and impactful low-frequency sound, making it a valuable addition to audio setups.

Specifications

• Impedance: 8 Ohms

  • Power Capacity:
  • Peak: 3200 W
  • Program: 1600 W
  • Continuous: 800 W


• Sensitivity: 93.6 dB
• Usable Frequency Range: 30 Hz ~ 1 kHz
• Cone Material: Kevlar® impregnated cellulose
• Voice Coil Diameter: 4.0" / 100 mm

Voice Coil Materials

• Coating: Polyimide coated copper ribbon wire
• Former: Polyimide-impregnated fiberglass
• Stiffener: Nomex®
• Leads: Solderless diffusion welded OFHC copper

Weights and Dimensions

• Net Weight: 21 lbs. / 9.5 kg
• Unpacked Weight: 16.98 lb / 7.7 kg
• Packed Weight: 18.08 lb / 8.2 kg
• Width Packed: 17.52" / 44.5 cm
• Height Packed: 18.307" / 46.5 cm
• Depth Packed: 7.087" / 18 cm
• Diameter: 15" (Subwoofer)

Thiele/Small Parameters

• Revc (ohms): 6.21
• Sd (Square Meters): 0.084
• BL (T/M): 22.73
• Fo (Hz): 33.9
• Vas (liters): 155.1
• Cms (uM/N): 154.8
• Mms (gm): 142.30
• Qms: 10.67
• Qes: 0.364
• Qts: 0.352
• Xmax (mm): 9.6
• Le (mH): 0.82
• SPL (1W 1m): 93.6
• No (%): 1.33%
• Vd (cu. in. / ml): 98.3 / 1611
• Pmax (Watts pgm.): 1600
• Disp (cu. in. / ml): 204 / 3344
