Blackmagic Desig BMD-CINEURSAMWC6KG2 - Black

Note Brand New in Box full factory warranty box got damp!

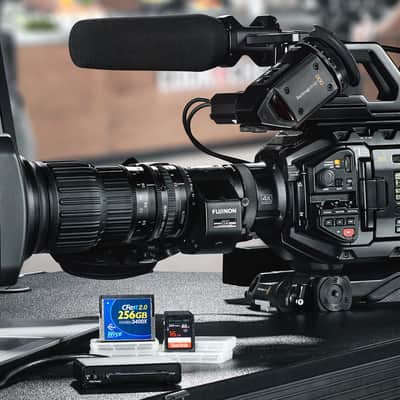

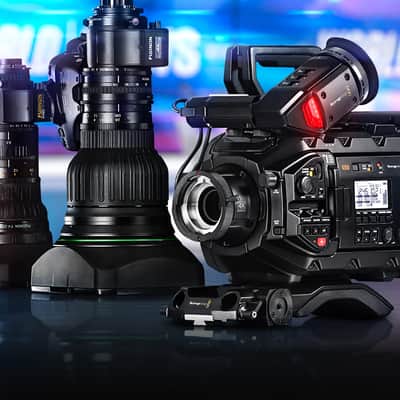

Blackmagic Design URSA Broadcast G2 is a powerful camera designed for both traditional and online broadcasters. It features a 3 cameras in 1 design which allows it to work as a 4K production camera, a 4K studio camera, or a 6K digital film camera! You can record to common SD cards, UHS-II cards, CFast 2.0 cards, or external USB disks, using common file formats such as H.265, ProRes, and Blackmagic RAW. You can even change the lens mount making it extremely flexible!

URSA Broadcast G2 features high-quality neutral density (ND) filters that let you quickly reduce the amount of light entering the camera. The ¼, 1/16th, and 1/64th stop filters have been designed to match the image sensor and color science of URSA Broadcast G2, providing extra latitude and better colorimetry. The IR filters have been created to evenly filter both optical and IR wavelengths, eliminating IR contamination.

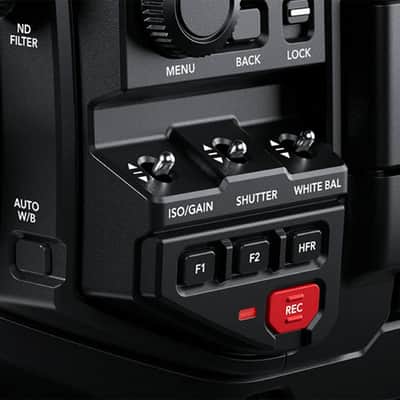

URSA Broadcast G2 is made from a strong, lightweight magnesium alloy body that’s designed to be comfortable all-day use. It features externally mounted switches and controls that give you direct access to critical camera settings. Also featured is a foldout touchscreen for monitoring, viewing camera status, and changing settings by screen menus.

With Blackmagic OS, you get a user-friendly camera operating system. Blackmagic OS allows all camera features to run independently for smoother control. It features the same controls and menus as other Blackmagic Design cameras so you can switch between cameras on set easily. The interface uses simple tap and swipes gestures to adjust settings, add metadata and view recording status. You also have full control over advanced camera features such as on-screen focus and exposure tools, 3D LUTs, HDR, metadata entry, timecode, and Blackmagic RAW settings.

All URSA cameras support a variety of battery plates from manufacturers including IDX, Blueshape, Anton Bauer, and more. A V-Lock battery plate is installed on the camera but can be changed to an optional Blackmagic URSA Gold Battery Plate. All Blackmagic battery plates are designed to mount directly onto the camera. The URSA Broadcast G2 includes a 4-pin XLR power connector that supports 12V to 18V for connecting external power supplies and battery packs. With its standard power connector, you can use the camera with your existing power supplies and batteries. For live production, the optional add-on fiber converter can power the camera from up to 2 km away via a single SMPTE fiber cable!

Includes DaVinci Resolve Studio. Get Professional Editing, Color Correction, Audio Post, and VFX!

Key Features

• 6K CMOS Sensor, Dual Native ISO
• 2/3" B4 Lens Mount & Active EF Mount
• 6K Blackmagic RAW Recording
• Records to ProRes, H.265/264
• 12G-SDI Input & Output, Genlock/Timecode
• 13 x Stops of Dynamic Range
• 2 x UHS-II SD, 2 x CFast 2.0 Slots
• Built-In 2/4/6-Stop ND Filters
• XLR Inputs, 3.5mm Audio Output
• ProRes Recording up to 1080p120

Blackmagic Design URSA Broadcast G2 SpecsKey SpecsLens MountB4Image Sensor23.1 x 12.99 mm (Medium Format) CMOSISO Sensitivity400 to 3200 (Extended: 100 to 25,600)Internal Recording ModesBlackmagic RAW 10-Bit
6144 x 3456 up to 50 fps [65 to 483 Mb/s]
6144 x 2560 up to 59.94 fps [49 to 359 Mb/s]
5376 x 3024 up to 59.94 fps [51 to 371 Mb/s]
3728 x 3104 up to 59.94 fps [36 to 265 Mb/s]
3840 x 2160 up to 59.94 fps [32 to 190 Mb/s]
1920 x 1080 up to 150 fps [5.2 to 47 Mb/s]
ProRes 422/ProRes 422 HQ
3840 x 2160 up to 59.94 fps [73.6 to 110 Mb/s]
1920 x 1080p up to 59.94 fps [18.4 to 27.5 Mb/s]
1920 x 1080p up to 120 fps [18.4 to 27.5 Mb/s]
H.265
3840 x 2160 up to 59.94 fps [3.2 to 7.8 Mb/s]
H.264
1920 x 1080p up to 59.94 fps [1.8 to 7 Mb/s]Show MoreMedia/Memory Card SlotDual Slot: SD/SDHC/SDXC (UHS-II)
Dual Slot: CFast (CFast 2.0)Mobile App CompatibleYes: iPadOS Only
App Name: Blackmagic Camera Control App
*As of April, 2023: Check with manufacturer for the most up-to-date compatibilityShow MoreBattery TypeV-MountImagingLens MountB4Lens CommunicationYesSensor ResolutionNot Specified by ManufacturerImage Sensor23.1 x 12.99 mm (Medium Format) CMOSImage StabilizationNoneBuilt-In ND FilterMechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND FiltersCapture TypeStills & VideoExposure ControlShutter TypeElectronic Rolling ShutterISO Sensitivity400 to 3200 (Extended: 100 to 25,600)Gain-6 to 18 dBAdvertised Dynamic Range13 StopsVideo CaptureInternal Recording ModesBlackmagic RAW 10-Bit
6144 x 3456 up to 50 fps [65 to 483 Mb/s]
6144 x 2560 up to 59.94 fps [49 to 359 Mb/s]
5376 x 3024 up to 59.94 fps [51 to 371 Mb/s]
3728 x 3104 up to 59.94 fps [36 to 265 Mb/s]
3840 x 2160 up to 59.94 fps [32 to 190 Mb/s]
1920 x 1080 up to 150 fps [5.2 to 47 Mb/s]
ProRes 422/ProRes 422 HQ
3840 x 2160 up to 59.94 fps [73.6 to 110 Mb/s]
1920 x 1080p up to 59.94 fps [18.4 to 27.5 Mb/s]
1920 x 1080p up to 120 fps [18.4 to 27.5 Mb/s]
H.265
3840 x 2160 up to 59.94 fps [3.2 to 7.8 Mb/s]
H.264
1920 x 1080p up to 59.94 fps [1.8 to 7 Mb/s]Sensor Crop While Recording4K (3840 x 2160) in 16:9 When Recording in RawBroadcast OutputNTSC/PALBuilt-In Microphone TypeStereoAudio RecordingProRes: 2-Channel 24-Bit 48 kHzIP StreamingNoneInterfaceMedia/Memory Card SlotDual Slot: SD/SDHC/SDXC (UHS-II)
Dual Slot: CFast (CFast 2.0)Video I/O1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) OutputAudio I/O1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera BodyPower I/O1 x XLR 4-Pin Input
1 x XLR 4-Pin (12 to 20VDC) Output
1 x Molex 12-Pin InputOther I/O1 x USB-C (USB 3.2 / 3.1 Gen 2) Video Output
1 x USB-C Data Input
1 x 2.5 mm Sub-Mini (LANC) Control Output
1 x BNC (Reference, Sync, Timecode) Data Input
1 x Hirose 12-Pin (Camera Interface) Control OutputWirelessBluetooth ControlMobile App CompatibleYes: iPadOS Only
App Name: Blackmagic Camera Control App

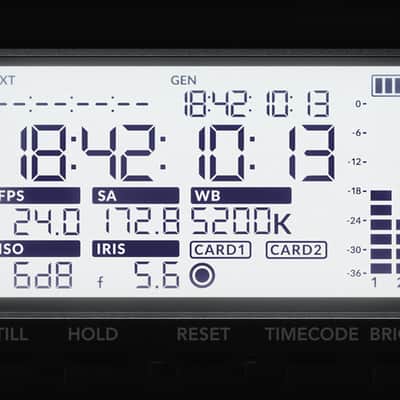

*As of April, 2023: Check with manufacturer for the most up-to-date compatibilityGlobal Positioning (GPS, GLONASS, etc.)NoneMonitorDisplay Size4.0"Display TypeArticulating Touchscreen LCDSecondary DisplaySide: LCD Status DisplayViewfinderTypeOptional, Not IncludedFocusFocus TypeAuto and Manual FocusFocus ModeAutomatic, Manual FocusEnvironmentalOperating Temperature32 to 104°F / 0 to 40°CStorage Temperature-4 to 113°F / -20 to 45°COperating Humidity0 to 90%GeneralBattery TypeV-MountPower Consumption100 WTripod Mounting Thread3 x 1/4"-20 Female (Bottom)Accessory Mounting Thread1 x ARRI/Hirth RosetteNetflix ApprovedYesMaterial of ConstructionMagnesium AlloyDimensions (W x H x D)10.95 x 9.93 x 5.9" / 27.81 x 25.22 x 15 cmWeight7.83 lb / 3.55 kgPackaging InfoPackage Weight11.4 lbBox Dimensions (LxWxH)20.7 x 10.1 x 7.1"
