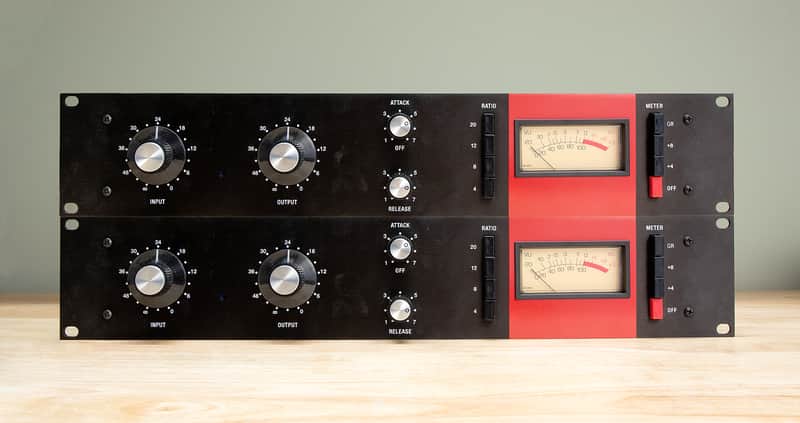

Hairball Audio 1176 Rev F Compressors (w/ Orange Drop Mod), Stereo Pair with Active Link Cards

1176 Rev F Stereo Pair with Active Link Cards - This is a brand new stereo pair of Hairball 1176 Rev F (with Orange Drop Mod) compressors with Purple Audio designed active link cards installed... plus a link cable. We are an authorized builder for Hairball and offer a one year warranty on all new units.

Made to Order: This item is a special order and can take up to 30 business days to ship. Since this is a custom unit, no returns are accepted unless it is defective. Custom units still have our one year warranty.

Faceplate Option: If you would prefer an all black faceplate - we can do that... just specify at the time of order. The power button will still be red, but other than that it will look more like a traditional Rev F.

Description: Traditionally, the Revision F has a black faceplate and looks just like the Revision D. In many cases, original units are confused for Rev C/D/E's with engineers mistakenly thinking of the revision F as a silver faced unit. To give this underrated revision a unique look, we've added a red stripe and red off button cap. Though the Revision F is cleaner than the A or D, it's not dull or boring. In fact, it's the favorite of many at Hairball Audio. It imparts that classic FET compression while adding a glossy, polished sound to the source material. Frankly, it makes everything sound like a better version of itself. A favorite of top engineers, including Bruce Swedien, this is a flavor unique to the predecessors. Like the Revision A and D, the input uses an O-12 transformer and the signal is attenuated at the input with a 600Ω T-pad. The output is class A/B, utilizing a B11184 output transformer.

The Orange Drop mod replaces some of the standard film capacitors with Orange Drop capacitors as used in the Rev A version. This adds in some of the harmonic distortion from the Rev A type circuit without the added noise.

• All the parts needed to complete the build
• Revision F (v1.12) PCBs designed by MNATS
• Black anodized front panel with red stripe made in Seattle, USA
• Custom 18 gauge steel zinc plated enclosure made in Seattle, USA
• Custom Ed Anderson O-12 reproduction input transformer made in the USA
• Custom Ed Anderson B11148 reproduction output transformer made in the USA
• Custom Ed Anderson 11754 reproduction power transformer made in the USA
• Custom BI Technologies T-Pad input attenuator
• Interlocking push button switches with “All Buttons In” mode
• Fully discrete audio path including capacitors selected by ear from Kemet, Nichicon, Panasonic, Vishay, United Chemi-Con and Elna
• Bourns trim pots
• Neutrik XLR connectors
• JST connectors and pre-assembled wire harnesses
• 120/240 voltage select switch
• 1% metal film resistors
• Matched FETs
• Authentic control knobs

Product Photos:  All photos of the product are original photos taken in-house of units built at Process Haus.

Warranty:  Parts and labor are covered for one year for component level failure due to normal operational use.
