MEC Power Block HB/10 Power Supply 10 Isolated Output 9V 12V 18V Effect Power Supply FALL Special $44.80

FALL SPECIAL $44.80

THUNDER AUDIO CANADA Power Block HB-10 Power Supply

Power 10 of your favorite effects with 1 simple unit.

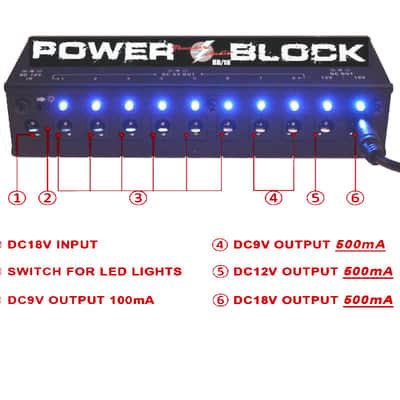

Outputs 1-7:

Standard 9V DC, 100ma output per outlet. These outputs will power the vast majority of analog pedals, and many digital pedals. The LEDs that accompany these outputs will illuminate when switched on, indicating normal functioning. If the corresponding LED flashes, it indicates instantaneous over current, in which case the output will limit itself to 100ma.

Output 8:

This is a 9V DC 500ma output. This is the output to use for pedals that draw more current (usually digital pedals). You are still able to power your lower current pedals with this output. Like the other outputs, the LED will illuminate when switched on, indicating normal functioning. If the corresponding LED flashes, it indicates instantaneous overcurrent, in which case the output will limit itself to 500ma.

OUTPUT 9: DC12 OUTPUT: The maximum output current is 100mA and is used for effects requiring 12V of power.

OUTPUT 10: DC18 OUTPUT:The maximum output current is 100mA for effects that carry this rating.

12V and 18V DC Outputs:

Some pedals can, or must run at higher voltages (contult your user manuals). Use the 12V output for these. The LEDs will illuminate when switched on, indicating normal functioning. If the corresponding LED flashes, it indicates instantaneous overcurrent, in which case the output will limit itself to 100ma for each of these outlets.

Short Circuit Protection:

All 10 outputs of this unit have separate short-circuit protection, i.e. a short circuit in one channel won’t affect the other channels’ function. When the LEDs are illuminated, the LED light of the short-circuited channel will turn off, while the lights of the other normally operating channels will remain on. This helps locating faults if short circuits occur among effects.

All outputs are fully regulated and offer Isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.

Features at a glance:

1. 10 outputs featuring isolated short-circuit and heat protection.

2. Rugged steel casing and new slim design.

3. Power options for 9V,12V or 18V  effects.

4. Bright Blue LED's For Pedal Board Lighting & Short Circuit warning Indicators.

5.Includes all necessary link power cables.

* As with any power supply, always check the power rating and polarity of your effects before introducing them to the Power Block HB-10 *

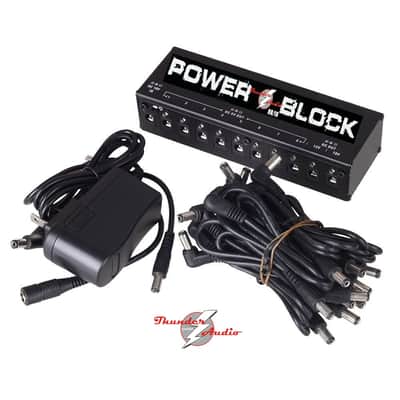

Package Contents:

1x Thunder Audio Power supply HB/10 module

1x DC power adapter

10x DC cables

2 polarity reversal cables and instructions.

Specifications:

Power: AC 110v-240v

Input: DC 18V

Dimensions: 150mm x 50mm x 30mm

Net weight: 388g

Colour: black

1 Year Warranty
