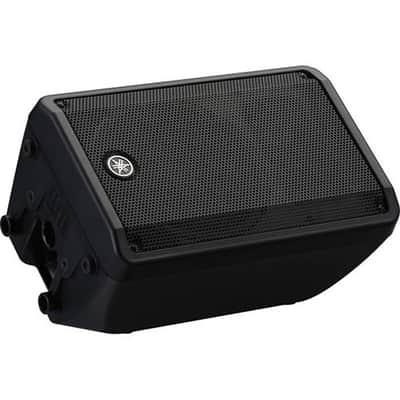

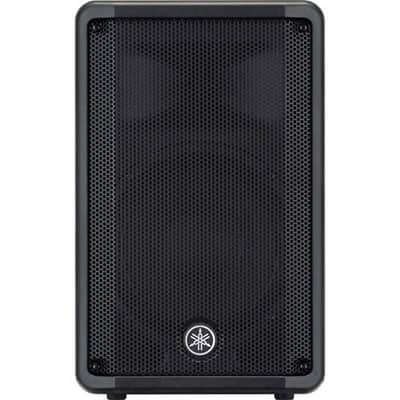

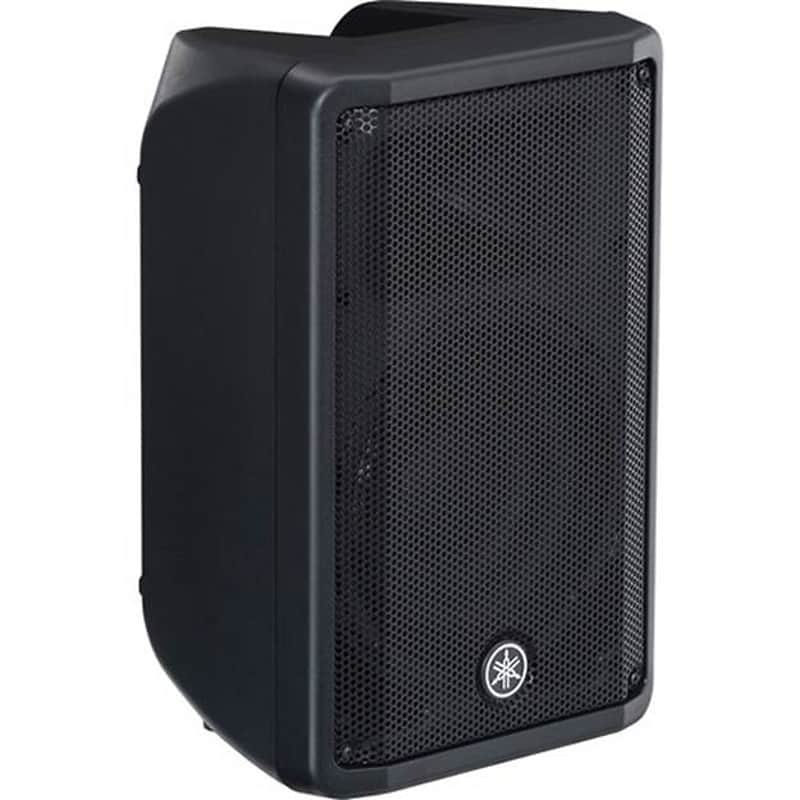

Yamaha DBR10 10" Powered 2 WAY Loudspeaker B-Stock W/Yamaha Warranty

Yamaha DBR10 10" Powered 2 WAY Loudspeaker B-Stock W/Yamaha Warranty

BRAND NEW MINT PERFECT B STOCK IN THE BOX WITH FULL YAMAHA WARRANTY



WE ARE AN AUTHORIZED YAMAHA DEALER



SUPER FAST AND FREE SAME DAY SHIPPING!



Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10" 2-Way Powered Loudspeaker from Yamaha is capable of up to 700W of dynamic output via its Class D amplifier. The loudspeaker features a 10" woofer and a 1" high-frequency driver and provides a maximum output of 129 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR10 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer

The woofer delivers defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

On-Board 2-Channel Mixer

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts





Speaker Type
 2-way, bi-amp powered speaker, bass-reflex type

Frequency Range
 55 Hz to 20 kHz (-10 dB)

Nominal Coverage Angle
 H: 90°
V: 60°

Components
 LF:
10" cone
2" Voice Coil
Ferrite magnet

HF:
1" diaphragm throat compression driver
Ferrite magnet

Crossover
 2.1 kHz: FIR-X tuning (linear phase FIR filter)

Output Power
 Dynamic: 700 W (LF: 500 W, HF: 200 W)
Continuous: 325 W (LF: 260 W, HF: 65 W)

Maximum Output Level
 129 dB SPL

I/O Connectors
 Input 1: 1x combination XLR/TRS
INPUT2: 1x combination XLR/TRS, 2x unbalanced RCA
OUTPUT: 1x XLR3-32 (CH 1 Parallel Through or CH 1 + CH 2 Mix)

Processors
 D-Contour
FOH/Main
Monitor
Off

Heat Dissipation
 Fan cooling, 4 speeds

Power Requirements
 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz

Power Consumption
 60 W (1/8 Power Consumption)
18 W (Idle)

Cabinet
 Material: Plastic

Handle
 1x Top

Mounting Hardware
 2x bottom mounted for M8 x 15 mm eyebolts

Pole Socket
 1x 35 mm, bottom

Dimensions (W x H x D)
 12.1 x 19.4 x 11.4" (308 x 493 x 289 mm)

Weight
 23.2 lb (10.5 kg)




Packaging Info

Package Weight
 30.75 lb

Box Dimensions (LxWxH)
