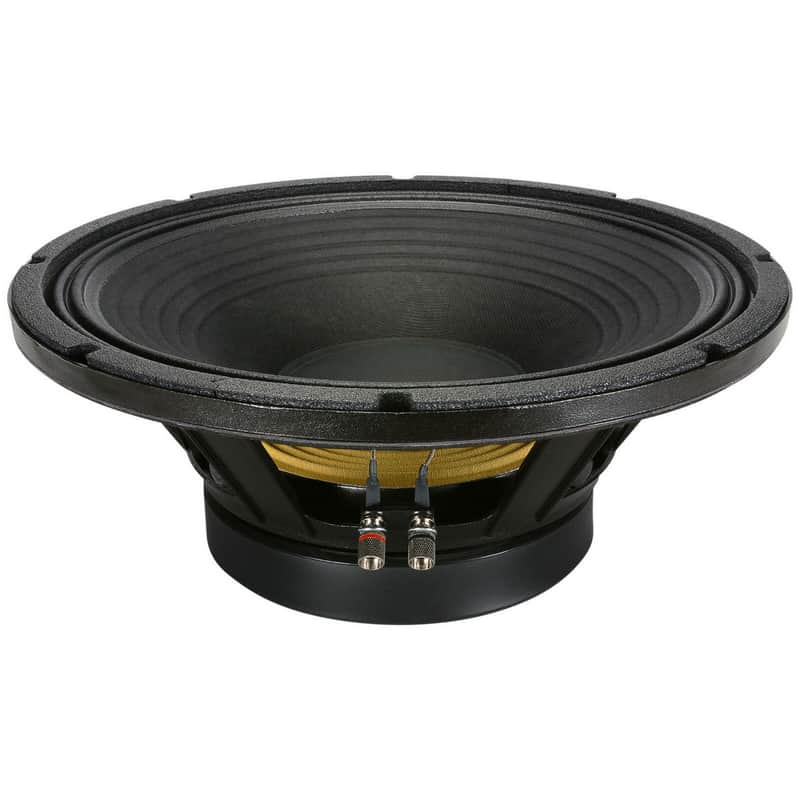

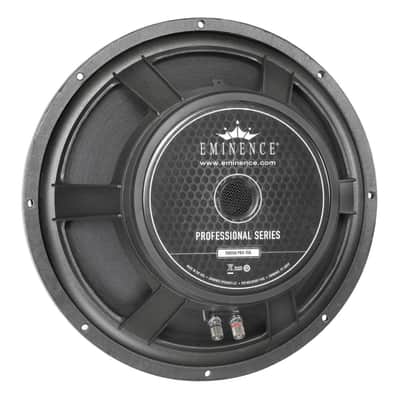

Eminence OMEGA PRO-15A 15" Woofer 1600W Pro Audio Speaker 8-Ohm

High power driver for pro audio as a woofer in vented enclosures. Also suitable for horn loading and scoops.

Specification Nominal Basket Diameter

• 15", 381 mm

Nominal Impedance*

• 8 Ohm

Power Rating Program Power

• 1600 W

Watts

• 800 W

Resonance

• 33 Hz

Usable Frequency Range

• 51 Hz - 1.7 kHz

Sensitivity*

• 97.3 dB

Magnet Weight

• 109 oz.

Gap Height

• 0.37", 9.5 mm

Voice Coil Diameter

• 4", 102 mm

Thiele & Small Parameters Resonant Frequency (fs)

• 33 Hz

DC Resistance (Re)

• 5.28 Ohm

Coil Inductance (Le)

• 1.04m H

Mechanical Q (Qms)

• 5.69

Electromagnetic Q (Qes)

• 0.33

Total Q (Qts)

• 0.32

Compliance Equivalent Volume (Vas)

• 258.5 liters / 9.13 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

• 411 cc

Mechanical Compliance of Suspension (Cms)

• 0.25 mm/N

BL Product (BL)

• 17.5 T-M

Diaphragm Mass Inc. Airload (MMs)

• 94 grams

Efficiency Bandwidth Product (EBP)

• 99

Maximum Linear Excursion (Xmax)

• 4.8 mm

Surface Area of Cone (Sd)

• 856.3 cm2

Maximum Mechanical Limit (Xlim)

• 12.2 mm

Mounting Information Recommended Enclosure Volume Sealed

• N/a

Vented

• 57-108 liters / 2-3.8 cu.ft.

Driver Volume Displaced

• 0.152 cu.ft. / 4.31 liters

Overall Diameter

• 15.21", 386.3 mm

Baffle Hole Diameter

• 14", 355.6 mm

Front Sealing Gasket

• Yes

Rear Sealing Gasket

• Yes

Mounting Holes Diameter

• 0.28", 7.1mm

Mounting Holes B.C.D.

• 14.56", 369.8mm

Depth

• 6.35", 161.3 mm

Net Weight

• 22.7 lbs, 10.3 kg

Shipping Weight

• 25.2 lbs, 11.43 kgs

Materials of Construction Coil Construction

• Copper voice coil

Coil Former

• Polyimide former

Magnet Composition

• Ferrite magnet

Core Details

• Vented and extended core

    Basket Materials

• Die-cast aluminum basket

Cone Composition

• Paper cone

Cone Edge Composition

• Cloth cone edge

Dust Cap Composition

• Solid composition paper dust cap
