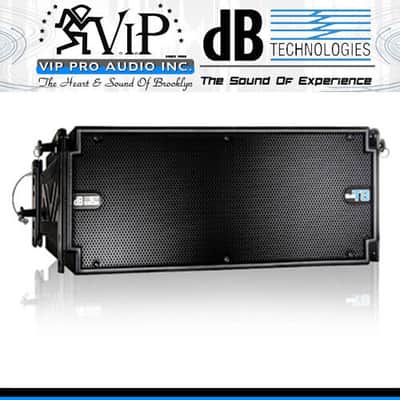

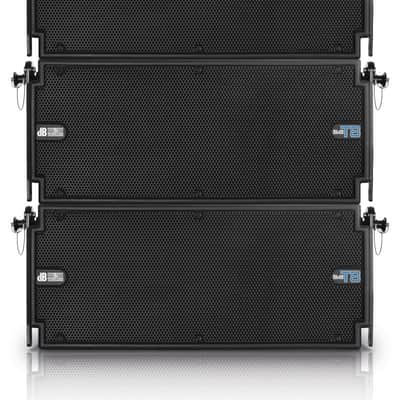

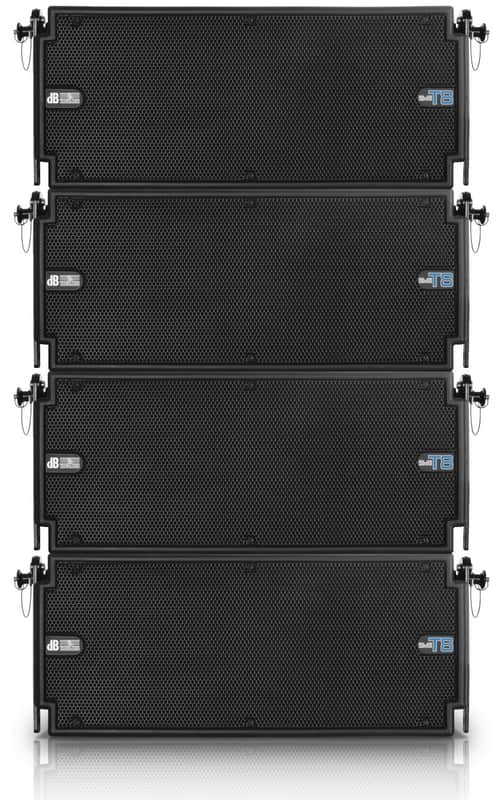

4x DB Technologies DVA T8 3-Way Active Line Array 8" Woofer / 6.5" Mid / 1" Horn 1400W

DB Technologies DVA-T8

The most advanced incarnation of a string of successful line array systems that started with the DVA T4 and enhanced with DVA T12. Hard to believe that something so petite succeded in packing such a mighty punch.

Features

• 3-WAY ACTIVE SPEAKER
• 700W RMS DIGITAL POWER AMP
• HIGH-END 56-BIT DSP ON BOARD
• 96KHZ SAMPLING RATE
• NETWORK READY WITH AN INTEGRATED RDNET PORT
• ACOUSTICALLY COMPATIBLE WITH DVA T12
• MACHANICALLY COMPATIBLE WITH DVA T12

DVA T8 is a 3-way module equipped with a 8” bass reflex neodymium woofer, 1 horn loaded 6.5” midrange with a 2” voice coil and phase plug device, and two 1”drivers with constant directivity horn. These components have been optimally arranged to obtain a uniform 100° by  15° coverage per module. DVA T8 features a Class D 700 W RMS Digipro G2 digital amplifier and is capable to reach up to 132 dB SPL.

• The system is  equipped with a RDNET port which allows the system to be controlled and monitored remotely in real-time through the use of dBTechnologies Network control software.
• Thanks to a rotary on the module’s rear panel, it is possible to select one among 9 different preset options plus a personal setting which can be saved.
• This way,  users adapt the module’s frequency response to aiming distance and to coupling with other modules within the same array, thus optimizing the sound in a consistent and balanced way, without the use of any external processors.
• The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.
• The reinforced polypropylene box, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: in facts, each module of DVA T8 weights a mere 14,2 kg (31,3 lbs).
• The unique feature of the DVA T series is the mechanical and acoustic compatibility between line array modules of the same family. This feature guarantees a great versatility in terms of both using and configuring the products.


Tech specs / Technical Data

• Speaker Type: 3-Way Active Line Array Module

Acoustical data

• Frequency Response [+/- 3dB]: 66 - 18.000 Hz
• Max SPL: One Unit: 132 dB
• HF: 2x1 "
• Voice Coil HF: 1.4 "
• Directivity: 100x15 ° Single unit
• MF: 1x 6.5 "
• Voice Coil MF: 2 "
• LF: 8 "
• Voice Coil LF: 2.5 "

Amplifier

• Amp Technology: Digipro® G2
• Amp Class: Class D
• HF Amp: 175 W RMS
• MF Amp: 175 W RMS
• LF Amp: 350 W RMS
• Cooling: Convection

Processor

• Controller: DSP 56 bit with double precision filters
• AD/DA Converter: 24 bit/96 kHz
• System Presets: 9, (8xHF and Low-mid correction)
• Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
• Crossover Frequency MF-HF: 1900 Hz
• Slope MF-HF: 24 dB/Octave
• Crossover Frequency LF-MF: 400 Hz
• Slope LF-MF: 24 dB/Octave

Input / Mechanics

• Signal Input: 1x XLR fem, Bal.
• Signal Output: 1x XLR male, Bal.
• Network: RDnet remote control RJ45 connector IN/OUT
• Power Socket: 1x Powercon In 1x Powercon Out
• Voltage Range: 90 - 240 V
• Housing: Polypropylen PP Metal reinforced
• Housing Design: Trapezoidal 15°
• Rain Cover: Included
• Rigging Points: Integrated rigging hardware
• Width: 580 mm (23.2 in)
• Height: 240 mm (9.6 in)
• Depth: 327 mm (13.08 in)
• Weight: 14,2 kg (31.3 lbs)
