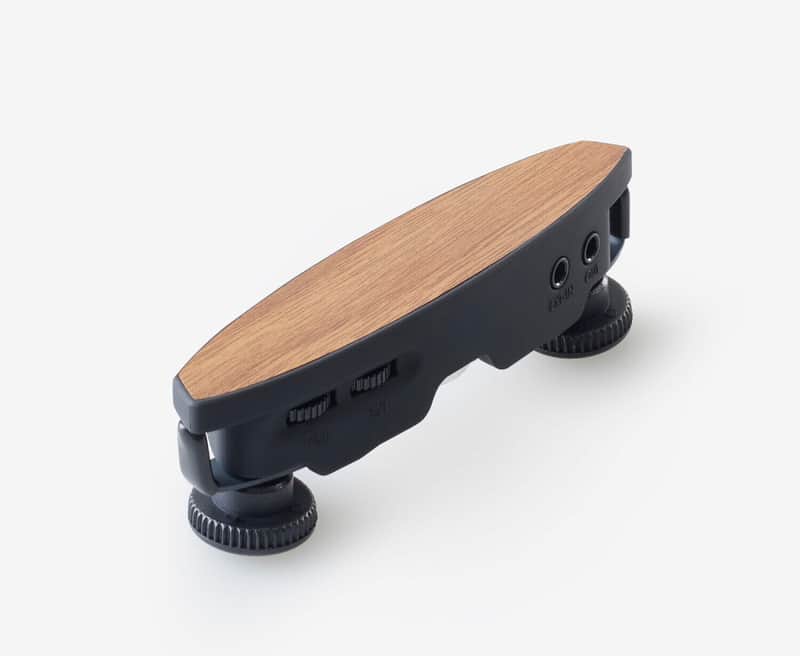

Schertler M-AG6 High-End Acoustic Guitar Soundhole Multiple Coil Magnetic Pickup - Light Wood

MAGNETICO AG6 is a compact, lightweight pickup for acoustic guitar, designed to fit inside the instrument’s soundhole. It has a master volume control and a volume control for a separate external input (EXT IN). Sound from both inputs can be blended to create exactly the right effect for each individual performance or recording.

MAGNETICO AG6 uniquely combines high-end Class-A SCHERTLER electronics with active multiple coil technology. This results in fast transient behavior, flat frequency response and a full rich sound across the entire range of the instrument.

The pickup is supplied with an internal jack cable for fixed installation on the instrument and a Lithium 2032 battery. An external jack cable is available separately.

Versions: Black, Light Wood (LW), Dark Wood (DW)

Technical Specification

Transducer type

Magnetic multicoil active soundhole pickup

Output impedance (@ 1 kHz)

5 kΩ

EXT IN impedance

ca. 10 kΩ

Frequency Response (@ ±3dB) - filtered*

0 to 40 kHz

Dynamic range

68 dB

Battery type

Lithium 3 V CR2032

Playing hours

c.a. 120 hours

Built in preamp

Yes all Class-A

External accessory

Compatible with S-MIC-M and DYN-AG6

For fixed installations

Yes

Removable

Yes

Connection

1/4" jack unbalanced output

Cable Length

internal cable supplied

Minimum sound-hole dimension

9 cm
