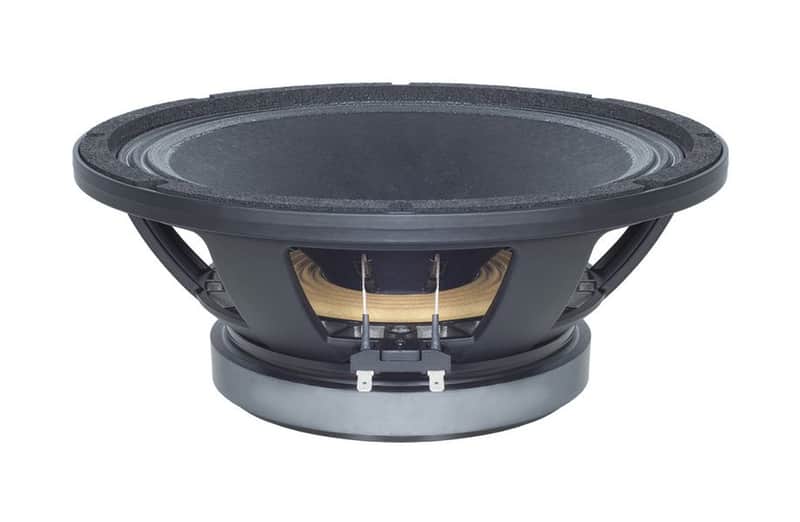

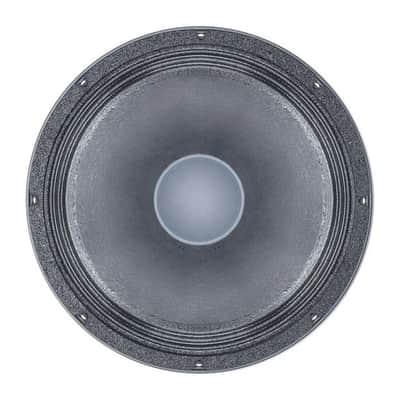

B&C 12" 350 Watts 8 Ohms Ferrite Magnet Woofer - 12MH801-8

Overview

The B&C 12MH801-8 is a powerful 12-inch ferrite magnet woofer designed to deliver exceptional performance in professional audio applications. With a continuous program power capacity of 700 watts and a sensitivity of 100 dB, this woofer can handle high power levels while producing clear and dynamic sound. The aluminum voice coil with a diameter of 76 mm (3 inches) and the aluminum demodulating ring contribute to its low distortion figure, ensuring accurate and precise audio reproduction across the frequency range of 55 Hz to 5000 Hz. The radial cone shape and accordion surround design further enhance the woofer's performance.

With its rugged construction, the 12MH801-8 is built to withstand the demands of live sound reinforcement and studio environments. Its nominal impedance of 8 ohms and minimum impedance of 6.3 ohms make it compatible with a variety of audio systems and amplifiers. The woofer's compact size, with an overall diameter of 316 mm (12.44 inches) and a depth of 135 mm (5.31 inches), makes it easy to mount in various speaker enclosures. Whether used in concert sound systems, stage monitors, or studio monitors, the B&C 12MH801-8 is an excellent choice for professional audio enthusiasts seeking reliable and high-quality sound reproduction.

Features

• 700 W continuous program power capacity
• 76 mm (3 in) aluminum voice coil
• 55 - 5000 Hz response
• 100 dB sensitivity
• Aluminum demodulating ring allows a very low distortion figure

Specifications

• Nominal Diameter: 320 mm (12.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.3 Ω
• Nominal Power Handling: 350 W
• Continuous power handling: 700 W
• Sensitivity (1W/1m): 100.0 dB
• Frequency Range: 55 - 5000 Hz
• Voice Coil Diameter: 76 mm (3.0 in)
• Winding Material: Aluminum
• Former Material: Glass Fibre
• Winding Depth: 16.0 mm (0.63 in)
• Magnetic Gap Depth: 8.0 mm (0.31 in)
• Flux Density: 1.45 T

Design

• Surround Shape: Accordion
• Cone Shape: Radial
• Magnet Material: Ferrite
• Spider: Single
• Pole Design: T-Pole
• Woofer Cone Treatment: None

Mounting and Shipping Info

• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 296 mm (11.6 in)
• Baffle Cutout Diameter: 282.0 mm (11.1 in)
• Depth: 135 mm (5.31 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Air Volume Occupied by Driver: 3.3 dm3 (0.12 ft3)
• Net Weight: 7.4 kg (16.31 lb)
• Shipping Units: 1
• Shipping Weight: 8.3 kg (18.3 lb)
• Shipping Box Dimensions: 360x360x200 mm (14.17x14.17x7.87 in)
