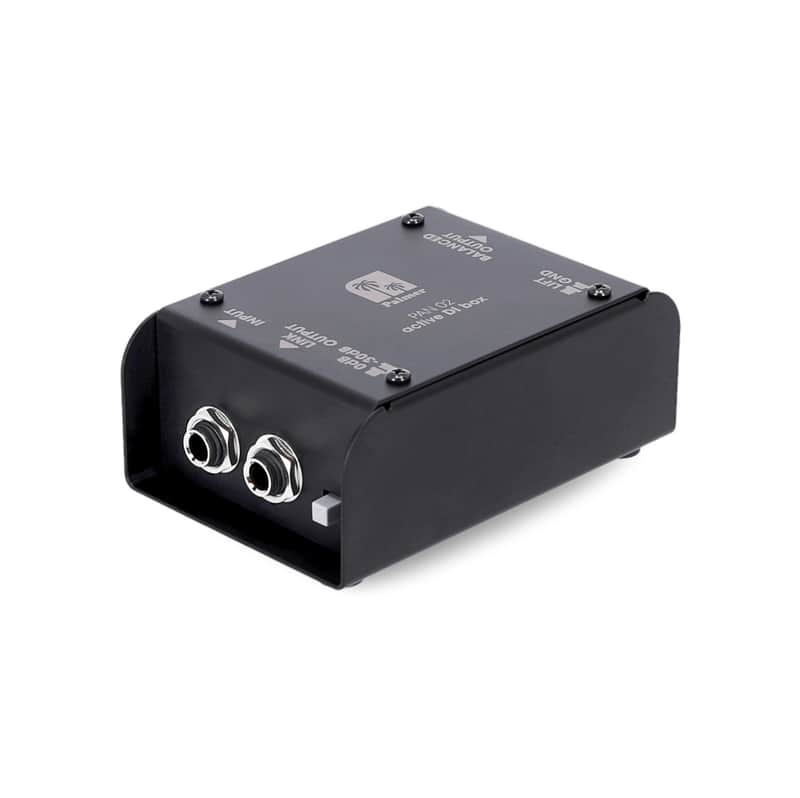

Palmer PAN 02 Active DI Box

Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

Product typeDI Boxes

Type active

Channels1

Inputs1

Input connectors6.3 mm jack

Max. input level+ 45 dBu

Input impedance(@ 60 Hz) 1 M Ohm(s)

Input pad0 / -30 dB

Outputs1

THRU outputs/channel

1 Output connectors6.3 mm jack, XLR

Max. output level+ 10 dBu

Output impedance600 Ohm(s)

Frequency response10 - 20000

Transformer balanced Yes

Ratio1 : 1

Controls attenuator, ground lift

Operating voltage+48 V phantom power, 9 V block

Power consumption3.8 mA (9V), 4 mA (48V)

 Cabinet materialsheet steel

Cabinet surface

Powder coated Width110 mm Depth73 mm Height42 mm Weight0,353 kg
