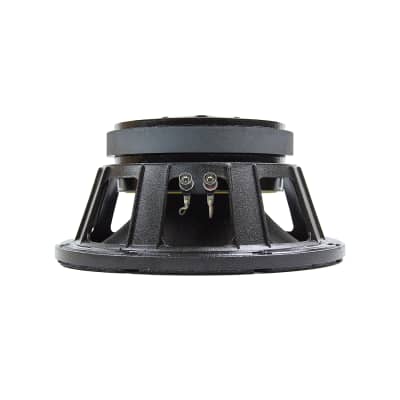

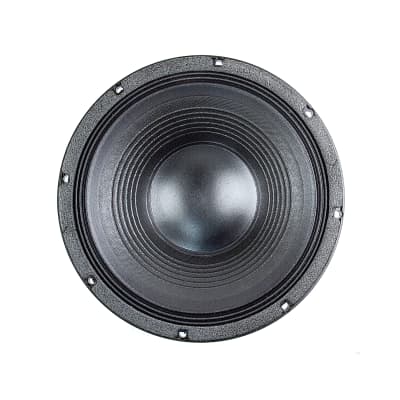

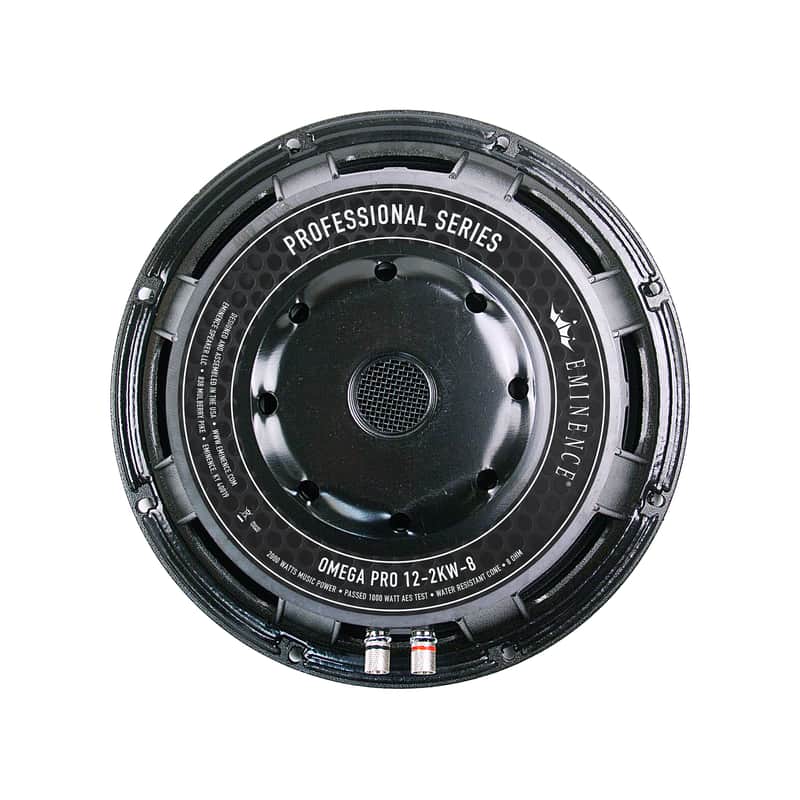

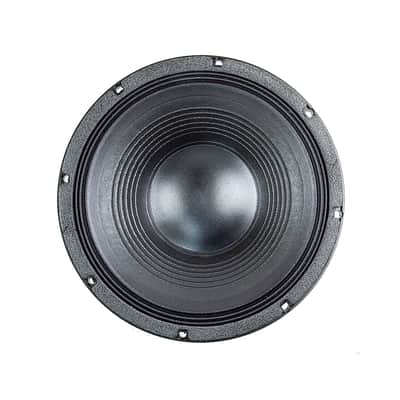

Eminence Omega Pro-12-2KW-8 2022

What’s inside the Eminence Omega Pro 12-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 12-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.

 Here’s why you need the Eminence Omega Pro 12-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. The Omega Pro 12-2KW-8 gets low in those small vented boxes and with 4,000W (peak) AES power handling potential to ensure they get loud too.

Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.

Features include:

• 2000 W Program Power
• 4,000W (peak) AES
• 12” Nominal Diameter
• 8 Ω
• Water Resistant Cone and Dust-cap

SPECIFICATION

Nominal Basket Diameter             12", 304.8 mm

Nominal Impedance*      8 Ω

Power Rating*

Program Power  2000 W

Watts    1000 W

Resonance          48.14 Hz

Usable Frequency Range 42 Hz - 1.6 kHz

Sensitivity*          93.33 dB

Magnet Weight  109 oz.

Gap Height          0.375", 9.5 mm

Voice Coil Diameter         4", 101.6 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 48.14 Hz

DC Resistance (Re)           6.04 Ω

Coil Inductance (Le)         1.13 m H

Mechanical Q (Qms)        14.88

Electromagnetic Q (Qes) 0.40

Total Q (Qts)       0.39

Compliance Equivalent Volume (Vas)         49.55 liters / 1.75 cu.ft.

Peak Diaphragm Displacement Volume (Vd)           387 cc

Mechanical Compliance of Suspension (Cms)         0.12 mm/N

BL Product (BL)  20.40 T-M

Diaphragm Mass Inc. Airload (MMs)          91.96 grams

Efficiency Bandwidth Product (EBP)           119.2

Maximum Linear Excursion (Xmax)             7.1 mm

Surface Area of Cone (Sd)              545.4 cm2

Maximum Mechanical Limit (Xlim)              19.6 mm

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed   N/a

Vented  31.15-87.78 liters / 1.1-3.1 cu.ft.

Driver Volume Displaced 183 cu.in. / 3 liters

Overall Diameter              12.38", 314.45 mm

Baffle Hole Diameter       11.06", 280.92 mm

Front Sealing Gasket        Yes

Rear Sealing Gasket         No

Mounting Holes Diameter             0.28", 7.112mm

Mounting Holes B.C.D.    11.7", 297.18mm

Depth    6.04", 153.416 mm

Net Weight         21.8 lbs, 9.89 kg

Shipping Weight 23.8 lbs, 10.8 kgs

MATERIALS OF CONSTRUCTION

Coil Construction              Inside/outside copper voice coil

Coil Former         Fiberglass former

Magnet Composition       Ferrite magnet

Core Details        Vented and extended core

Backplate Details              Vented

Basket Materials               Die-cast aluminum basket

Cone Composition           Water-resistant treated paper cone

Cone Edge Composition Cloth cone edge

Dust Cap Composition     Water-resistant treated dust cap
