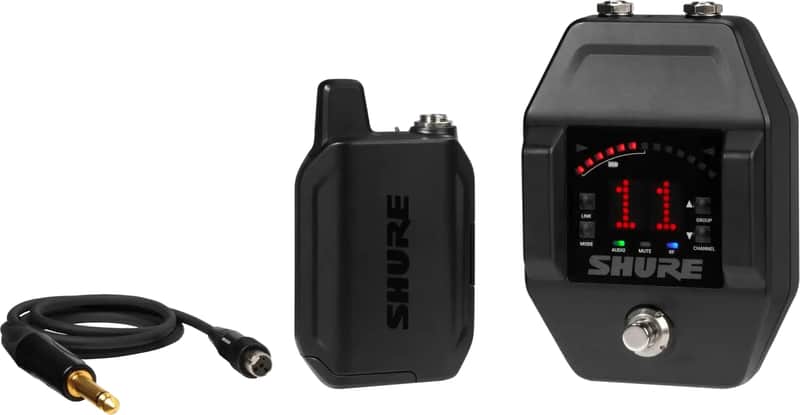

The Shure GLXD16+ is a digital wireless guitar system that offers reliable performance and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your application at a typical range of up to 100' indoors and 65' outside. This version of the GLXD16+ is configured with a bodypack transmitter and the WA305 guitar cable, a 3' instrument cable with a 4-pin mini connector (TA4F) on one end and a gold-plated Neutrik 1/4" TS connector on the other. The rugged, metal chassis on the GLXD1+ transmitter offers an ergonomic design and a comfortable fit with a convenient on/off switch that can be operated by feel. The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components. The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal.

Product Features

• WA305 Guitar Cable

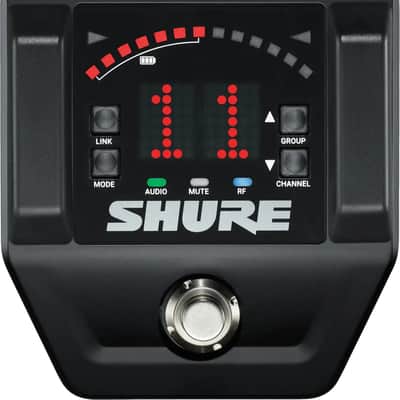

• Stompbox-Style Pedal Receiver
• Pedalboard-Ready for Wired Tuner Use
• Auto Scans 2.4 and 5.8 GHz Frequencies
• Easy Setup with Auto Pairing
• 208.5 MHz Total Bandwidth
• Fixed Face-Plate Antennas

Technical Specifications

• Simultaneous Channels: 11
• System Frequency Range: 2.4 GHz, 5.8 GHz
• System Operating Distance: 200ft, Line-of-sight
• Transmitter Battery Life: 12 hours
• System Frequency Response: 2.4 GHz, 5.8 GHz
• System Channel Selection: Auto
• Transmitter Form Factor: Bodypack
• Transmitter Dynamic Range: 120dB (A weighted)
• Transmitter Battery Type: 3.7V Rechargeable Lithium-Ion
• Transmitter Connector: 1 x TA4M
• Receiver Display: LCD
• Receiver Outputs: 1 x 1/4"
• Receiver Power Source: 12V DC adapter (included)
• Frequency Band: Z3 Band
• Features: Wireless
