CARME-12MM | CARME Series 12" Multipurpose Loudspeaker/Monitor, Coaxial Compression Driver for Installation, Live Sound, Karaoke, Bar, Church, Black

The Sound Town CARME Series CARME-12MM is a passive 350 watts multipurpose loudspeaker. Equipped with a customized high-efficiency coaxial driver, which includes one 12" woofer and one 1-3/8" compression driver at the center, it delivers clear and stellar sound with high sensitivity. Characterized by smooth, flat frequency response coupled with low distortion, the even conical coverage is great for sound feedback on your stage.

The CARME-12MM has a compact design featuring a low profile that does not visually dominate the stage. With 100 degrees conical coverage angle, it can be used as a full-range main speaker, a floor monitor, or a wall-mounted installation speaker by rotating the cabinet. With the Sound Town U bracket (sold separately), the CARME-12MM can be surface mounted against a wall, ceiling or corner, offering great flexibility for various applications. Even better, with the Sound Town speaker stand (sold separately), it’s ideal perfect for live stages, churches, bars, restaurants, meeting rooms, auditoriums and more.

FEATURES

• MULTI-PURPOSE: The professional loudspeaker offers a 100-degree conical coverage angle, making it versatile for use as a full-range main speaker, a floor monitor, or a wall-mounted installation speaker. The cabinet can be easily rotated to adjust its positioning. With two SPEAKON input connectors, it is easy to connect it with your PA system.

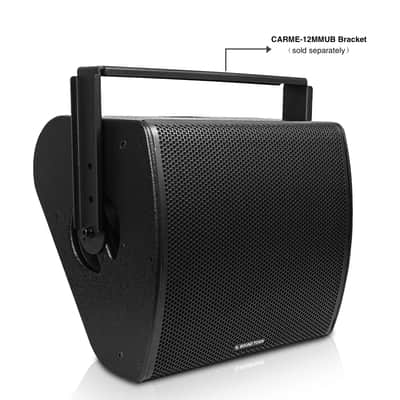

• MULTI-POSITION: With optional CARME-12MMUB wall mount bracket and STSD-71B speaker stand, it is perfect for both permanent or portable applications.
• PREMIUM SOUND AND EVEN COVERAGE: With a customized high-efficiency coaxial driver, which includes one 12" woofer and one 1-3/8" compression driver at the center, the CARME-12MM delivers remarkable sound performance.
• HIGH SENSITIVITY IN A COMPACT DESIGN: Its high sensitivity allows you to achieve a high output level using a small amplifier. It handles 350W RMS / 700W program output (8-ohm), and its low profile cabinet design ensures it doesn’t visually dominate stages or installation venues.
• STURDY CONSTRUCTION: The textured and painted plywood provides great protection and stability with heavy-duty metal grille. The small form factor makes it easy to transport.

SPECIFICATIONS

Specifications

Model CARME-12MM Active / Passive Passive Frequency Range 48 Hz - 20 kHz Frequency Response 52 Hz - 20 kHz Sensitivity 99 dB SPL Max 124 dB Dispersion 100° conical Configuration 12" multipurpose loudspeaker Transducer LF: 1 x 12" woofer
HF: 1 x 1-3/8" compression driver (coaxial) Impedance 8Ω Power Handling 350W RMS / 700W Program / 1400W Peak Cabinet Construction High-grade 100% birch plywood Mounting CARME-12MMUB U bracket / stand mount (sold separately) Finish Texture coating  Grill & Rigging Component Steel with anti-corrosion coat Amplifier -- Input Speakon
Output Speakon Control -- Indicator -- Voltage -- High Frequency Driver Parts# -- Low Frequency Woofer Parts#

Dimension & Weight

Product Width (in.) 19.5" Package Width (in.) 19.9" Product Height (in.) 16.9" Package Height (in.) 22.8" Product Depth (in.) 14.3" Package Depth (in.) 17.2" Product Weight (lb.) 39.6 lbs Package Weight (lb.) 43.5 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year
