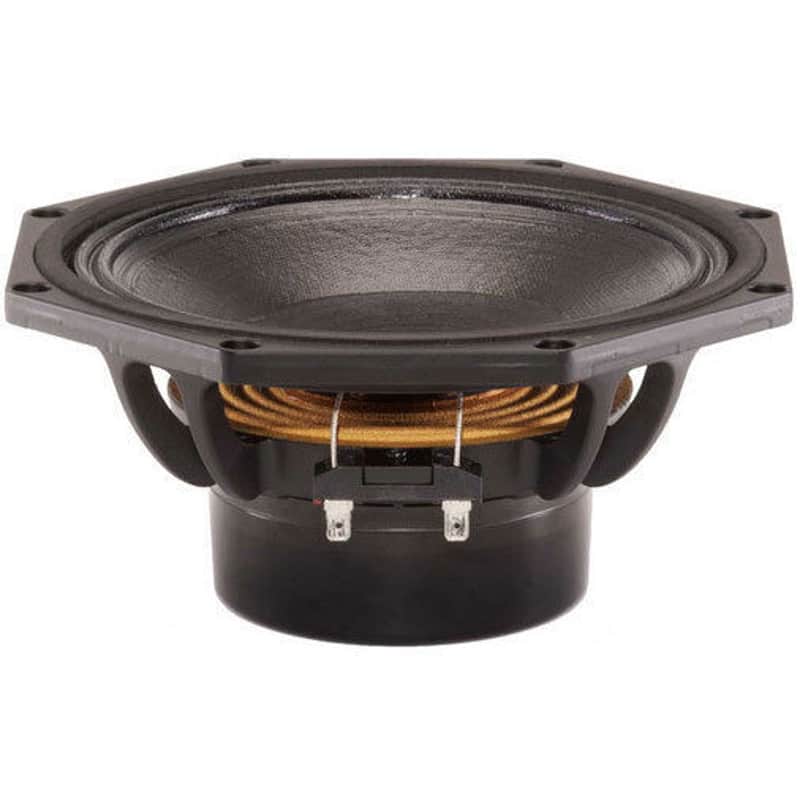

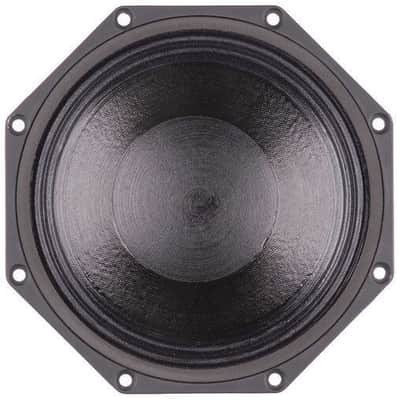

B&C 8NDL64 8" Neodymium Woofer 700 Watts Pro Mid-Bass Speaker 16-Ohms

B&C 8NDL64 8" Neodymium Woofer 700 Watts Pro Mid-Bass Speaker 16-Ohms

• 700 W Continuous power handling

• 2.5 in (64 mm) Voice coil diameter

• Neodymium Inside Slug Magnet material

Specifications

Type of speaker

• 8″

Nominal Diameter mm

• 200 mm

Impedance Ohm

• 16 Ω

Power Handling

• 700 W

Frequency range

• 80 – 4000 Hz

Sensitivity dB

• 97.0

Magnet Material

• Neodymium Inside Slug

Brand

• B&C SPEAKERS

Type

• speaker

Nominal Diameter

• 200 mm (8.0 in)

Nominal Impedance

• 16 Ω

Minimum Impedance

• 14.4 Ω

Nominal Power Handling

• 350 W

Continuous Power Handling

• 700 W

Sensitivity

• 97.0 dB

Frequency Range

• 80 – 4000 Hz

Winding Material

• Copper

Former Material

• Glass Fibre

Winding Depth

• 14.0 mm (0.55 in)

Magnetic Gap Depth

• 8.0 mm (0.31 in)

Flux Density

• 1.25 T

Surround Shape

• Double Roll

Cone Shape

• Exponential

Spider

• Single

Pole Design

• T-Pole

Woofer Cone Treatment

• WP Waterproof Front Side

Recommended Enclosure

• 10.0 dm3 (0.35 ft3)

Recommended Tuning

• 85 Hz

Resonance Frequency

• 73 Hz

Re

• 11.2 Ω

Qes

• 0.25

Qms

• 6.8

Qts

• 0.24

Vas

• 11.8 dm3 (0.42 ft3)

Sd

• 220.0 cm2 (34.1 in2)

η₀

• 1.8 %

Xmax

• ± 4.5 mm

Xvar

• ± 5.5 mm

Mms

• 27.0 g

Bl

• 24.0 Txm

Le

• 1.03 mH

EBP

• 292 Hz

Overall Diameter

• 225 mm (8.8 in)

Bolt Circle Diameter

• 210 mm (8.3 in)

Baffle Cutout Diameter

• 187.0 mm (7.4 in)

Depth

• 95 mm (3.74 in)

Flange and Gasket Thickness

• 10 mm (0.39 in)

Air Volume Occupied by Driver

• 1.5 dm3 (0.05 ft3)

Net Weight

• 2.8 kg (6.17 lb)

Recone kit

• RCK008NDL6416
