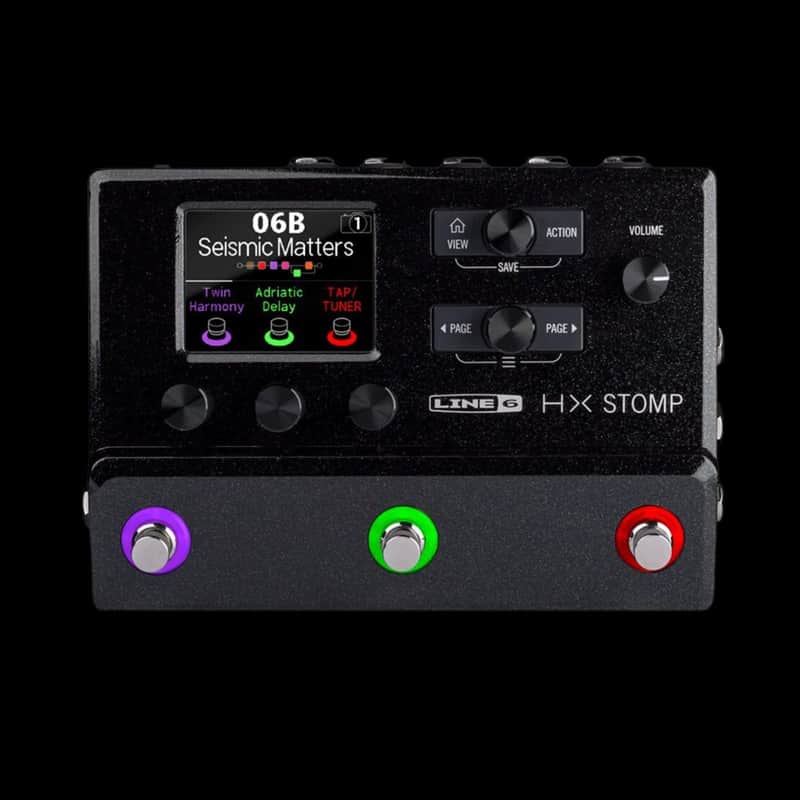

The HX Stomp™ amp and effects processor may be used as a “super stompbox,” a backup or travel rig, an add-on tone expander with other modelers, an audio interface—or a complete guitar or bass rig. Although compact in size, it delivers the same professional-grade sound quality and authentic HX® Modeling found in our market-leading Helix® processors.

• Utilizes the same DSP chip and HX Modeling as Helix
• 3 capacitive-sensing footswitches with color-coded LED rings facilitate ease of use and fast editing
• Split/parallel signal paths provide flexible routing for both simple and complex signal chains
• True bypass switching eliminates tone suck on your pedalboard
• MIDI capability for traditional switchers and advanced performance integration

• Pedal Type:Multi-FX with USB Interface
• Analog/Digital:Digital
• Presets:126 (42 banks x 3 presets), 3 Snapshots per preset
• Number of Effects:200+ (Helix & Legacy combined), up to 8 simultaneous FX
• Effects Types:Distortion, Delay, Reverb, Modulation, Pitch shift, Synth filter, Compressor/Limiter, Wah
• Amp Modeling:80+ Amps, 60+ Cabinets, 3D Mic Placement (HX Edit 3.50 app)
• Impulse Response:Dual IR Block, 3rd Party IR Support, Store up to 128 IRs
• Looper:60 seconds (mono), 30 seconds (stereo) ; 1-switch Looper, Shuffling Looper
• Inputs:2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, aux in)
• Outputs:2 x 1/4" (L/mono,R), 1 x 1/4" (stereo send)
• MIDI I/O:In, Out/Thru
• USB:1 x Type B (8 x 6)
• Headphones:1 x 1/4"
• Other I/O:1 x 1/4" TRS (expression/footswitch)
• Bypass Switching:Switchable: Analog, DSP
• Features:450MHz SHARC DSP Processor
• Software:HX Editor (librarian, IR loader)
• Compatibility:Windows, macOS
• Power Source:9V DC power supply (included)
• Height:2.6"
• Width:7.01"
• Depth:4.96"
• Weight:1.75 lbs.
• Manufacturer Part Number:99-060-2405
