ALM Busy Circuits MEGA-TANG

The ALM Mega-Tang is a four-channel linear VCA and stereo mixer.

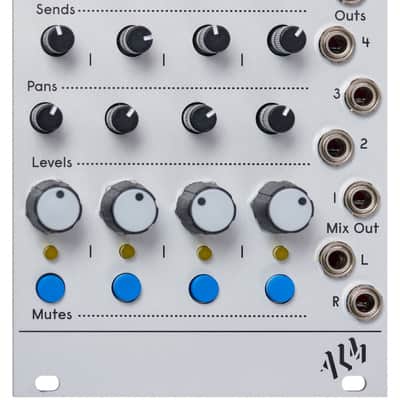

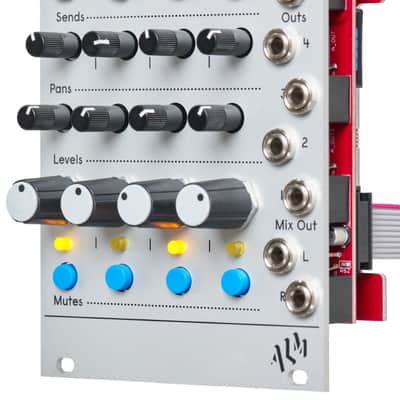

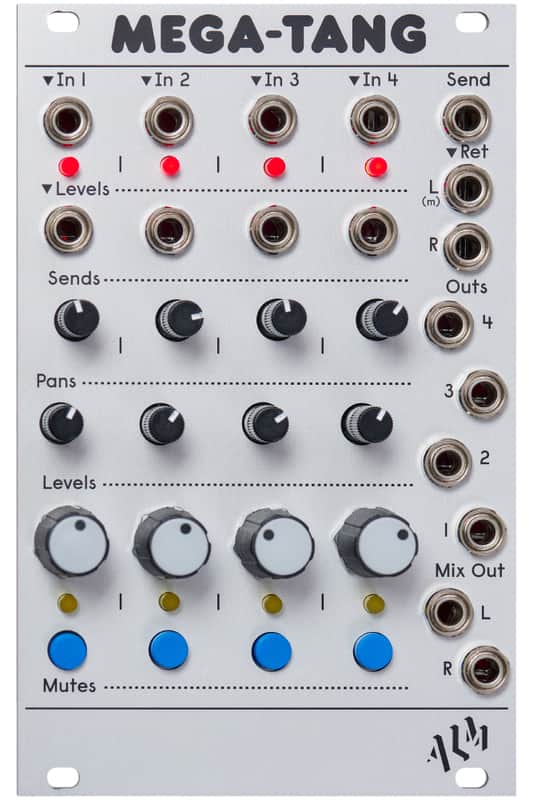

Each of the four Mega-Tang channels offers a heavy dose of connectivity to send your signals through the Eurorack orbit. There is one audio and one CV input per channel, as well as the possibility to control the panning and the channel level via a potentiometer. In addition, there is the option to dial in a send-return signal per channel and to switch the channels on or off individually via a push button. Red LEDs at the individual inputs indicate overload, while yellow LEDs at the bottom show whether a channel is muted or not. Rounding out the module is the option to tap the four channels individually, or as a stereo sum.

Features:

4-channel linear VCA and stereo mixer
Individual control of channel activity, volume, panning and effect amount per channel
Input for CV signals per channel
Four individual outputs
Output for stereo sum (L/R)
HE: 3
TE: 16
Depth: 32
Power consumption +12V: 125
Power consumption -12V: 125
