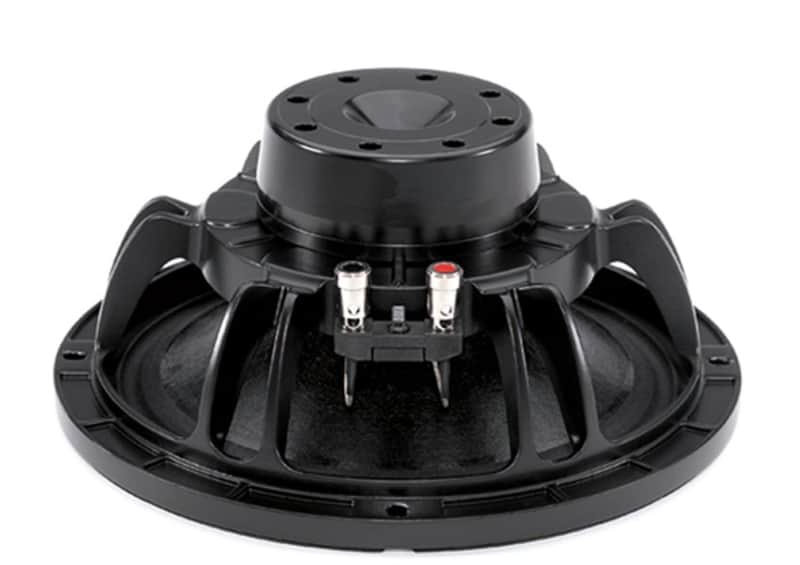

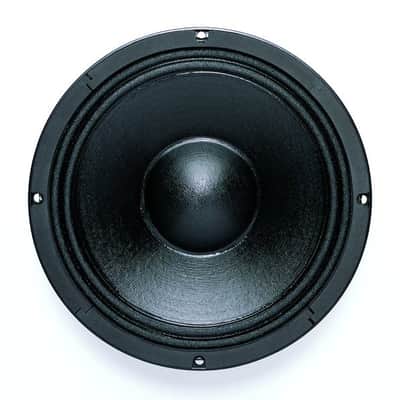

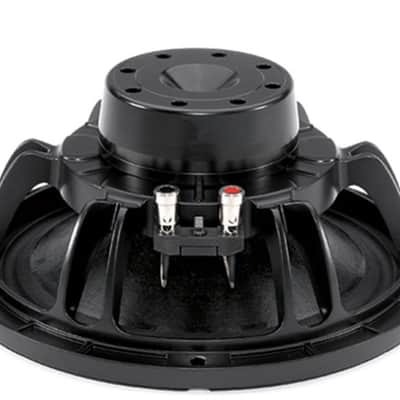

B&C 10" 300W 8 Ohm Neodymium Midrange Woofer Speaker - 10NW64-8

Overview

The B&C Speakers 10NW64 10" speaker is lightweight, powerful, and versatile. Its midrange efficiency and clarity make it a great choice for professional midbass or midrange applications, but its bass capabilities mark it as a dynamic, punchy woofer in compact 2-way speaker systems. The 10NW64 will deliver great performance in sealed, bass reflex, or horn loaded enclosures.

Features

• 600 W continuous program power capacity
• 64 mm (2.5 in) copper voice coil
• 60 - 2500 Hz response
• 96 dB sensitivity
• Neodymium magnet allows a very light yet powerful motor assembly
• Shorting copper cap for extended HF response
• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter: 10"
• Power Handling (RMS): 300 Watts
• Power Handling (max): 600 Watts
• Impedance: 8 ohms
• Frequency Response: 50 to 2,500 Hz
• Sensitivity: 96 dB 1W/1m
• Voice Coil Diameter: 2.5"
• Thiele-Small Parameters:
• Resonant Frequency (Fs): 50 Hz
• DC Resistance (Re): 5.2 ohms
• Voice Coil Inductance (Le): 0.47 mH
• Mechanical Q (Qms): 4.5
• Electromagnetic Q (Qes): 0.27
• Total Q (Qts): 0.26
• Compliance Equivalent Volume (Vas): 0.95 ft.³
• BL Product (BL): 17.5 Tm
• Diaphragm Mass Inc. Airload (Mms): 47g
• Maximum Linear Excursion (Xmax): 8 mm
• Surface Area of Cone (Sd): 320 cm²
• Materials of Construction:
• Cone Material: Paper
• Surround Material: Cloth
• Voice Coil Wire Material: Copper
• Voice Coil Former: Fiberglass
• Magnet Material: Neodymium
• Mounting Information:
• Overall Outside Diameter: 10.3"
• Baffle Cutout Diameter: 8.8"
• Depth: 4.4"
• Number of Mounting Holes: 4
• Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion):
• Sealed Volume: 0.09 ft.³
• Sealed F3: 164 Hz
• Vented Volume: 0.2 ft.³
• Vented F3: 106 Hz
