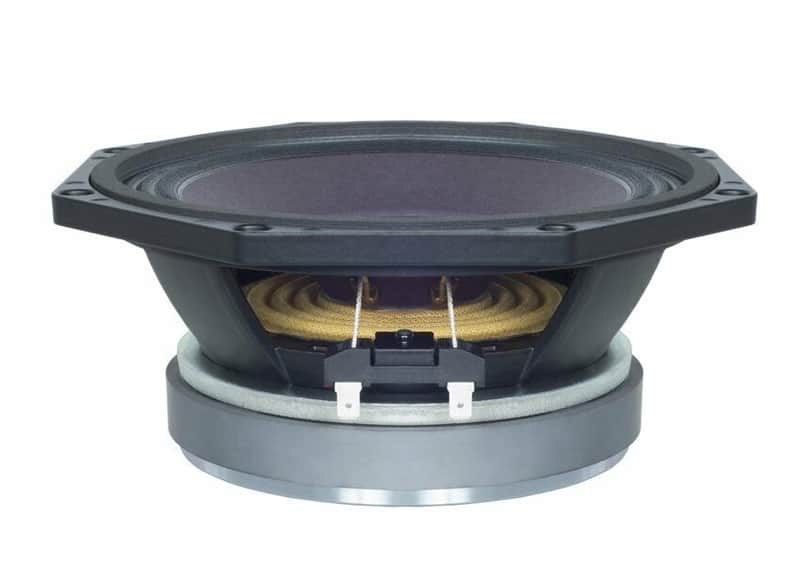

B&C 8" LF Woofer Driver w/ 8 Ohms Impedance & 400W Ferrite Magnet - 8PE21-8

Overview

The B&C 8PE21-8 is an 8" LF woofer driver designed for professional audio applications that require reliable performance and high power handling. With a continuous program power capacity of 400W, this woofer delivers powerful and accurate sound reproduction.

Featuring a 51mm (2 in) copper voice coil, the 8PE21-8 ensures efficient power handling and thermal dissipation. Its frequency response ranges from 90Hz to 5000Hz, allowing for clear reproduction of mid-range frequencies. With a sensitivity rating of 98dB, this woofer produces loud and dynamic sound even at lower power levels.

The woofer driver is equipped with a triple roll surround and a radial cone shape, providing improved linearity and reduced distortion. Its magnet is made of ferrite, offering a strong magnetic field for enhanced performance. The woofer also features a single spider and a straight pole design, ensuring stability and accurate cone movement.

With an overall diameter of 225mm (8.86 in) and a depth of 91mm (3.58 in), the 8PE21-8 is compact and easy to install. It has a net weight of 4.2kg (9.26 lb), making it lightweight and suitable for various audio applications.

The woofer driver comes with a protective shipping box and has a shipping weight of 4.65kg (10.25 lb). It is designed for professional use and offers reliable performance for sound reinforcement systems, stage monitors, and other audio applications where high-quality sound reproduction is required.

Features

• 400 W continuous program power capacity
• 51 mm (2 in) copper voice coil
• 90 - 5000 Hz response
• 98 dB sensitivity

Specifications

• Power Capacity: 400 W continuous program
• Voice Coil Diameter: 51 mm (2 in) copper
• Frequency Response: 90 - 5000 Hz
• Sensitivity: 98 dB
• Surround Shape: Triple Roll
• Cone Shape: Radial
• Magnet Material: Ferrite
• Spider: Single
• Pole Design: Straight Pole
• Woofer Cone Treatment: None
• Overall Diameter: 225 mm (8.86 in)
• Bolt Circle Diameter: 210 mm (8.27 in)
• Baffle Cutout Diameter: 187.0 mm (7.36 in)
• Depth: 91 mm (3.58 in)
• Flange and Gasket Thickness: 11 mm (0.43 in)
• Air Volume Occupied by Driver: 1.2 dm3 (0.04 ft3)
• Net Weight: 4.2 kg (9.26 lb)
• Shipping Units: 1
• Shipping Weight: 4.65 kg (10.25 lb)
• Shipping Box: 255x255x150 mm (10.04x10.04x5.91 in)
