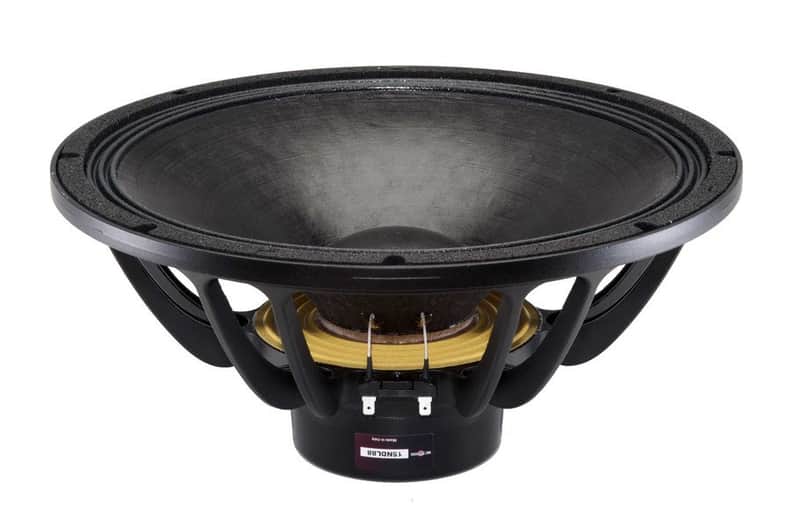

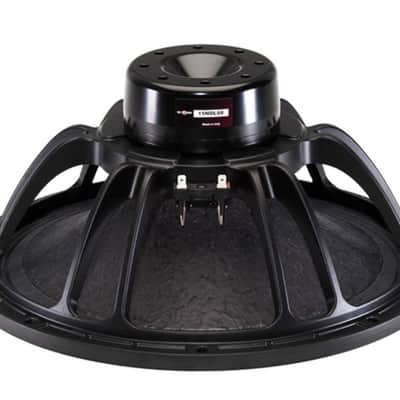

B&C 15" 8 Ohms 1400 Watts Powerful Woofer Speaker - 15NDL88-8

Overview

The NDL88 series is perfectly balanced for the loudspeaker systems of today. Incorporating a high temperature neodymium magnet inside the 3.5” (88mm) voice coil reduces the amount of steel needed in the motor structure, saving cost and weight. Unexpected low frequency output and midrange extension to meet with almost any driver for two way applications is the hallmark of this new performance-oriented woofer line from B&C Speakers. Do more, with less, with the NDL88 series.

Features

• 1400 W continuous program power capacity
• 88 mm (3.5 in) aluminum voice coil
• 45 - 3000 Hz response
• 99 dB sensitivity
• Ventilated voice coil gap for reduced power compression
• Double silicone spider with optimized compliance
• Aluminum demodulating ring allows a very low distortion figure

Specifications

• Nominal Diameter: 380 mm (15.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.0 Ω
• Nominal Power Handling: 700 W
• Continuous Power Handling: 1400 W
• Sensitivity: 99.0 dB
• Frequency Range: 45 - 3000 Hz
• Voice Coil Diameter: 88 mm (3.5 in)
• Winding Material: Aluminium
• Former Material: Glass Fibre
• Winding Depth: 21.0 mm (0.85 in)
• Magnetic Gap Depth: 10.0 mm (0.39 in)
• Flux Density: 1.05 T
• Surround Shape: Triple Roll
• Cone Shape: Exponential
• Magnet Material: Neodymium Inside Slug
• Spider: Double Silicone
• Pole Design: T-Pole
• Woofer Cone Treatment: WP Waterproof Front Side
• Recommended Enclosure: 125.0 dm3 (4.41 ft3)
• Recommended Tuning: 45 Hz
• Overall Diameter: 393 mm (15.47 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 354.0 mm (13.94 in)
• Depth: 177 mm (6.97 in)
• Flange and Gasket Thickness: 13 mm (0.51 in)
• Air Volume Occupied by Driver: 3.5 dm3 (0.12 ft3)
• Net Weight: 4.6 kg (10.14 lb)
• Shipping Weight: 5.9 kg (13.01 lb)
• Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)
