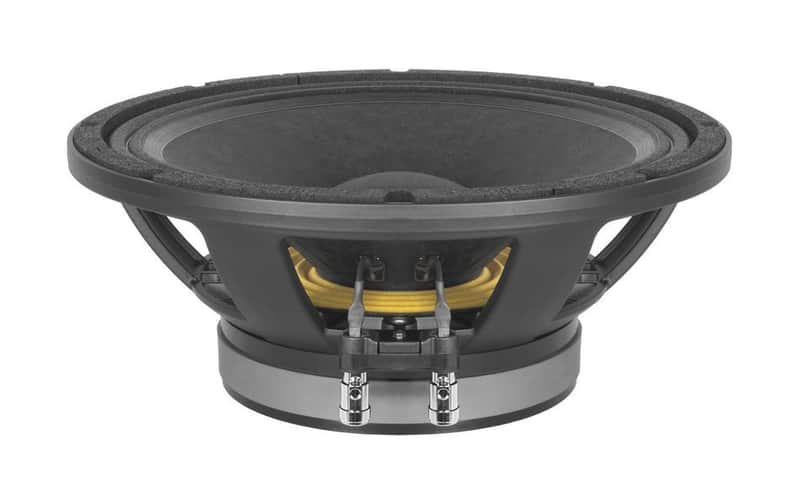

B&C 12" 8 Ohms 700 Watts Woofer Speaker - 12PLB76-8

Overview

Features

• 700 W continuous program power capacity
• 76 mm (3 in) aluminum voice coil
• 50 - 2000 Hz response
• 98.5 dB sensitivity

Specifications

• Nominal Diameter: 12.0 in (320 mm)

• Nominal Impedance: 8 Ω

• Minimum Impedance: 6.4 Ω

• Nominal Power Handling: 1350 W

• Continuous Power Handling: 2700 W

• Sensitivity: 399.0 dB

• Frequency Range: 50 - 2000 Hz

• Voice Coil Diameter: 3.0 in (76 mm)

• Winding Material: Aluminium

• Former Material: Glass Fibre

• Winding Depth: 0.62 in (16.0 mm)

• Magnetic Gap Depth: 0.4 in (11.0 mm)

• Flux Density: 1.05 T
• Overall Diameter: 12.4 in (316 mm)

• Bolt Circle Diameter: 11.6 in (296 mm)

• Baffle Cutout Diameter: 11.1 in (282.0 mm)

• Depth: 5.35 in (136 mm)

• Flange and Gasket Thickness: 0.62 in (16 mm)

• Air Volume Occupied by Horn: 0.12 ft3 (3.3 dm3)

• Net Weight: 16.4 lb (7.4 kg)

• Shipping Units: 1

• Shipping Weight: 18.3 lb (8.3 kg)

• Shipping Box: 14.17x14.17x7.87 in (360x360x200 mm)
