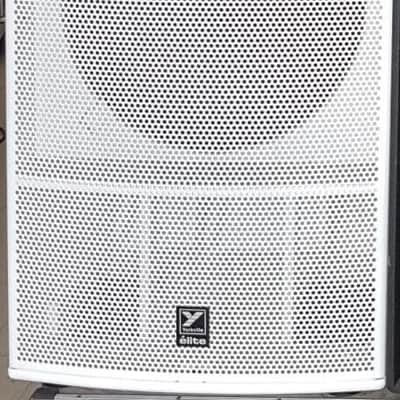

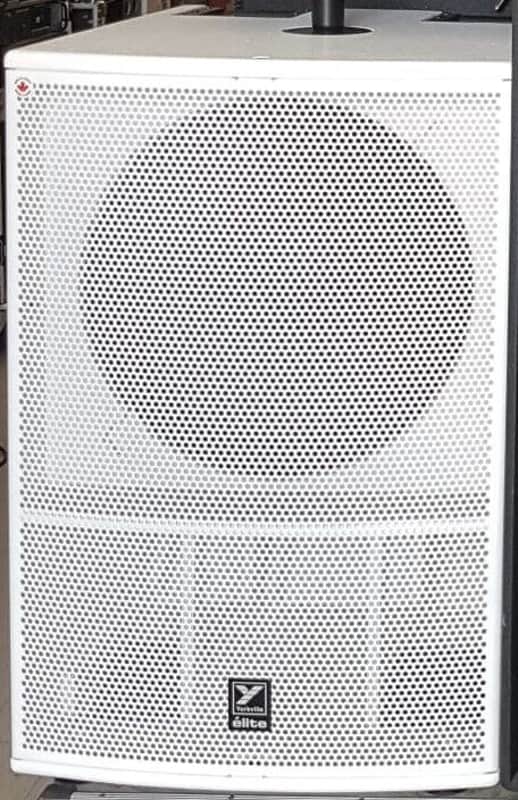

Yorkville ES18P White Active Elite 18" Powered Subwoofer 3200W Amplified DJ Sub

Yorkville ES18P-W White Elite Series 18" 3200 Watts Rear Horn Loaded DJ / Club Subwoofer

Overview

The reputation of elite subwoofers is known industry wide. The next generation of élite subs will not disappoint.

The ES18P is a modern-day update of our flagship 'giant killer', the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We've also added a little-brother to the family, by scaling down the 18" subwoofer design into a 15" platform. The ES15P design dials up the watts and incorporates a custom engineered 15" woofer to produce an astonishing amount of low end output in a 15" subwoofer.

• Next Generation Rear Horn Loaded Powered Subwoofer Design
• Class Leading Output and Bass Response
• Astonishing Output for a 'Car Friendly' 18-inch Subwoofer
• Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
• Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
• Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
• iOS and Android App for Added Subwoofer Control (Coming Soon)
• Made in Canada

Specifications

System Type

• Rear Horn Loaded Subwoofer

Active or Passive

• Active

Program Power (Watts)

• 1600 Watts (3200 Watts Peak)

Max SPL (dB)

• 140dB Peak (134dB Continuous)

Frequency Response (Hz +/- 3dB)

• 43 - 150 (Hz +/- 3dB)

LF Driver(s)

• 18-inch Cast Frame Woofer w/4-inch Voicecoil

Power Consumption (typ/max)

• 120V (4A /4.5A), 230V (2A / 2.3A)

In / Out Connections

• 1 x XLR Input
  1 x XLR Mono Blend Input
  1 x ¼-inch Link Input
  1 x ¼-inch Link Output
  1 x XLR Link Output

Level Controls

• Master

LED Indicators

• Power, Activity, Protection (Clip, X-Max, Temp) &

Other Controls / Features

• Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
  High Frequency Roll-off - 80Hz to 150 Hz

Bar Handles

• 2 x top, 2 x bottom

Pole Mount Adapter (1 3/8"-3.5cm)

• 1 (Top) (1 3/8"-3.5cm)

Enclosure Materials

• 15mm (5/8inch) 11-ply Russian Birch

Covering / Finish

• White Ultrathane Paint

Dimensions (DWH xbackW, inches)

• 24.1 x 22.84 x 34.65

Dimensions (DWH xbackW, cm)

• 61 x 58 x 88

Weight (lbs/kg)

• 137 / 62
